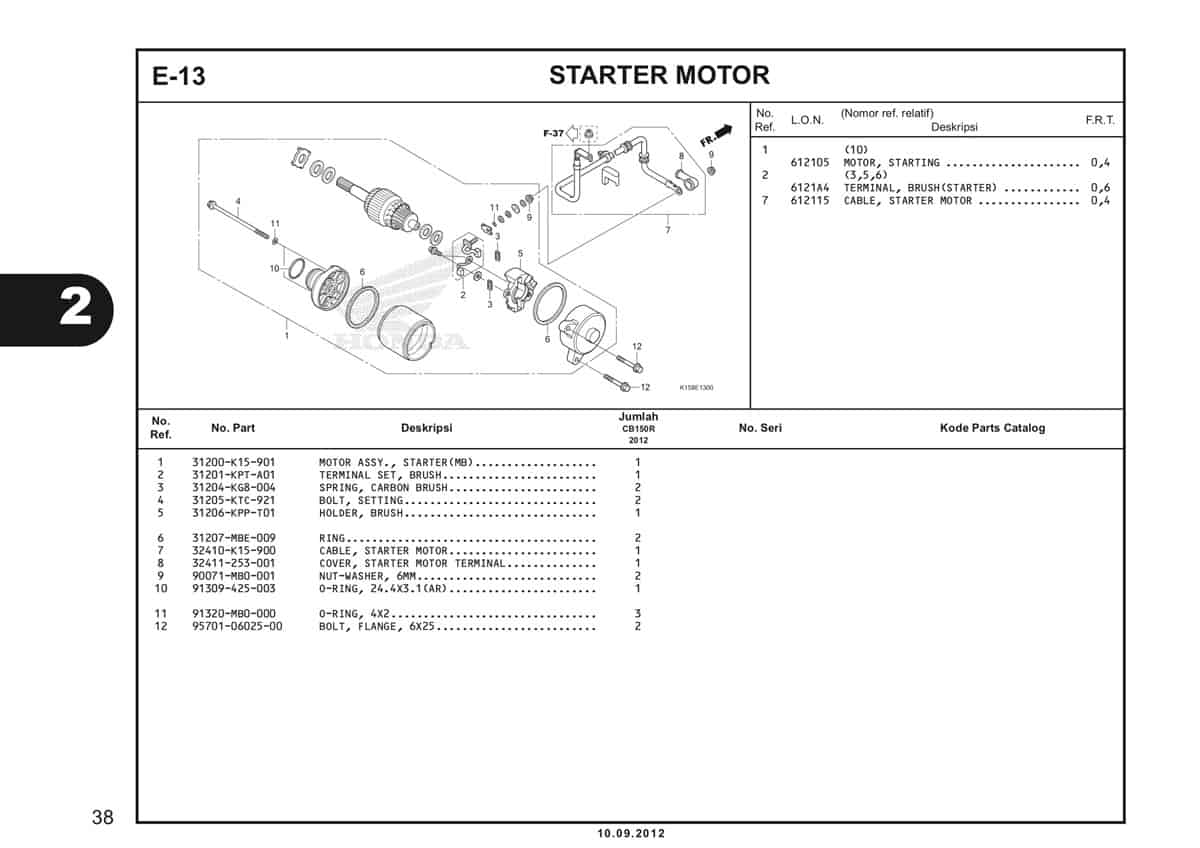

E13 – Starter Motor – Katalog Honda New CB150R StreetFire K15

#	Informasi Produk	Visual
1	Motor Assy Starter Part Number : `31200K15901`
2	Brush Terminal Set Part Number : `31201KPTA01`
3	Spring Brush Part Number : `31204KG8004`
4	Bolt Setting Part Number : `31205KTC921`
5	Brush Holder Part Number : `31206KPPT01`
6	Ring Part Number : `31207MBE008`
7	Cable Starter Motor Part Number : `32410K15900`
8	Cover Starting Motor Part Number : `32411253000`
9	Nut Washer 6MM Part Number : `90071MB0000`
10	O-Ring 24.4X3.1 Part Number : `91309425003`
11	O-Ring 4X2 Part Number : `91320MB0000`
12	Bolt Flange 6X25 Part Number : `957010602500`
