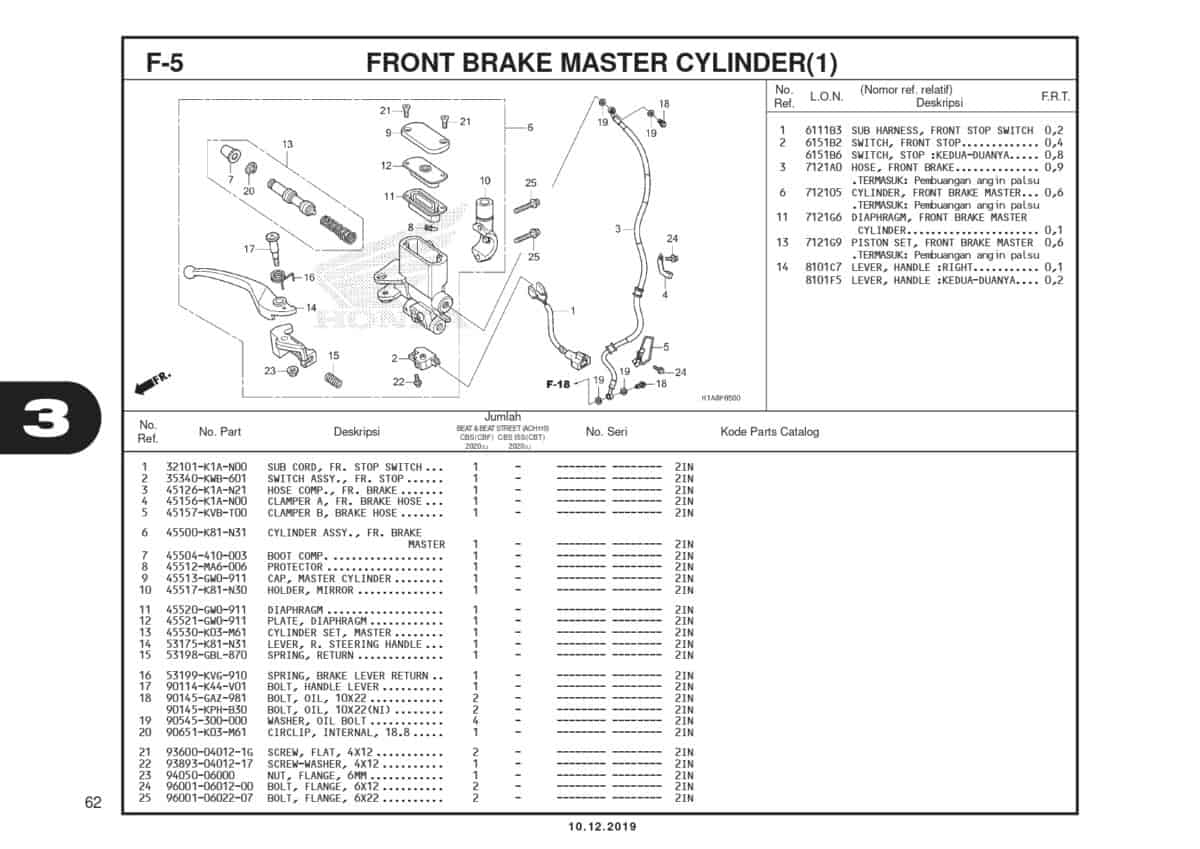

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SUB CORD, FR. STOP SWITCH | 32101K1AN00 |
|
| 2 | SWITCH ASSY., FR. STOP | 35340KWB601 |
|
| 3 | HOSE COMP., FR. BRAKE | 45126K1AN21 |
|
| 4 | CLAMPER A, FR. BRAKE HOSE | 45156K1AN00 |
|
| 5 | CLAMPER B, BRAKE HOSE | 45157KVBT00 |
|
| 6 | CYLINDER ASSY., FR. BRAKE MASTER | 45500K81N31 |
|
| 7 | BOOT COMP | 45504410003 |
|
| 8 | PROTECTOR | 45512MA6006 |
|
| 9 | CAP, MASTER CYLINDER | 45513GW0911 |
|
| 10 | HOLDER, MIRROR | 45517K81N30 |
|
| 11 | DIAPHRAGM | 45520GW0911 |
|
| 12 | PLATE, DIAPHRAGM | 45521GW0911 |
|
| 13 | CYLINDER SET, MASTER | 45530K03M61 |
|
| 14 | LEVER, R. STEERING HANDLE | 53175K81N31 |
|
| 15 | SPRING, RETURN | 53198GBL870 |
|
| 16 | SPRING, BRAKE LEVER RETURN | 53199KVG910 |
|
| 17 | BOLT, HANDLE LEVER | 90114K44V01 |
|
| 18 | BOLT,OIL, 10x22 | 90145GAZ981 |
|
| 19 | WASHER, OIL BOLT | 90545300000 |
|
| 21 | SCREW, FLAT , 4x12 | 93600040121G |
|
| 22 | SCREW - WASHER, 4X12 | 938930401217 |
|
| 23 | NUT, FLANGE,6MM | 9405006000 |
|
| 24 | BOLT, FLANGE,6X12 | 960010601200 |
|
| 25 | BOLT, FLANGE, 6X22 | 960010602207 |
|
