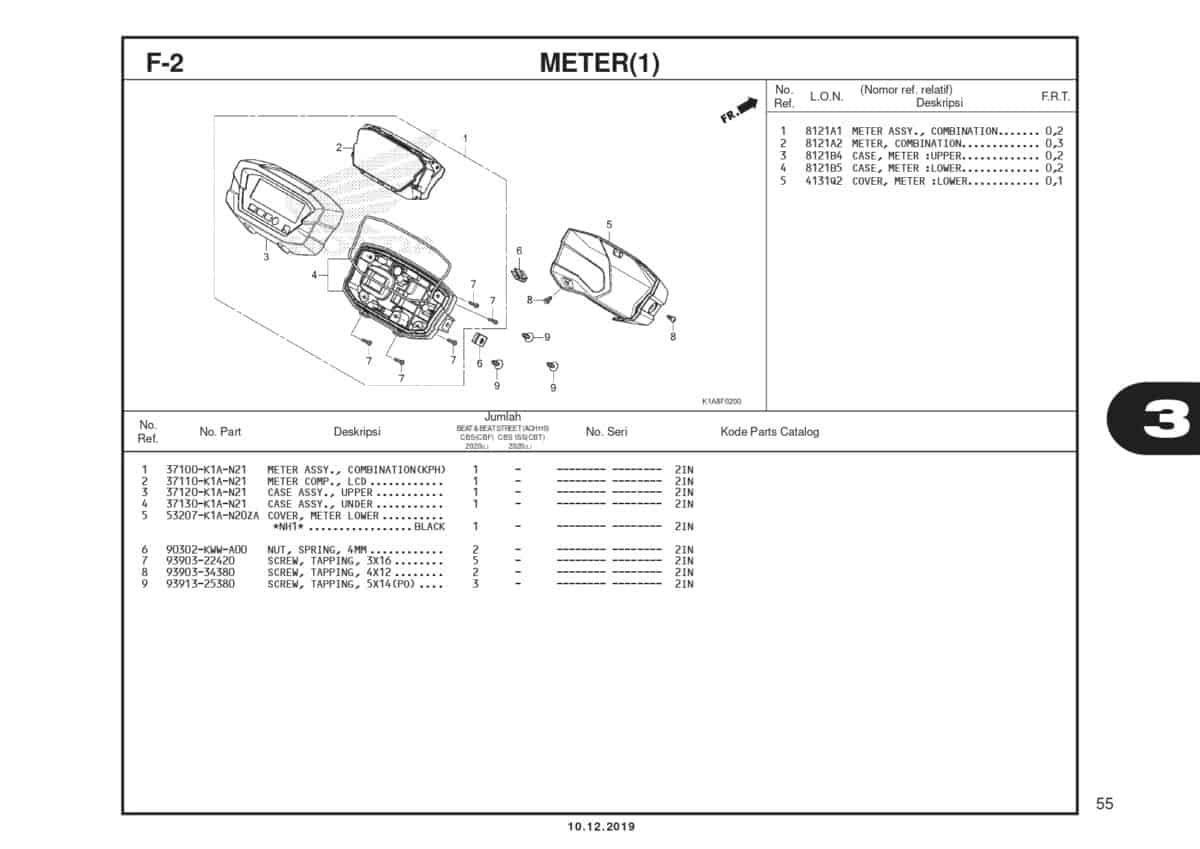

F2 – Meter (1) – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	METTER ASSY., COMBINATION (KPH) Part Number : `37100K1AN21`
1	METTER ASSY., COMBINATION Part Number : `37100K1AN22`
2	METER COMP., LCD Part Number : `37110K1AN21`
3	CASE ASSY ., UPPER Part Number : `37120K1AN21`
4	CASE ASSY., UNDER Part Number : `37130K1AN21`
4	CASE ASSY., UNDER Part Number : `37130K1AN22`
5	COVER, METER LOWER Part Number : `53207K1AN20ZA`
7	SCREW, TAPPING, 3X16 Part Number : `9390322420`
8	SCREW, TAPPING, 4X12 Part Number : `9390334380`
9	SCREW, TAPPING , 5X14 (PO) Part Number : `9391325380`
