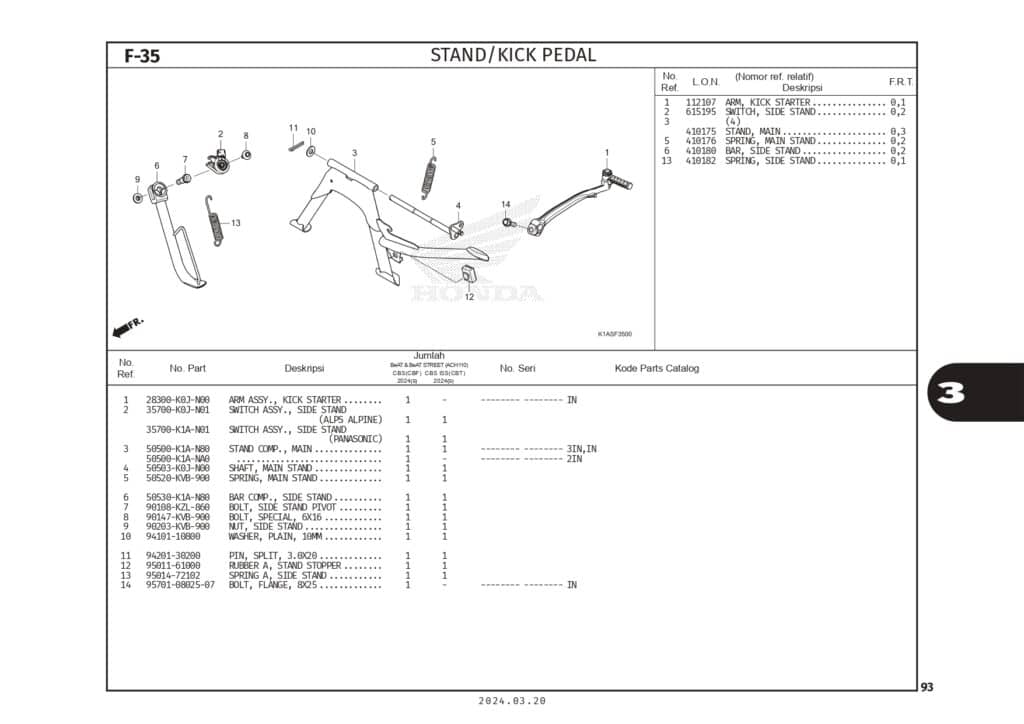

F-35 Stand Kick Pedal – Katalog Suku Cadang Honda New BeAT K1AL

#	Informasi Produk	Visual
1	ARM ASSY,KICK STARTER Part Number : `28300K0JN00`
2	SW ASSY,SIDE STAND Part Number : `35700K0JN01`
2	SW ASSY,SIDE STAND Part Number : `35700K1AN01`
3	STAND COMP,MAIN Part Number : `50500K1AN80`
3	STAND COMP,MAIN Part Number : `50500K1ANA0`
4	SHAFT,MAIN STAND Part Number : `50503K0JN00`
5	SPRING MAIN STAND Part Number : `50520KVB900`
6	BAR COMP,SIDE STAND Part Number : `50530K1AN80`
7	BOLT, SIDE STAND PIVOT Part Number : `90108KZL860`
8	BOLT SPECIAL,6X16 Part Number : `90147KVB900`
9	NUT SIDE STAND Part Number : `90203KVB900`
10	WASHER PLAIN 10MM Part Number : `9410110800`
11	PIN,COTTER 3X20 Part Number : `9420130200`
12	STOPPER RUBBER A STAND Part Number : `9501161000`
13	SPRING A SIDE STAND Part Number : `9501472102`
14	BOLT FLANGE 8X25 Part Number : `957010802507`
