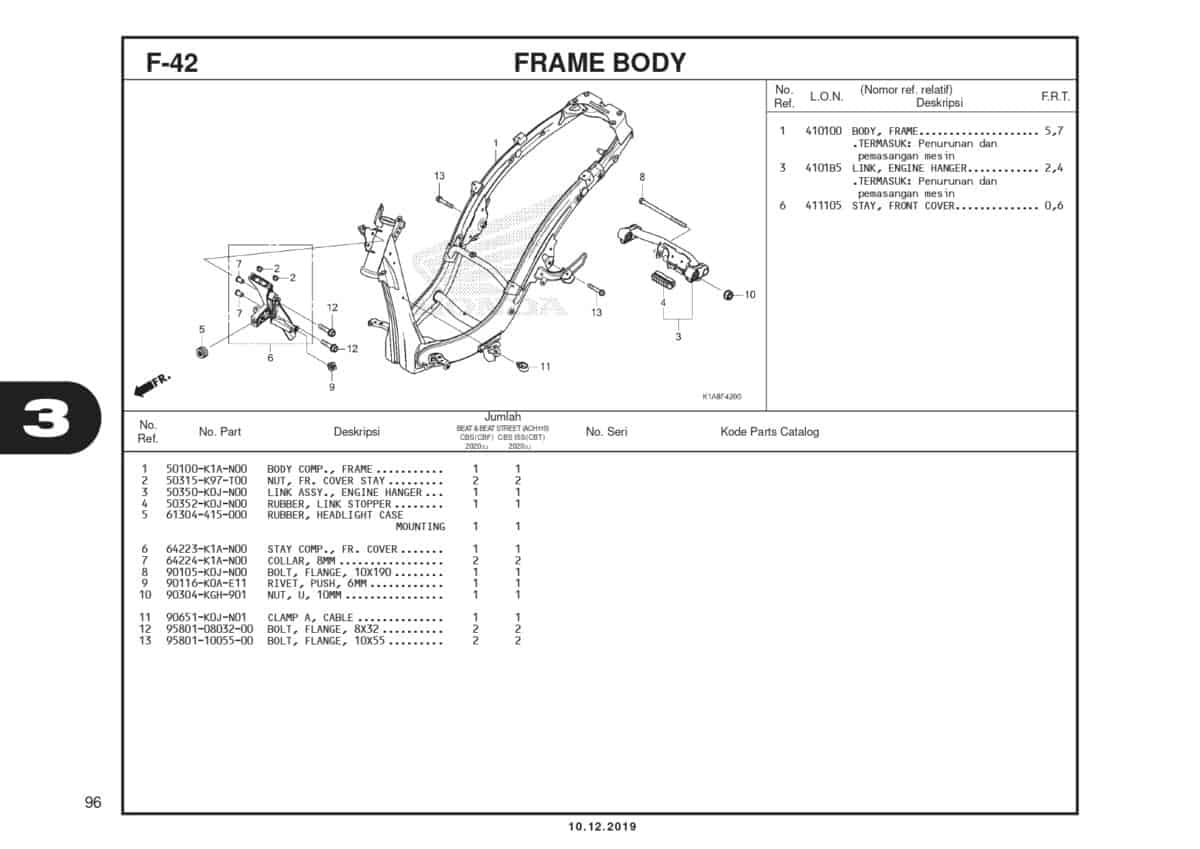

F42 – Frame Body – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	BODY CAMP.,FRAME Part Number : `50100K1AN00`
2	NUT, FR. COVER STAY Part Number : `50315K97T00`
3	LINK ASSY., ENGINE HANGER Part Number : `50350K0JN00`
3	LINK ASSY., ENGINE HANGER Part Number : `50350K2FN00`
4	RUBBER, LINK STOPPER Part Number : `50352K0JN00`
5	RUBBER, HEADLIGHT CASE MOUNTING Part Number : `61304415000`
6	STAY COMP., FR. COVER Part Number : `64223K1AN00`
6	STAY COMP., FR. COVER Part Number : `64223K1AN01`
7	COLLAR, 8MM Part Number : `64224K1AN00`
8	BOLT, FLANGE, 10X190 Part Number : `90105K0JN00`
9	RIVET, PUSH, 6MM Part Number : `90116K0AE11`
10	NUT, U, 10MM Part Number : `90304KGH901`
11	CLAMP A, CABLE Part Number : `90651K0JN01`
12	BOLT, FLANGE, 8X32 Part Number : `958010803200`
13	BOLT, FLANGE, 10X55 Part Number : `958011005500`
