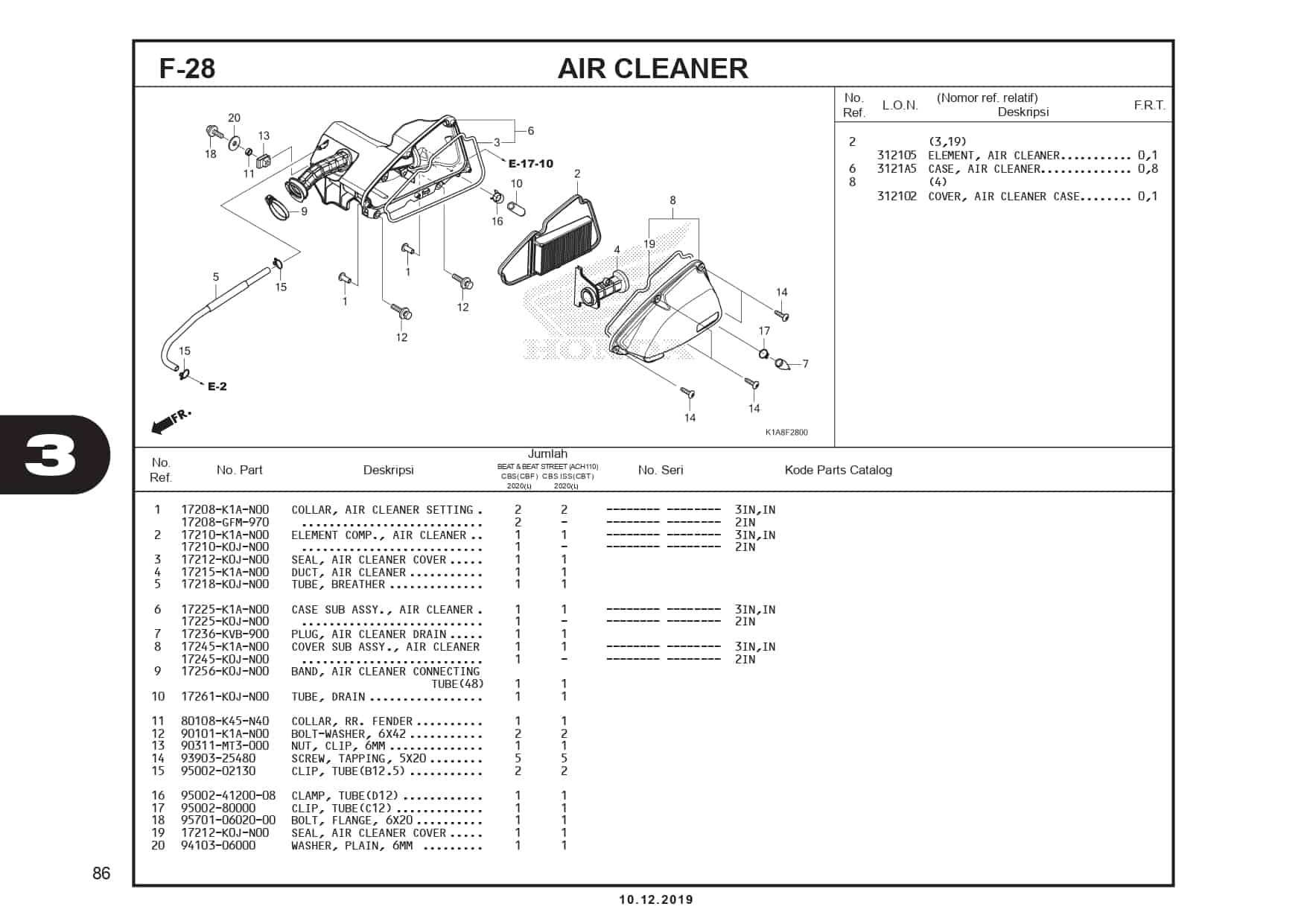

F28 – Air Cleaner – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	COLLAR,AIR/C SET Part Number : `17208K1AN00`
1	COLLAR, AIR CLEANER SETTING Part Number : `17208GFM970`
2	ELEMENT COMP,AIR/C Part Number : `17210K1AN00`
2	ELEMENT COMP,AIR/C Part Number : `17210K0JN00`
3	SEAL,AIR/C COVER Part Number : `17212K0JN00`
4	DUCT,AIR/C Part Number : `17215K1AN00`
5	TUBE,BREATHER Part Number : `17218K0JN00`
6	CASE SUB ASSY,AIR/C Part Number : `17225K1AN00`
6	CASE SUB ASSY,AIR/C Part Number : `17225K0JN00`
7	PLUG A/C DRAIN Part Number : `17236KVB900`
8	COVER SUB ASSY,AIR/C Part Number : `17245K1AN00`
8	COVER SUB ASSY,AIR/C Part Number : `17245K0JN00`
9	BAND 48,AIR/C CON TUBE Part Number : `17256K0JN00`
10	TUBE,DRAIN Part Number : `17261K0JN00`
11	COLLAR RR FENDER Part Number : `80108K45N40`
11	COLLAR RR FENDER Part Number : `80108K1Z920`
12	BOLT-WASH 6X42 Part Number : `90101K1AN00`
13	NUT CLIP 6MM Part Number : `90311MT3000`
14	SCREW,TAPP 5X2 Part Number : `9390325480`
15	CLIP, TUBE(B12.5) Part Number : `9500202130`
16	CLAMP D12 TUBE Part Number : `950024120008`
17	CLIP, TUBE(C12) Part Number : `9500280000`
18	BOLT FLANGE 6X20 Part Number : `957010602000`
19	SEAL,AIR/C COVER Part Number : `17212K0JN00`
20	WASHER PLAIN 6MM Part Number : `9410306000`
