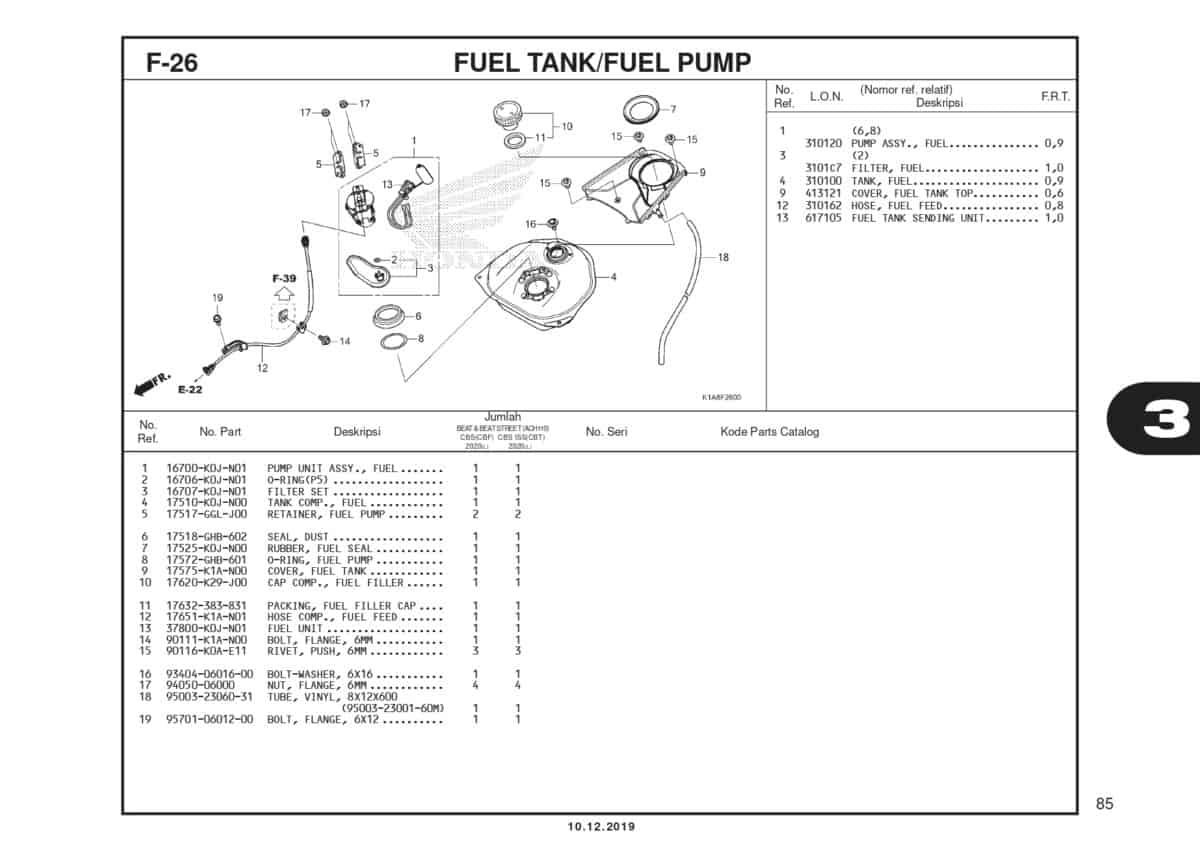

F26 – Fuel Tank / Fuel Pump – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	PUMP UNIT ASSY., FUEL Part Number : `16700K0JN01`
2	O-RING (P5) Part Number : `16706K0JN01`
3	FILTER SET Part Number : `16707K0JN01`
4	TANK COMP.,FUEL Part Number : `17510K0JN00`
5	RETAINER, FUEL PUMP Part Number : `17517GGLJ00`
6	SEAT., DUST Part Number : `17518GHB602`
7	RUBBER, FUEL SEAL Part Number : `17525K0JN00`
8	O-RING, FUEL PUMP Part Number : `17572GHB601`
9	COVER, FUEL TANK Part Number : `17575K1AN00`
10	CAP CAMP., FUEL FILLER Part Number : `17620K29J00`
11	PACKING, FUEL FILLER CAP Part Number : `17632383831`
12	HOSE COMP., FUEL FEED Part Number : `17651K1AN01`
13	FUEL UNIT Part Number : `37800K0JN01`
14	BOLT, FLANGE, 6MM Part Number : `90111K1AN00`
15	RIVET, PUSH, 6MM Part Number : `90116K0AE11`
16	BOLT, - WASHER, 6X16 Part Number : `934040601600`
17	NUT, FLANGE, 6MM Part Number : `9405006000`
18	TUBE, VINYIL, 8X12X600 (950032300160M) Part Number : `950032306031`
19	BOLT, FLANGE, 6X12 Part Number : `957010601200`
