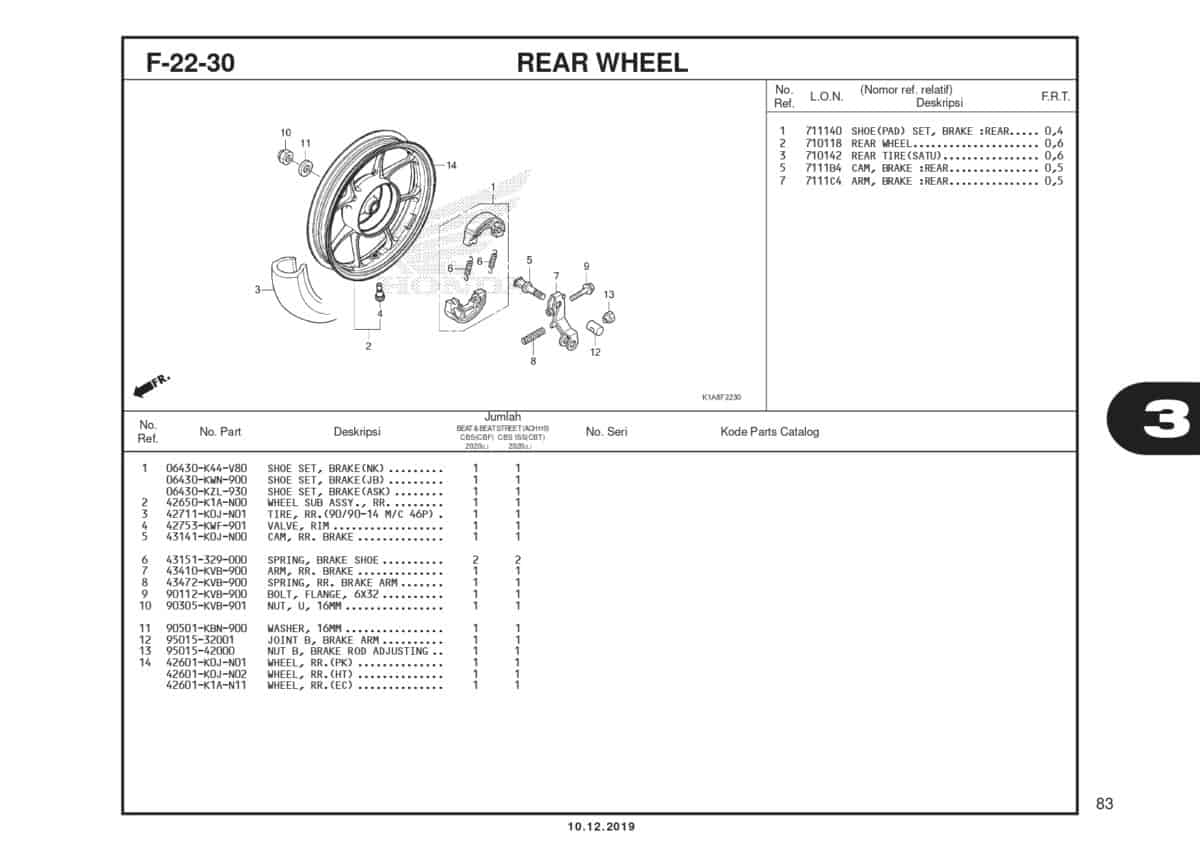

F22-30 – Rear Wheel – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	SHOE SET, BRAKE (NK) Part Number : `06430K44V80`
1	SHOE SET,BRAKE Part Number : `06430KWN900`
1	SHOE SET BRAKE Part Number : `06430KZL930`
2	WHEEL SUB ASSY.,RR Part Number : `42650K1AN00`
3	TIRE,RR . (90/90-14 M/C 46P) Part Number : `42711K0JN01`
3	Tire Rr (90/90-14 Ft235) Part Number : `42711K59A12`
4	VALVE, RIM Part Number : `42753KWF901`
5	CAM, RR. BRAKE Part Number : `43141K0JN00`
6	SPRING, BRAKE SHOE Part Number : `43151329000`
7	ARM, RR. BRAKE Part Number : `43410KVB900`
8	SPRING, RR. BRAKE ARM Part Number : `43472KVB900`
9	BOLT, FLANGE, 6X32 Part Number : `90112KVB900`
10	NUT, U, 16MM Part Number : `90305KVB901`
11	WASHER, 16MM Part Number : `90501KBN900`
12	JOINT B, BRAKE ARM Part Number : `9501532001`
14	WHEEL, RR.. (PK) Part Number : `42601K0JN01`
14	WHEEL COMP,REAR Part Number : `42601K1AN11`
