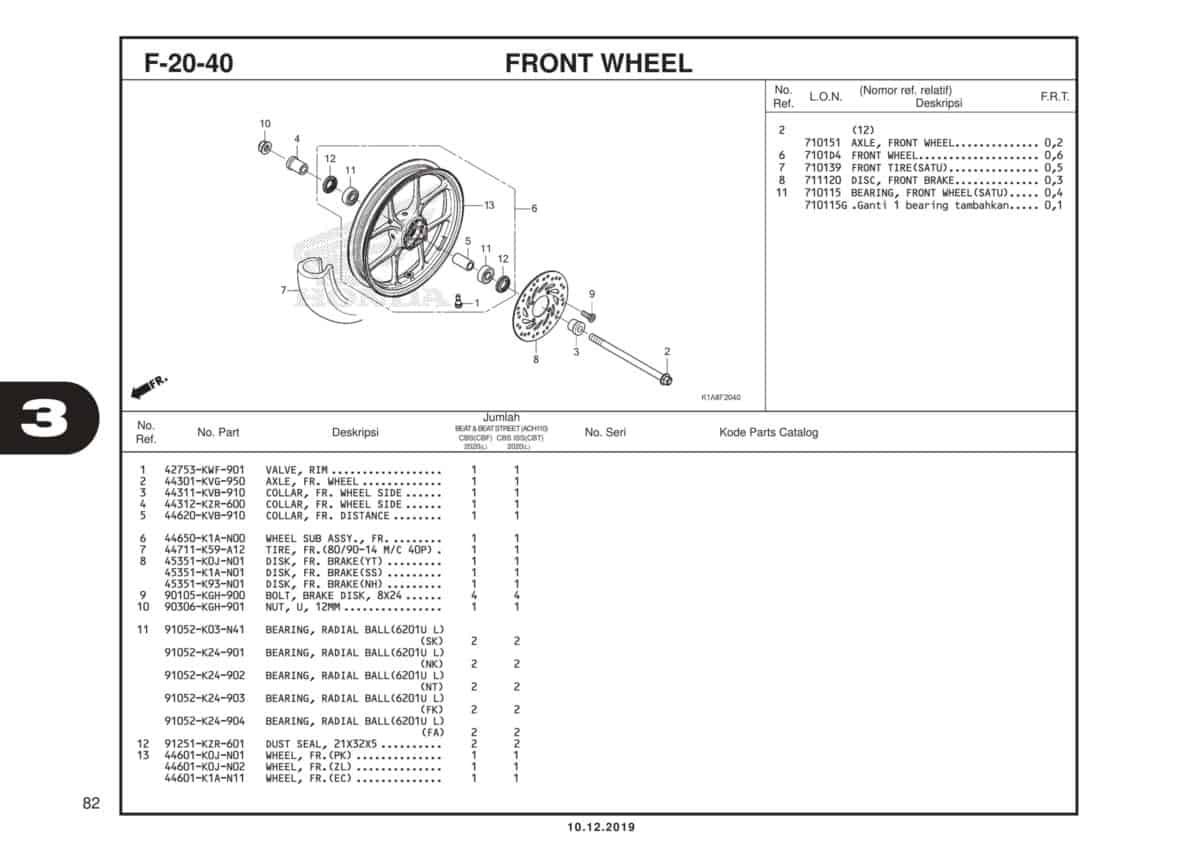

F20 – 40 – Front Wheel – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	VALVE, RIM Part Number : `42753KWF901`
2	AXLE, FR. WHEEL Part Number : `44301KVG950`
3	COLLAR, FR. WHEEL SIDE Part Number : `44311KVB910`
4	COLLAR,FR WHEEL SIDE Part Number : `44312KZR600`
5	COLLAR,FR. DISTANCE Part Number : `44620KVB910`
6	WHEEL SUB ASSY., FR Part Number : `44650K1AN00`
7	TIRE, FR. (80/90-14 M/C40 P) Part Number : `44711K59A12`
8	DISK, FR. BRAKE (YT) Part Number : `45351K0JN01`
8	DISK,FRONT BRAKE Part Number : `45351K1AN01`
8	DISK,FR BRAKE Part Number : `45351K93N01`
9	BOLT, BRAKE DISK, 8X24 Part Number : `90105KGH900`
10	NUT, U, 12MM Part Number : `90306KGH901`
11	BEARING, RADIAL BALL (6201U L) (SK) Part Number : `91052K03N41`
11	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
11	BEARING RADIAL BALL(6201U L) Part Number : `91052K24904`
12	DUST SEAL, 21X32X5 Part Number : `91251KZR601`
13	WHEEL , FR. (PK) Part Number : `44601K0JN01`
13	WHEEL,FRONT Part Number : `44601K1AN11`
