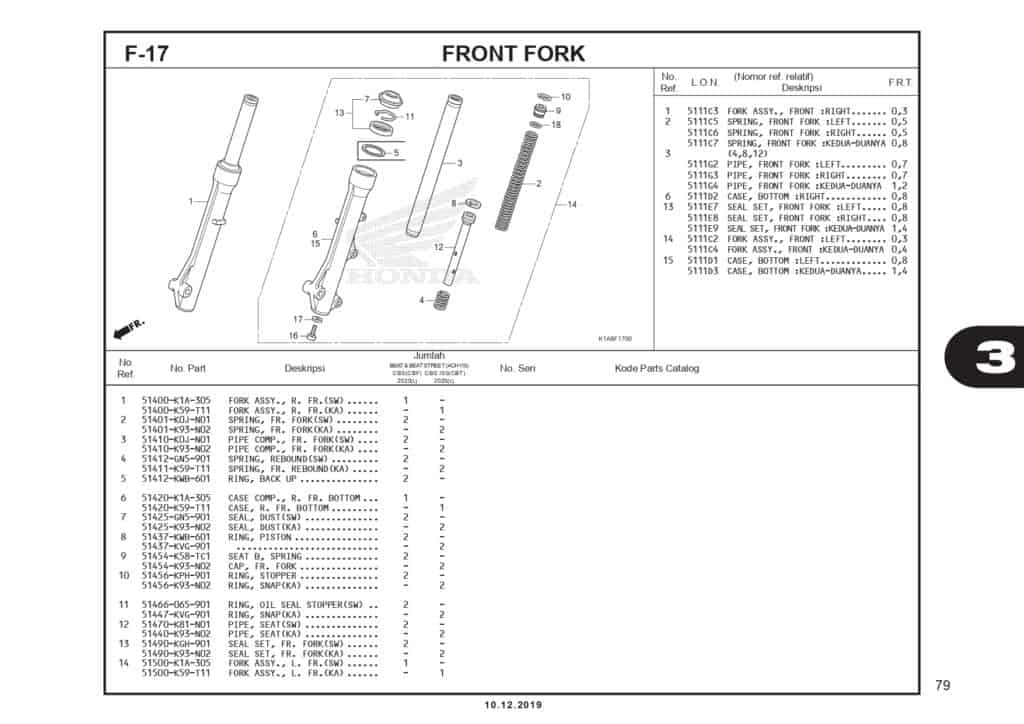

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY,R FRONT | 51400K1A305 |
|
| 1 | FORK ASSY,R FRONT | 51400K59T11 |
|
| 1 | Fork Assy R Front | 51400K1AN01 |
|
| 2 | SPRING,FR FORK | 51401K0JN01 |
|
| 2 | SPRING FR FORK R | 51401K93N02 |
|
| 3 | PIPE COMP,FR FORK | 51410K0JN01 |
|
| 3 | PIPE COMP FR FORK | 51410K93N02 |
|
| 4 | SPG REBOUND | 51412GN5901 |
|
| 4 | SPRING,FR REBOUND | 51411K59T11 |
|
| 5 | RING BACK UP | 51412KWB601 |
|
| 6 | CASE COMP,R FR BOTTOM | 51420K1A305 |
|
| 6 | CASE,R FR BOTTOM | 51420K59T11 |
|
| 7 | DUST SEAL FR FORK | 51425GN5901 |
|
| 7 | SEAL, DUST(KYB) | 51425K93N02 |
|
| 8 | RING PISTON | 51437KWB601 |
|
| 8 | RING PISTON | 51437KVG901 |
|
| 9 | SEAT B,SPRING | 51454K58TC1 |
|
| 9 | CAP FR FORK | 51454K93N02 |
|
| 10 | RIMG,STOPPER | 51456KPH901 |
|
| 10 | RING SNAP | 51456K93N02 |
|
| 11 | RING OIL SEAL | 51466065901 |
|
| 11 | RING SNAP | 51447KVG901 |
|
| 12 | PIPE SEAT | 51470K81N01 |
|
| 12 | PIPE SEAT | 51440K93N02 |
|
| 13 | SEAL SET FR FORK | 51490KGH901 |
|
| 13 | SEAL SET, FR. FORK(KYB) | 51490K93N02 |
|
| 14 | FORK ASSY,L FRONT | 51500K1AN01 |
|
| 14 | FORK ASSY,L FRONT | 51500K1A305 |
|
| 14 | FORK ASSY,L FRONT | 51500K59T11 |
|
| 15 | CASE COMP,L FR BOTTOM | 51520K1A305 |
|
| 15 | CASE,L FR BOTTOM | 51520K59T11 |
|
| 16 | BOLT,SOCKET 8MM | 90116KV3701 |
|
| 16 | BOLT SOCKET 10X25 | 90116KVGA31 |
|
| 17 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 17 | WASHER OIL BOLT | 51442K93N02 |
|
| 17 | WASHER,OIL BOLT | 52442KA3731 |
|
| 18 | O-RING,FR FORK | 91256166003 |
|
| 18 | O RING 16.8X2.4 | 91356KVG901 |
|
