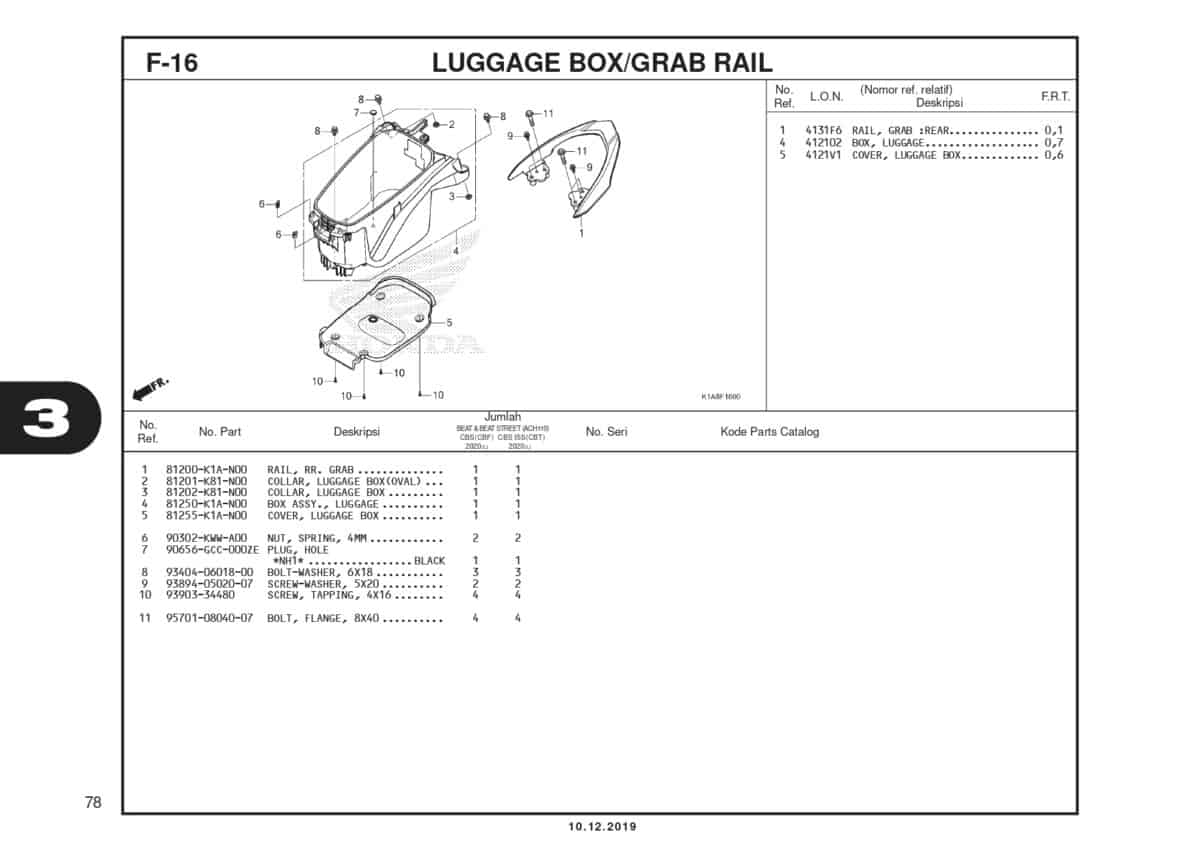

F16 – Luggage Box / Grab Rail – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	RAIL, RR. GRAB Part Number : `81200K1AN00`
2	COLLAR, LUGGAGE BOX (OVAL) Part Number : `81201K81N00`
3	COLLAR, LUGGAGE BOX Part Number : `81202K81N00`
4	BOX ASSY., LUAGGE Part Number : `81250K1AN00`
5	COVER, LUAGGE BOX Part Number : `81255K1AN00`
6	NUT, SPRING 4MM Part Number : `90302KWWA00`
7	PLUG, HOLE NH1 BLACK Part Number : `90656GCC000ZE`
8	BOLT-WASHER, 6X18 Part Number : `934040601800`
9	SCREW- WASHER, 5X20 Part Number : `938940502007`
10	SCREW, TAPPING, 4X16 Part Number : `9390334480`
11	BOLT, FLANGE, 8X40 Part Number : `957010804007`
