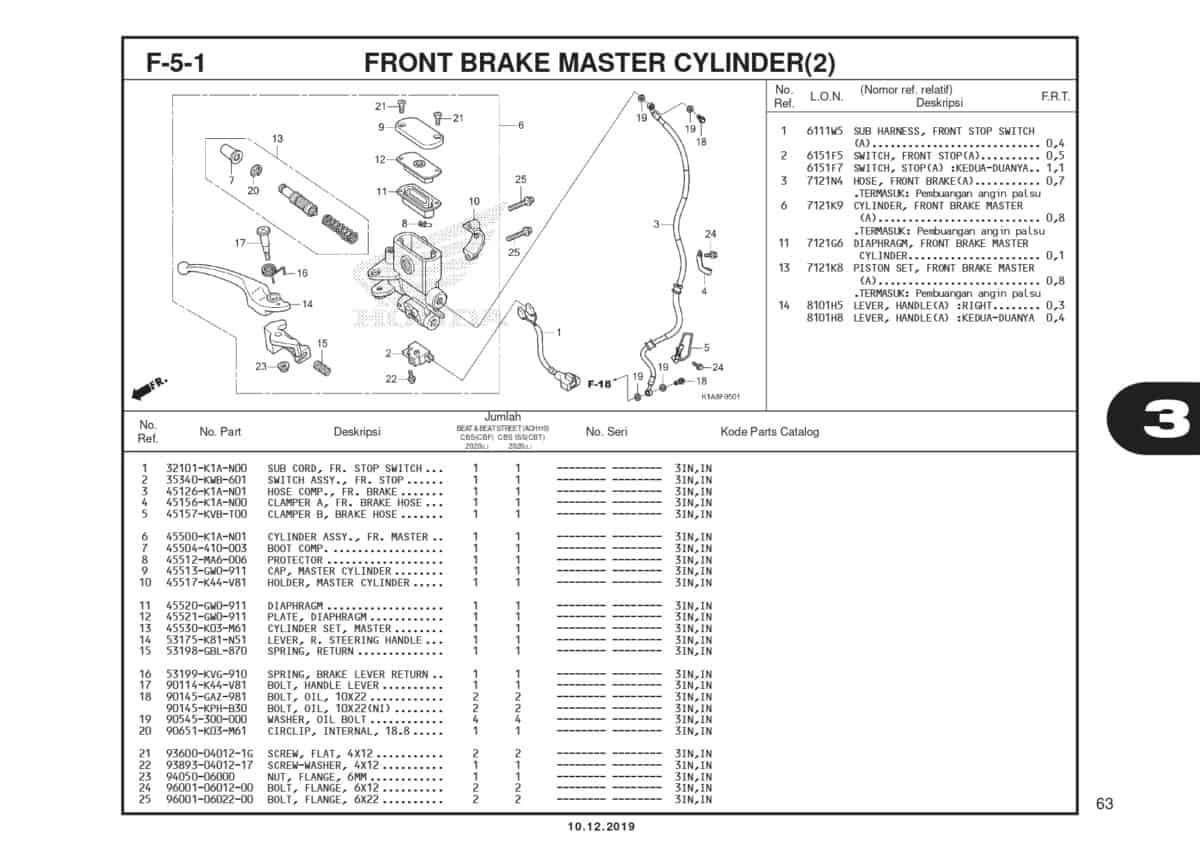

F-5-1 – Front Brake Master Cylinder (2) – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	SUB CORD, FR. STOP SWITCH Part Number : `32101K1AN00`
2	SWITCH ASSY., FR.STOP Part Number : `35340KWB601`
3	HOSE CAMP., FR. BRAKE Part Number : `45126K1AN01`
4	CLAMPER A, FR. BRAKE HOUSE Part Number : `45156K1AN00`
5	CLAMPER B, BRAKE HOSE Part Number : `45157KVBT00`
6	CYLINDER ASSY., FR. BRAKE MASTER Part Number : `45500K1AN01`
7	BOOT COMP Part Number : `45504410003`
8	PROTECTOR Part Number : `45512MA6006`
9	CAP, MASTER CYLINDER Part Number : `45513GW0911`
10	HOLDER, MASTER CYLINDER Part Number : `45517K44V81`
11	DIAPHRAGM Part Number : `45520GW0911`
12	PLATE, DIAPHRAGM Part Number : `45521GW0911`
13	CYLINDER SET, MASTER Part Number : `45530K03M61`
14	LEVER, R. STEERING HANDLE Part Number : `53175K81N51`
16	SPRING,BRAKE LEVER RETURN Part Number : `53199KVG910`
17	BOLT, HANDLE LEVER Part Number : `90114K44V81`
18	BOLT, OIL, 10X22 Part Number : `90145GAZ981`
18	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
19	WASHER, OIL BOLT Part Number : `90545300000`
20	CIRCLIP, INTERNAL , 18.8 Part Number : `90651K03M61`
21	SCREW, FLAT, 4X12 Part Number : `93600040121G`
22	SCREW- WASHER , 4X12 Part Number : `938930401217`
23	NUT, FLANGE , 6MM Part Number : `9405006000`
24	BOLT, FLANGE , 6X12 Part Number : `960010601200`
25	BOLT, FLANGE , 6X22 Part Number : `960010602207`
