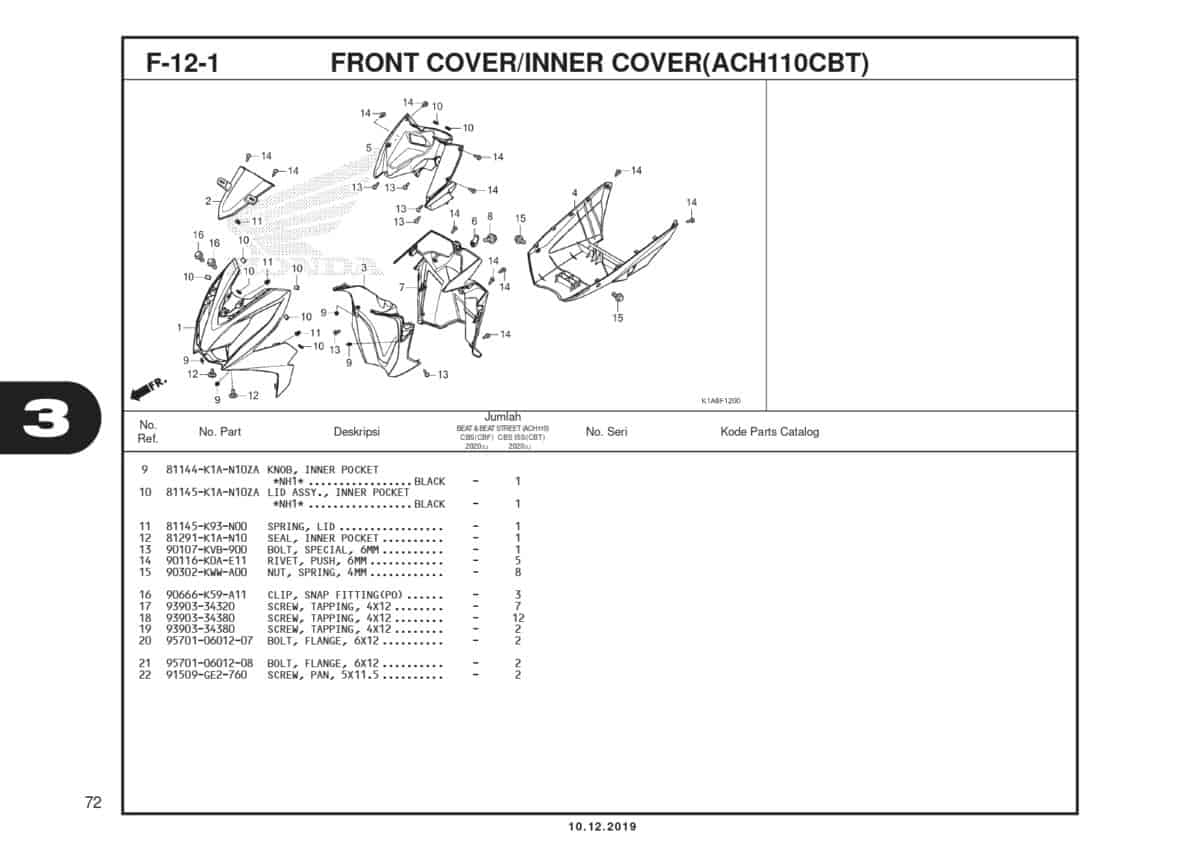

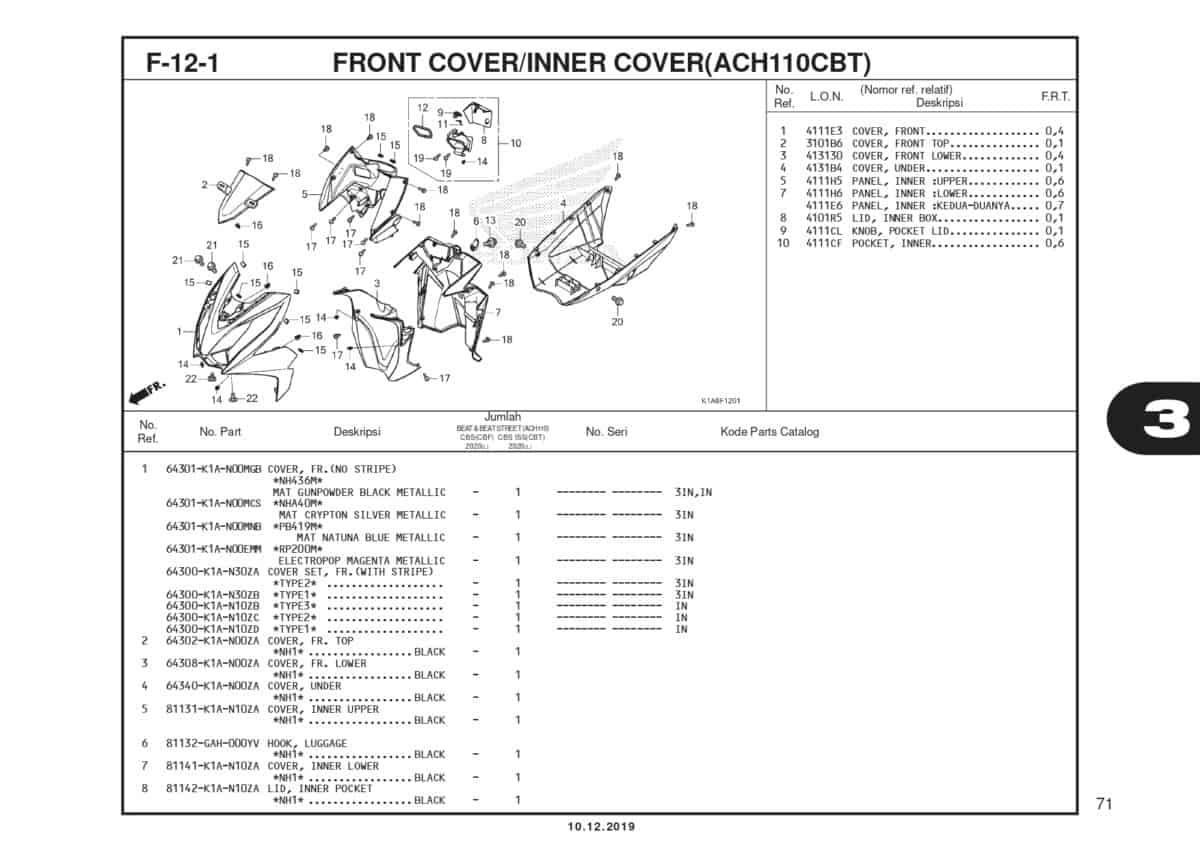

F 12-1 – Front Cover / Inner Cover (ACH110CBT) – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	COVER,FR (MT GN BL) Part Number : `64301K1AN00MGB`
1	COVER,FR (MT CR SL) Part Number : `64301K1AN00MCS`
1	COVER,FR (MT NA BL) Part Number : `64301K1AN00MNB`
1	COVER,FR (EL MG MT) Part Number : `64301K1AN00EMM`
1	COVER,FR (MT SA GR) Part Number : `64301K1AN00MSG`
1	COVER,FR (MT BU SL) Part Number : `64301K1AN00MBS`
2	COVER,FR TOP (BLACK) Part Number : `64302K1AN00ZA`
3	COVER,FR LOWER (BLACK) Part Number : `64308K1AN00ZA`
4	COVER,UNDER (BLACK) Part Number : `64340K1AN00ZA`
5	COVER,INNER UPPER (BLACK) Part Number : `81131K1AN10ZA`
6	HOOK LUGGAGE Part Number : `81132GAH000YV`
7	COVER,INNER LOWER (BLACK) Part Number : `81141K1AN10ZA`
8	LID,INNER POCKET (BLACK) Part Number : `81142K1AN10ZA`
9	KNOB,INNER POCKET (BLACK) Part Number : `81144K1AN10ZA`
10	LID ASSY,INNER POCKET (BLACK) Part Number : `81145K1AN10ZA`
11	SPG, LID Part Number : `81145K93N00`
12	SEAL,INNER POCKET Part Number : `81291K1AN10`
13	BOLT SPECIAL 6MM Part Number : `90107KVB900`
14	RIVET PUSH 6MM Part Number : `90116K0AE11`
15	NUT SPRING 4MM Part Number : `90302KWWA00`
16	CLIP SNAP FIT(PO) Part Number : `90666K59A11`
17	SCREW TAPPING 4X12 Part Number : `9390334320`
18	SCREW TAPPING 4X12 Part Number : `9390334380`
19	SCREW TAPPING 4X12 Part Number : `9390334380`
20	BOLT FLANGE 6X12 Part Number : `957010601207`
21	BOLT FLANGE 6X12 Part Number : `957010601208`
22	SCREW PAN 5X11.5 Part Number : `91509GE2760`
