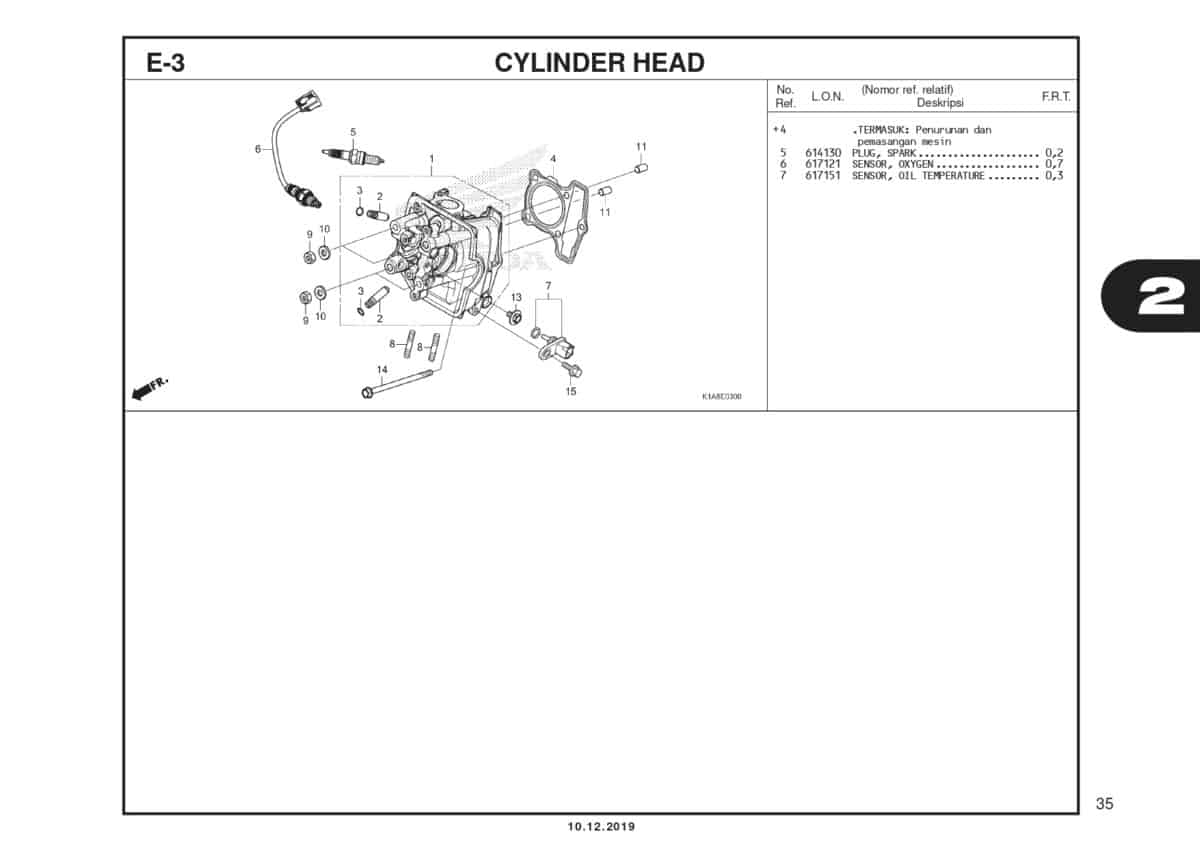

E3 – Cylinder Head – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	HEAD COMP, CYLINDER Part Number : `12200K1AN00`
1	HEAD COMP, CYLINDER Part Number : `12200K0JN00`
1	HEAD COMP, CYLINDER Part Number : `12200K2FN80`
2	GUIDE,VALVE(O.S) Part Number : `12204K0JP00`
3	CLIP, VALVE GUIDE Part Number : `12206K0JN00`
4	GASKET, CYLINDER HEAD (STD./0.25./0.50) Part Number : `12251K0JN01`
4	GASKET,CYLINDER HEAD(OS) Part Number : `12252K0JN00`
5	PLUG, SPARK(MR9C-9N)(NG) Part Number : `31919K25601`
5	SPARK PLUG U27EPR-N9 (DS) Part Number : `31919K25602`
5	PLUG, SPARK CR9(NG) Part Number : `31926KRM841`
6	SENSOR, OXYGEN Part Number : `36532K1AN01`
7	SENSOR ASSY, OIL TEMPERATUR (MI) Part Number : `37750K0JN21`
7	SENSOR ASSY,T-OIL Part Number : `37750K1AN01`
8	BOLT, STUD,7X16.5 Part Number : `90032K0JN00`
9	NUT, HEX 7MM Part Number : `90201GCC000`
10	WASHER, 7.2X16X2.5 Part Number : `90402KWW740`
13	BOLT WASHER, 6X12 Part Number : `934040601200`
13	BOLT WASHER, 6X12 Part Number : `934040601208`
14	BOLT FLANGE 6X105 Part Number : `957010610500`
15	BOLT, FLANGE,6X16 Part Number : `960010601600`
