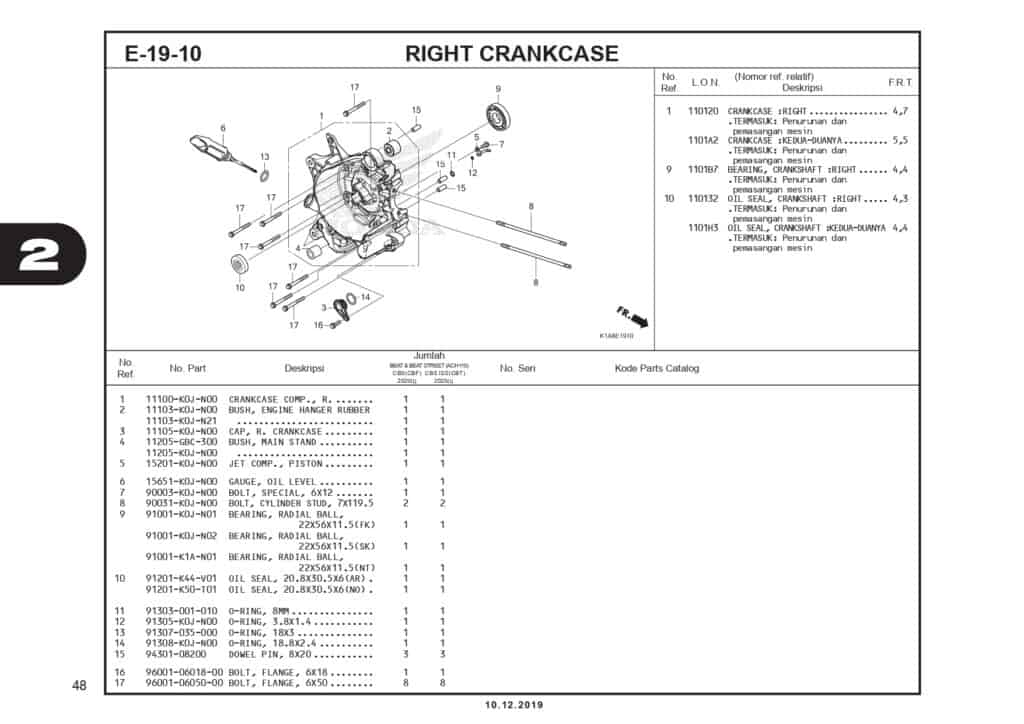

E19 -10 – Right CrankCase – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	CRANKCASE COMP., R Part Number : `11100K0JN00`
2	BUSH, ENGINE HANGER RUBBER Part Number : `11103K0JN00`
2	BUSH, ENGINE HANGER RUBBER Part Number : `11103K0JN21`
2	BUSH, ENGINE HANGER RUBBER Part Number : `11103KVB930`
3	CAP, R. CRANKCASE Part Number : `11105K0JN00`
4	BUSH, MAIN STAND Part Number : `11205GBC300`
4	BUSH,M STAND Part Number : `11205K0JN00`
5	JET COMP., PISTON Part Number : `15201K0JN00`
6	GAUGE, OIL LEVEL Part Number : `15651K0JN00`
7	BOLT, SPECIAL, 6X12 Part Number : `90003K0JN00`
8	BOLT,CYLINDER STUD, 7X119.5 Part Number : `90031K0JN00`
9	BRG,BALL RADIAL 22X56X11.5 Part Number : `91001K0JN02`
9	BEARING, RADIAL BALL, 22X56X11.5 Part Number : `91001K2FN01`
9	BEARING, RADIAL BALL, 22X56X11.5 Part Number : `91001K1AN81`
9	BEARING, RADIAL BALL, 22X56X11.5 Part Number : `91001K1AN01`
10	OIL SEAL, 20 .8X30.5X6(AR) Part Number : `91201K44V01`
10	OIL SEAL,20.8X30.5X6 Part Number : `91201K50T01`
11	O-RING, 8MM Part Number : `91303001010`
12	O-RING, 3.8X1.4 Part Number : `91305K0JN00`
13	O-RING 18X3 Part Number : `91307035000`
13	O-RING 18X3 Part Number : `91307KRM840`
14	O-RING 18.8X2.4 Part Number : `91308K0JN00`
15	DOWEL PIN,8x20 Part Number : `9430108200`
16	BOLT, FLANGE, 6X18 Part Number : `960010601800`
17	BOLT, FLANGE, 6X50 Part Number : `960010605000`
