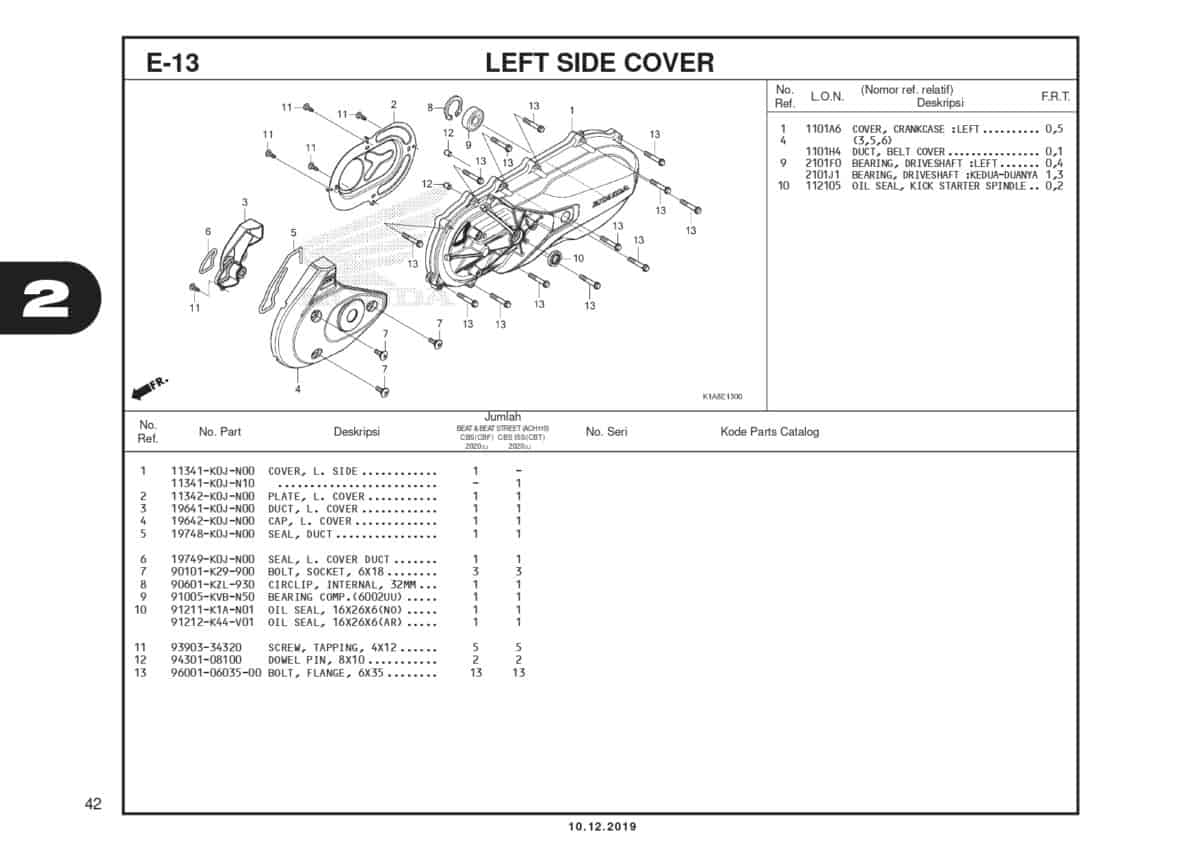

E13 – Left Side Cover – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	COVER L SIDE Part Number : `11341K0JN00`
1	COVER,L SIDE Part Number : `11341K0JN10`
1	COVER, L. SIDE . Part Number : `11341K1AN00`
2	PLATE, L. COVER Part Number : `11342K0JN00`
3	DUCT, L. COVER Part Number : `19641K0JN00`
4	CAP, L COVER Part Number : `19642K0JN00`
5	SEAL, DUCT Part Number : `19749K0JN00`
6	SEAL, L, COVER DUCT Part Number : `19749K0JN00`
7	BOLT, Part Number : `90101K29900`
8	CIRCLIP, INTERNAL, 32MM Part Number : `90601KZL930`
9	BEARING COMP (6002UU) Part Number : `91005KVBN50`
10	OIL SEAL, 16X26X6 (NO) Part Number : `91211K1AN01`
10	OIL SEAL, 16X26X6 Part Number : `91212K44V01`
11	SCREW, TAPPING,4X12 Part Number : `9390334320`
12	DOWEL PIN 8X10 Part Number : `9430108100`
13	BOLT,FLANGE 6X35 Part Number : `960010603500`
