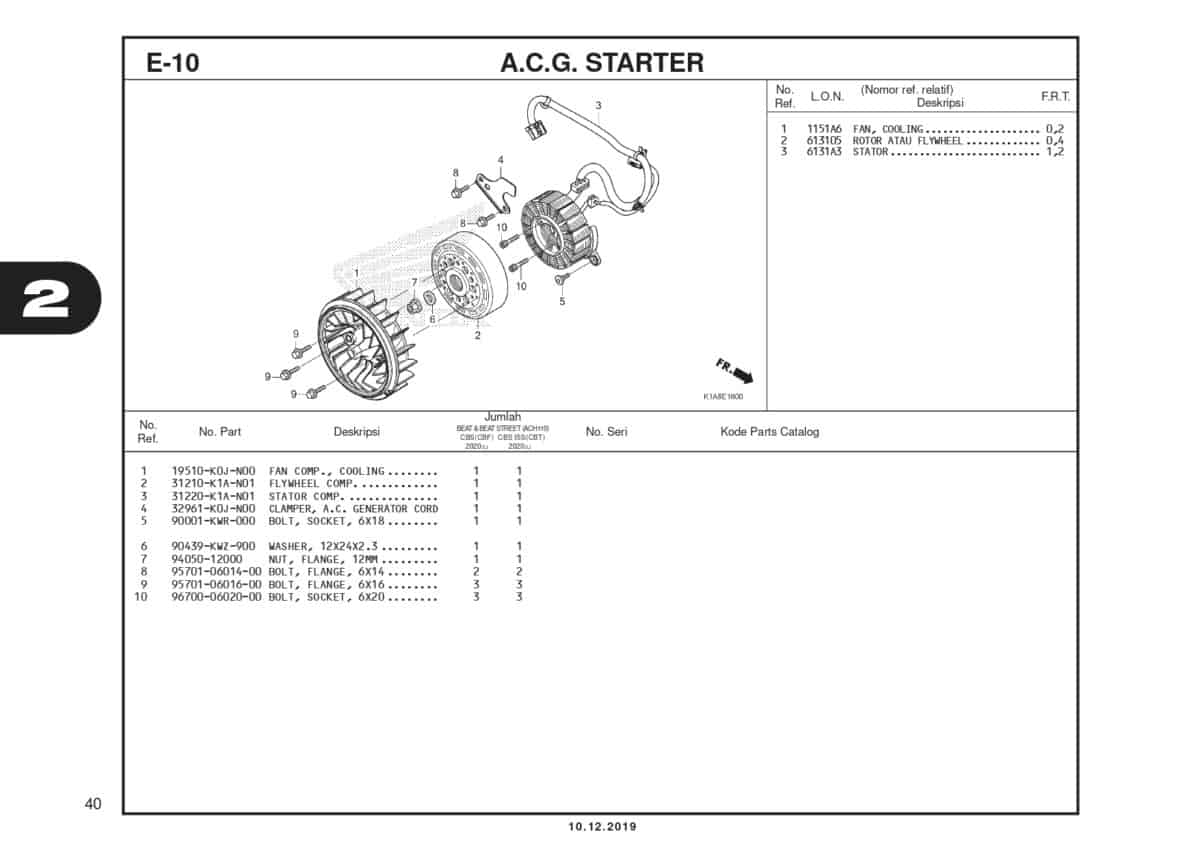

E10 – A.C.G Starter – Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	FAN COMP, COOLING Part Number : `19510K0JN00`
2	FLYWHEEL COMP Part Number : `31210K1AN01`
3	STATOR COMP Part Number : `31220K1AN01`
4	CLAMPER A.C GENERATOR Part Number : `32961K0JN00`
5	BOLT, SOCKET, 6X18 Part Number : `90001KWR000`
6	WASHER, 12X24X2.3 Part Number : `90439KWZ900`
7	NUT, FLANGE, 12MM Part Number : `9405012000`
8	BOLT, FLANGE,6X14 Part Number : `957010601400`
9	BOLT, FLANGE, 12MM Part Number : `957010601600`
10	BOLT, SOCKET,6X20 Part Number : `967000602000`
