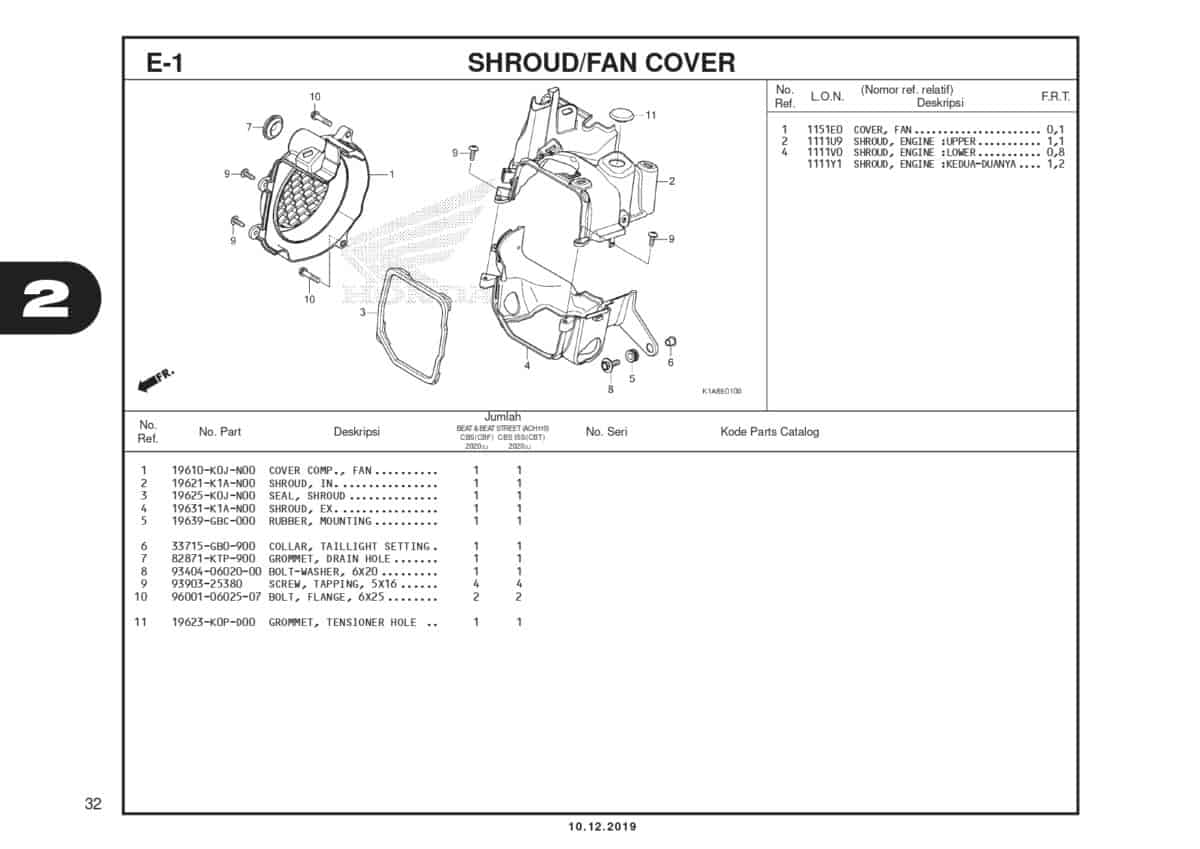

E1 – Shroud/ Fan Cover– Katalog Honda BeAT K1A

#	Informasi Produk	Visual
1	COVER COMP, VAN Part Number : `19610K0JN00`
1	COVER COMP, VAN Part Number : `19610K0JN01`
2	SHROUD, IN Part Number : `19621K1AN00`
3	SEAL, SHROUD Part Number : `19625K0JN00`
4	SHROUD, EX Part Number : `19631K1AN00`
5	RUBBER, MOUNTING Part Number : `19639GBC000`
6	COLLAR, TAILLIGHT SETTING Part Number : `33715GB0900`
7	GROMMET, DRAIN HOLE Part Number : `82871KTP900`
8	BOLT, WASHER,6x20 Part Number : `934040602000`
8	BOLT, WASHER,6x20 Part Number : `934040602007`
9	SREW, TAPING, 5X16 Part Number : `9390325380`
10	BOLT, FLANGE, 6X25 Part Number : `960010602507`
11	GROMMET, TENSIONER HOLE Part Number : `19623K0PD00`
