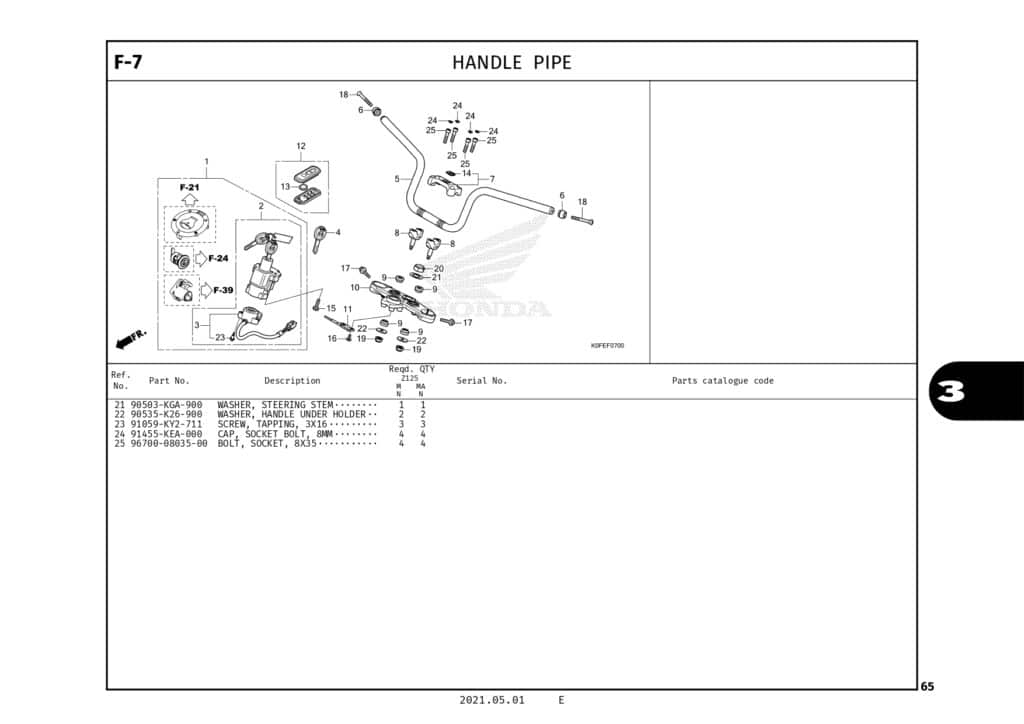

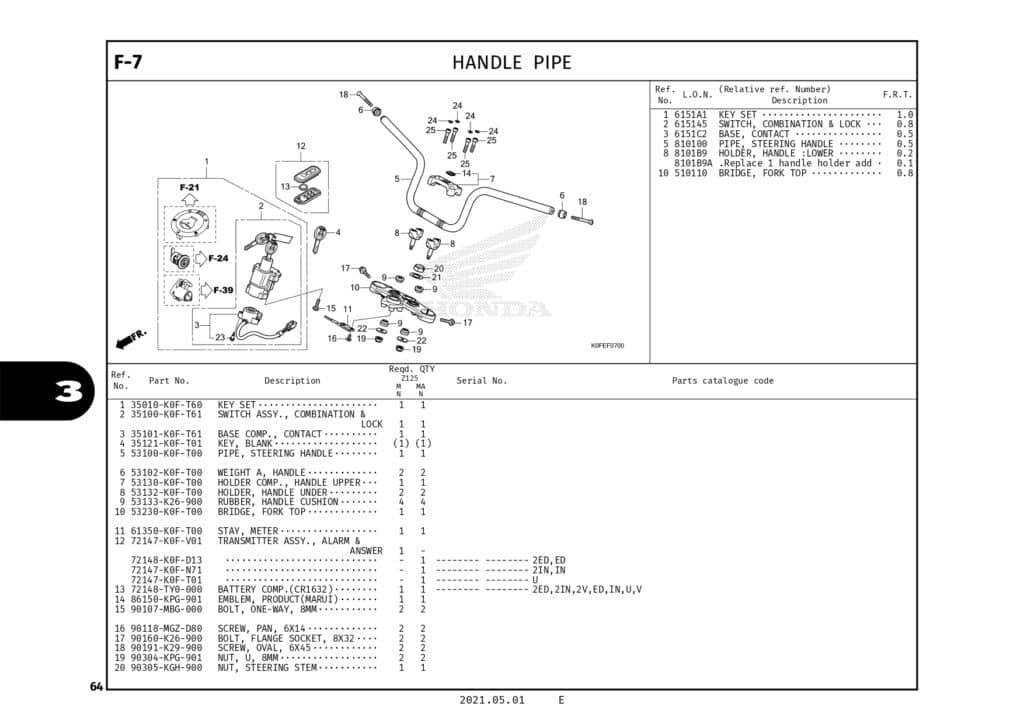

F-7 Handle Pipe – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	KEY SET Part Number : `35010K0FT60`
2	SWITCH ASSY COMB& Part Number : `35100K0FT61`
3	BASE COMP CONTACT Part Number : `35101K0FT61`
4	KEY, BLANK Part Number : `35121K0FT01`
5	PIPE, STEERING HANDLE Part Number : `53100K0FT00`
6	WEIGHT A, HANDLE Part Number : `53102K0FT00`
7	HOLDER COMP., HANDLE UPPER Part Number : `53130K0FT00`
8	HOLDER, HANDLE UNDER Part Number : `53132K0FT00`
9	RUBBER, HANDLE CUSHION Part Number : `53133K26900`
10	BRIDGE, FORK TOP Part Number : `53230K0FT00`
11	STAY, METER Part Number : `61350K0FT00`
12	72147K0FV01 Part Number : `72147K0FV01`
12	72148K0FD13 Part Number : `72148K0FD13`
12	TRANSMITTER ASSY Part Number : `72147K0FN71`
12	72147K0FT01 Part Number : `72147K0FT01`
13	35148K78N10 Part Number : `72148TY0000`
14	EMBLEM, WING MARK Part Number : `86150KPG901`
15	BOLT,ONE-WAY 8MM Part Number : `90107MBG000`
16	SCREW PAN 6X14 Part Number : `90118MGZD80`
17	BOLT, FLANGE SOCKET, 8X32 Part Number : `90160K26900`
18	SCREW OVAL 6X45 Part Number : `90191K29900`
19	NUT,U,8MM Part Number : `90304KPG901`
20	NUT,STRG STEM Part Number : `90305KGH900`
21	WASHER,STRG STEM Part Number : `90503KGA900`
22	WASHER HNDL UNDER Part Number : `90535K26900`
23	SCREW,TAPP 3X16 Part Number : `91059KY2711`
24	CAP,SOC.BOLT 8MM Part Number : `91455KEA000`
25	BOLT, SOCKET, 8X35 Part Number : `967000803500`
