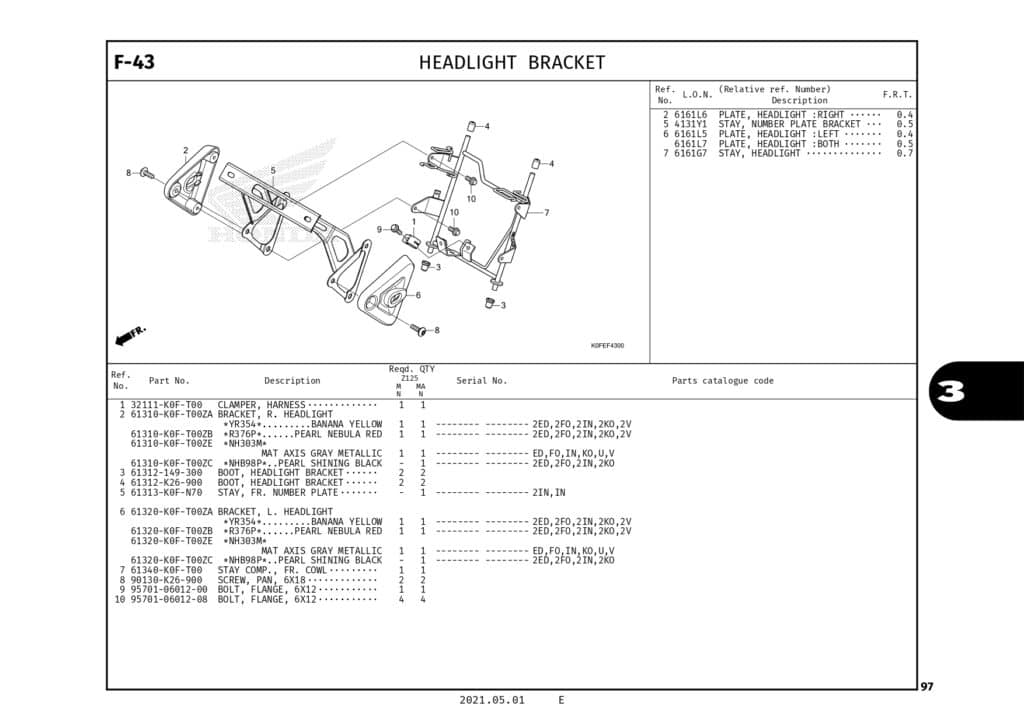

F-43 Headlight Bracket – Katalog Suku Cadang Honda Monkey 2021
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CLAMPER, HARNESS |
32111K0FT00 |
-
|
| 2 |
BRACKET, R. HEADLIGHT |
61310K0FT00ZA |
-
|
| 2 |
BRACKET, R. HEADLIGHT |
61310K0FT00ZB |
-
|
| 2 |
BRKT R HEADLIGHT |
61310K0FT00ZE |
-
|
| 2 |
BRACKET, R. HEADLIGHT |
61310K0FT00ZC |
-
|
| 3 |
BOOT HEADLIGHT |
61312149300 |
|
| 4 |
BOOT, HEADLIGHT BRACKET |
61312K26900 |
-
|
| 5 |
STAY FR NUMBER PL |
61313K0FN70 |
-
|
| 6 |
BRACKET, L. HEADLIGHT |
61320K0FT00ZA |
-
|
| 6 |
BRACKET, L. HEADLIGHT |
61320K0FT00ZB |
-
|
| 6 |
BRKT L HEADLIGHT |
61320K0FT00ZE |
-
|
| 6 |
BRACKET, L. HEADLIGHT |
61320K0FT00ZC |
-
|
| 7 |
STAY COMP., FR. COWL |
61340K0FT00 |
-
|
| 8 |
SCREW PAN 6X18 |
90130K26900 |
-
|
| 9 |
BOLT FLANGE 6X12 |
957010601200 |
|
| 10 |
BOLT FLANGE 6X12 |
957010601208 |
|
