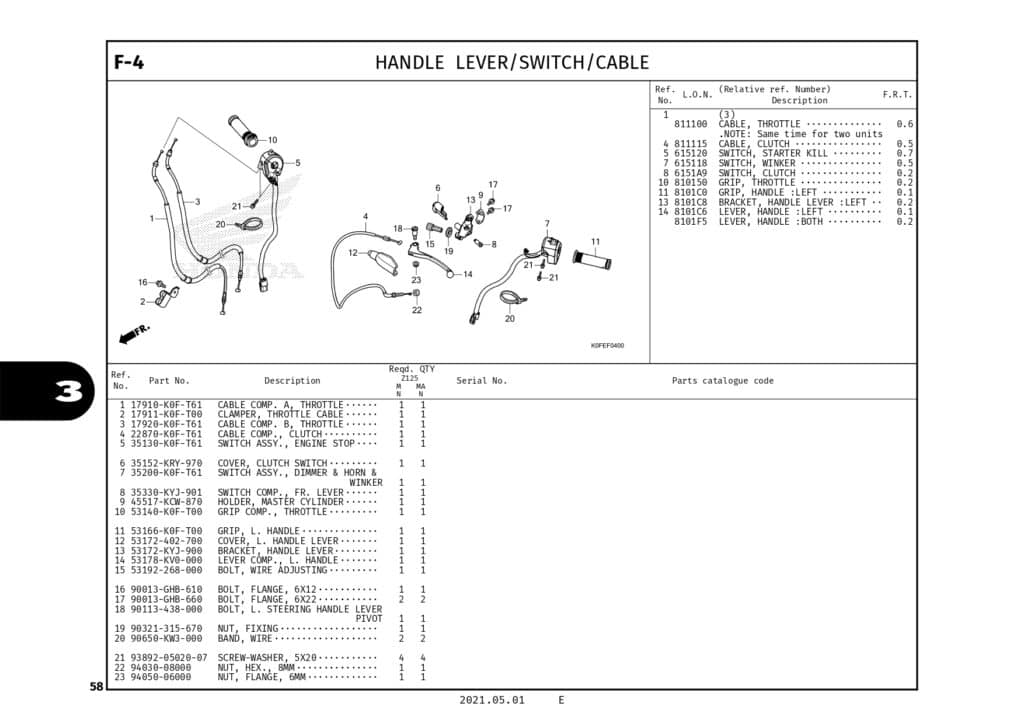

F-4 Handle Lever Switch Cable – Katalog Suku Cadang Honda Monkey 2021

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CABLE COMP A,THRO 17910K0FT61 -
2 CLAMPER, THROTTLE CABLE 17911K0FT00 -
3 CABLE COMP B,THRO 17920K0FT61 -
4 CABLE COMP,CLUTCH 22870K0FT61 -
5 SW ASSY ENG STOP 35130K0FT61 -
6 COVER,CLUTCH SW 35152KRY970 COVER,CLUTCH SW
7 SW ASSY DIM HORN 35200K0FT61 -
8 SW COMP,FR LEVER 35330KYJ901 -
9 HOLDER,M/C 45517KCW870 -
10 GRIP COMP THROT OVER 53140K0FT00 -
11 GRIP L HANDLE 53166K0FT00 -
12 COVER L HNDL LEV 53172402700 -
13 BRKT,HNDL LEVER 53172KYJ900 -
14 LEVER COMP L HANDLE 53178KV0000 -
15 BOLT,CLUTCH ADJ 53192268000 -
16 BOLT FLANGE SH 6X12 90013GHB610 -
17 BOLT FLANGE SH 6X 90013GHB660 -
18 BOLT L HDL 90113438000 BOLT L HDL
19 NUT,FIXING 90321315670 -
20 BAND, WIRE 90650KW3000 -
21 SCREW,WASHER 5X20 938920502007 SCREW,WASHER 5X20
22 NUT HEX 8MM 9403008000 NUT HEX 8MM
23 NUT,FLANGE 6MM 9405006000 NUT,FLANGE 6MM
