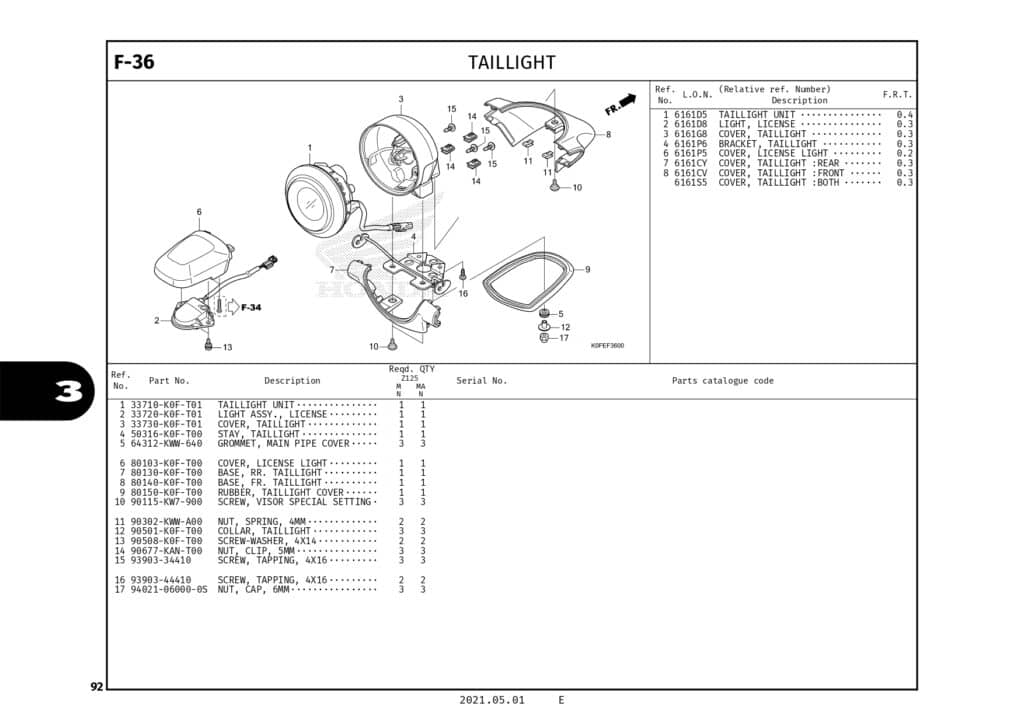

F-36 Taillight – Katalog Suku Cadang Honda Monkey 2021
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
TAILLIGHT UNIT |
33710K0FT01 |
-
|
| 2 |
LIGHT ASSY., LICENSE |
33720K0FT01 |
-
|
| 3 |
COVER, TAILLIGHT |
33730K0FT01 |
-
|
| 4 |
STAY, TAILLIGHT |
50316K0FT00 |
-
|
| 5 |
GROMMET M/P COVER |
64312KWW640 |
|
| 6 |
COVER, LICENSE LIGHT |
80103K0FT00 |
-
|
| 7 |
BASE, RR. TAILLIGHT |
80130K0FT00 |
-
|
| 8 |
BASE, FR. TAILLIGHT |
80140K0FT00 |
-
|
| 9 |
RUBBER, TAILLIGHT COVER |
80150K0FT00 |
-
|
| 10 |
SCREW VISOR SPC. |
90115KW7900 |
|
| 11 |
NUT SPRING 4MM |
90302KWWA00 |
|
| 12 |
COLLAR TAIL LIGHT |
90501K0FT00 |
-
|
| 13 |
SCREW&WASHER 4X14 |
90508K0FT00 |
-
|
| 14 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 15 |
SCREW TAPPING 4X16 |
9390334410 |
|
| 16 |
SCREW, TAPPING, 4X16 |
9390344410 |
-
|
| 17 |
NUT,BLIND 6MM |
94021060000S |
-
|
