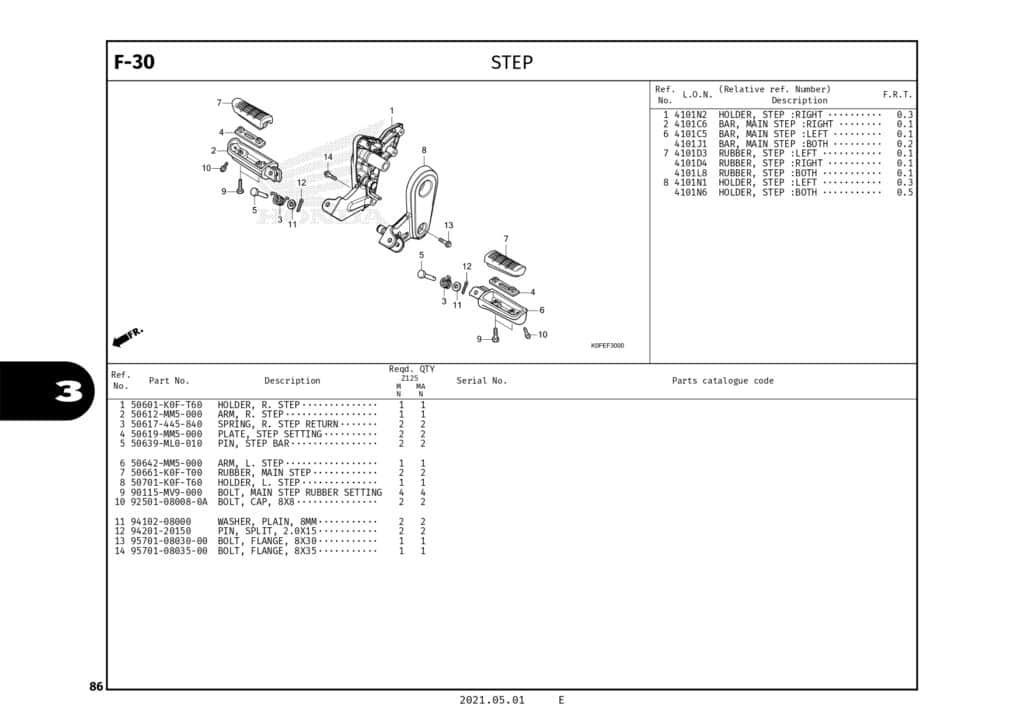

F-30 Step – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	HOLDER R STEP Part Number : `50601K0FT60`
2	ARM R STEP Part Number : `50612MM5000`
3	SPG.,STEP RETURN Part Number : `50617445840`
4	PLATE STEP SETTING Part Number : `50619MM5000`
5	PIN,STEP BAR Part Number : `50639ML0010`
6	ARM L STEP Part Number : `50642MM5000`
7	RUBBER, MAIN STEP Part Number : `50661K0FT00`
8	HOLDER L STEP Part Number : `50701K0FT60`
9	BOLT,MAIN STEP RUBBER SETTING Part Number : `90115MV9000`
10	BOLT.HEX,CAP 8X8 Part Number : `92501080080A`
11	WASHER,PLAIN 8MM Part Number : `9410208000`
12	PIN COTTER 2.0X15 Part Number : `9420120150`
13	BOLT FLANGE 8X30 Part Number : `957010803000`
14	BOLT,FLANGE 8X35 Part Number : `957010803500`
