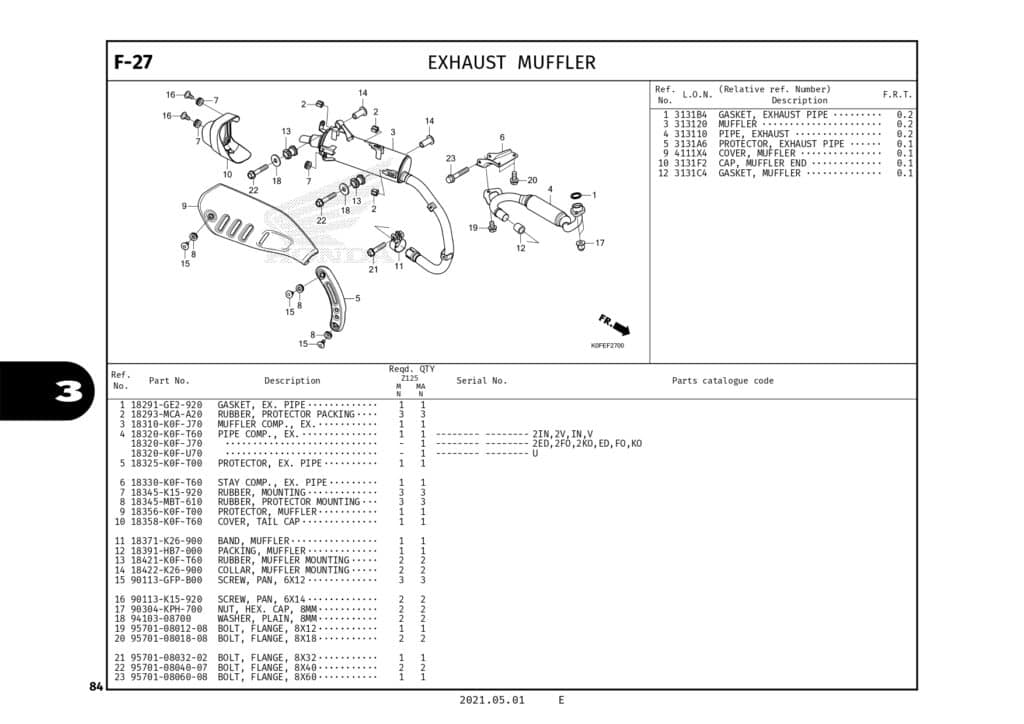

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | GASKET EXH PIPE | 18291GE2920 |
|
| 2 | RUBBER PROTECTOR PACK | 18293MCAA20 |
|
| 3 | MUFFLLER COMP EXH | 18310K0FJ70 | - |
| 4 | PIPE COMP EXH | 18320K0FT60 | - |
| 4 | 18320K0FJ70 | 18320K0FJ70 | - |
| 4 | 18320K0FU70 | 18320K0FU70 | - |
| 5 | PROTECTOR, EX. PIPE | 18325K0FT00 | - |
| 6 | STAY COMP EXH PIP | 18330K0FT60 | - |
| 7 | RUBBER,MOUNT | 18345K15920 |
|
| 8 | RUBBER PROTECTOR MOUNT | 18345MBT610 |
|
| 9 | PROTECTOR, MUFFLER | 18356K0FT00 | - |
| 10 | COVER,TAIL CAP | 18358K0FT60 | - |
| 11 | BAND MUFFLER | 18371K26900 |
|
| 12 | PACKING MUFFLER | 18391HB7000 |
|
| 13 | RUBBER MUFF MOUNT | 18421K0FT60 | - |
| 14 | COLLAR, MUFFLER MOUNTING | 18422K26900 | - |
| 15 | SCREW, PAN, 6X12 | 90113GFPB00 | - |
| 16 | SCREW,PAN 6X14 | 90113K15920 |
|
| 17 | NUT HEX CAP,8MM | 90304KPH700 |
|
| 18 | WASHER, PLAIN, 8MM | 9410308700 |
|
| 19 | BOLT FLANGE 8X12 | 957010801208 | - |
| 20 | BOLT, FLANGE, 8X18 | 957010801808 | - |
| 21 | BOLT FLANGE 8X32 | 957010803202 |
|
| 22 | BOLT FLANGE 8X40 | 957010804007 |
|
| 23 | BOLT FLANGE 8X60 | 957010806008 | - |
