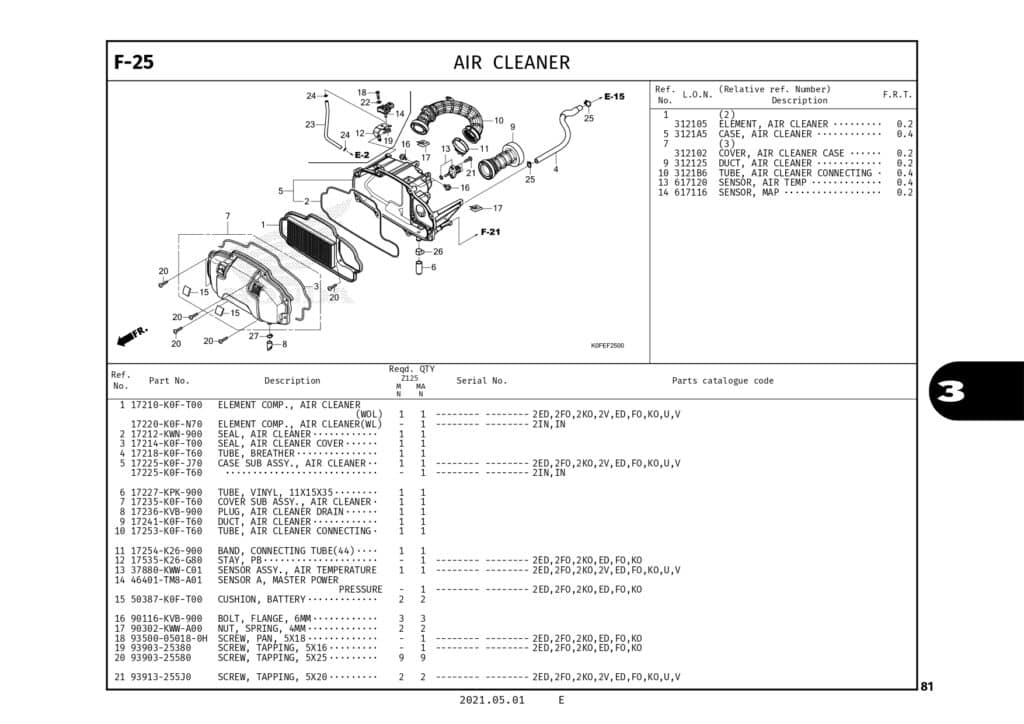

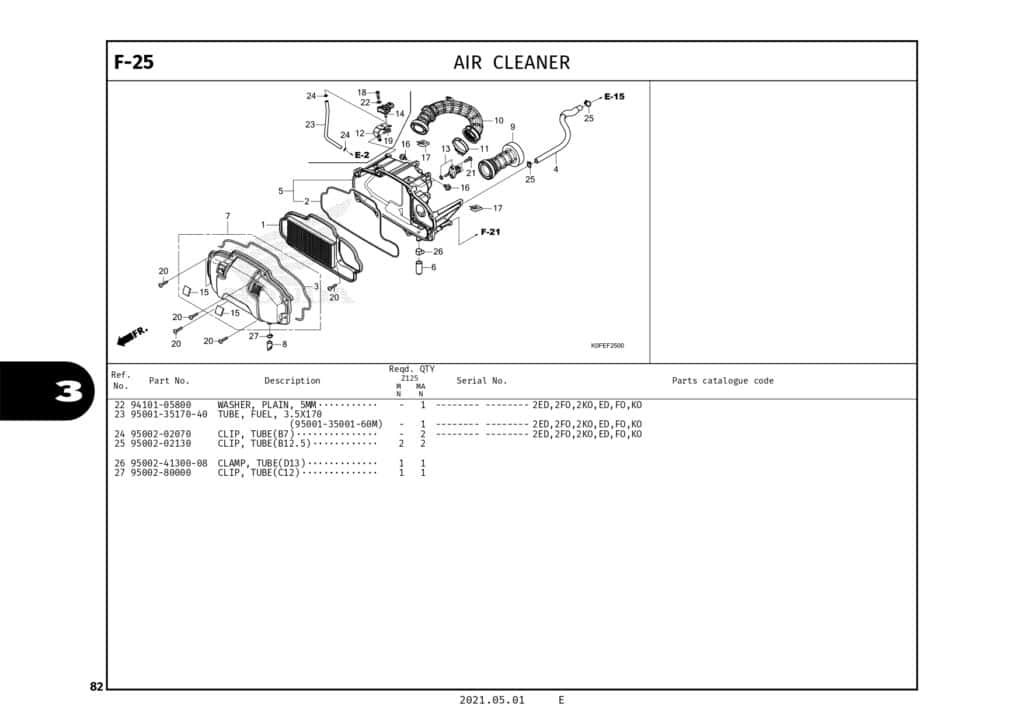

F-25 Air Cleaner – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	ELEMENT COMP., AIR CLEANER Part Number : `17210K0FT00`
1	ELEMENT COMP AIR/ Part Number : `17220K0FN70`
2	SEAL,AIR/C Part Number : `17212KWN900`
3	SEAL, AIR CLEANER COVER Part Number : `17214K0FT00`
4	TUBE BREATHER Part Number : `17218K0FT60`
5	17225K0FJ70 Part Number : `17225K0FJ70`
5	CASE SUB ASSY AIR Part Number : `17225K0FT60`
6	V.TUBE 11X15X35 Part Number : `17227KPK900`
7	COVER SUB ASSY AI Part Number : `17235K0FT60`
8	PLUG A/C DRAIN Part Number : `17236KVB900`
9	DUCT AIR/C Part Number : `17241K0FT60`
10	TUBE AIR/C CONNEC Part Number : `17253K0FT60`
11	BAND, CONNECTING TUBE(44) Part Number : `17254K26900`
12	17535K26G80 Part Number : `17535K26G80`
13	SENSOR ASSY., AIR TEMP Part Number : `37880KWWC01`
14	SENSOR,M/P PRESSURE Part Number : `46401TM8A01`
15	CUSHION, BATTERY Part Number : `50387K0FT00`
16	BOLT FLANGE 6MM Part Number : `90116KVB900`
17	NUT SPRING 4MM Part Number : `90302KWWA00`
18	93500050180H Part Number : `93500050180H`
19	SCREW, TAPPING, 5X16 Part Number : `9390325380`
20	SCREW, TAPPING 5X25 Part Number : `9390325580`
21	SCREW, TAPPING, 5X20 Part Number : `93913255J0`
22	WASHER PLAIN 5MM Part Number : `9410105800`
23	950013517040 Part Number : `950013517040`
24	9500202071 Part Number : `9500202070`
25	CLIP, TUBE(B12.5) Part Number : `9500202130`
26	CLAMP D 13.0 TUBE Part Number : `950024130008`
27	CLIP, TUBE(C12) Part Number : `9500280000`
