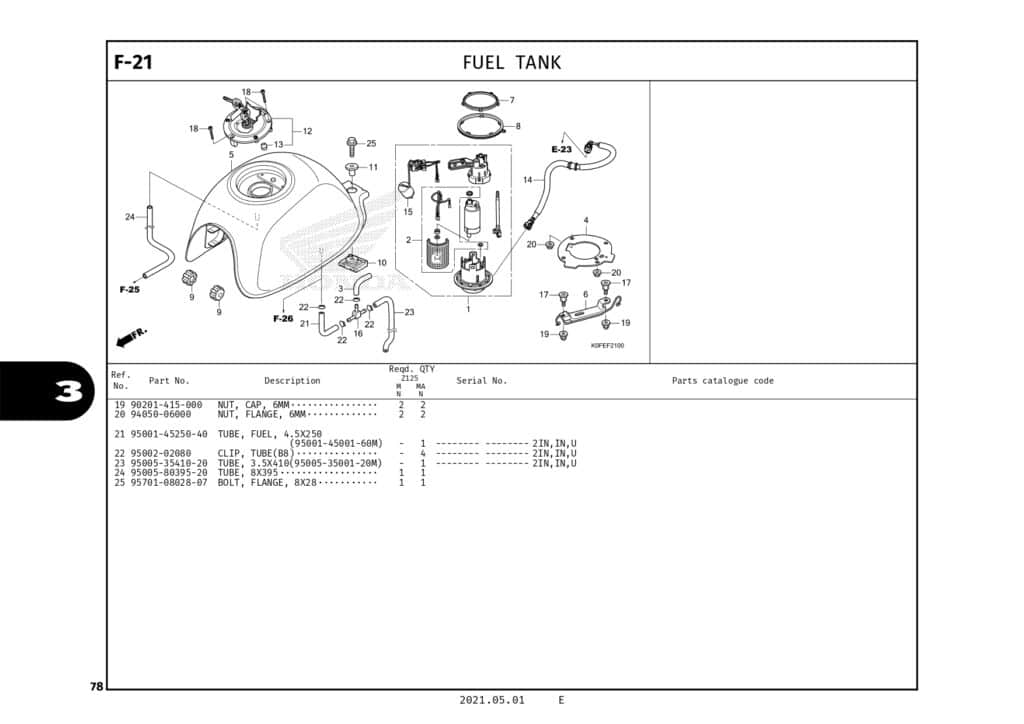

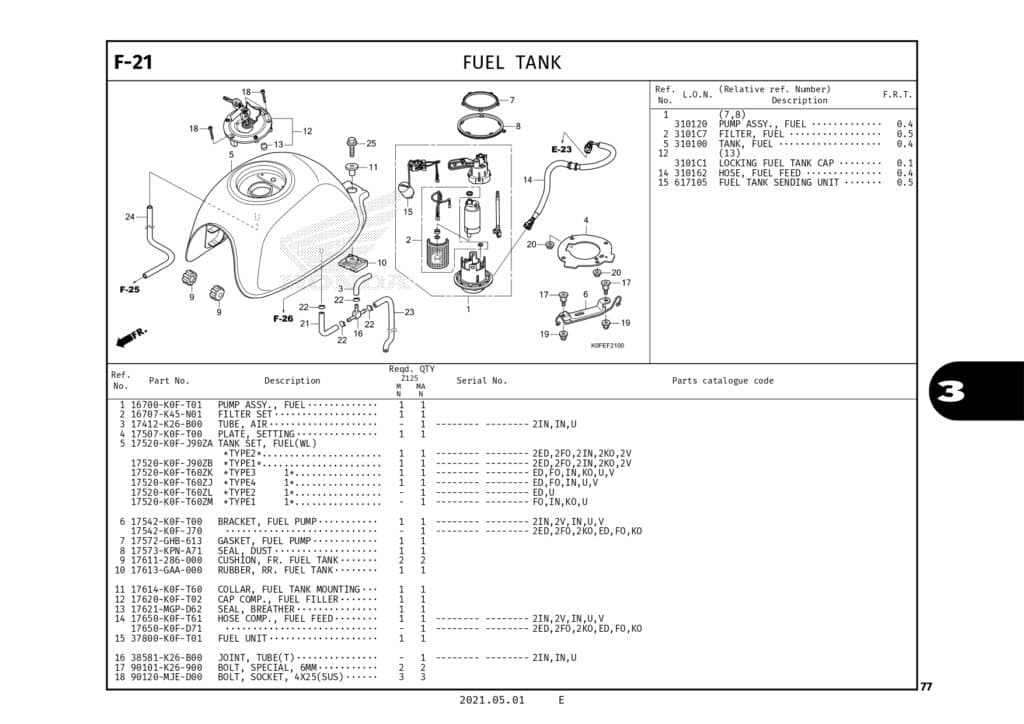

F-21 Fuel Tank – Katalog Suku Cadang Honda Monkey 2021
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
PUMP ASSY., FUEL |
16700K0FT01 |
-
|
| 2 |
FILTER SET |
16707K45N01 |
|
| 3 |
TUBE, AIR |
17412K26B00 |
-
|
| 4 |
PLATE, SETTING |
17507K0FT00 |
-
|
| 5 |
SET ILLUS,FUEL TA |
17520K0FJ90ZA |
-
|
| 5 |
SET ILLUS,FUEL TA |
17520K0FJ90ZB |
-
|
| 5 |
SET ILLUS,FUEL TA |
17520K0FT60ZK |
-
|
| 5 |
SET ILLUS,FUEL TA |
17520K0FT60ZJ |
-
|
| 5 |
17520K0FT60ZL |
17520K0FT60ZL |
-
|
| 5 |
SET ILLUS,FUEL TA |
17520K0FT60ZM |
-
|
| 6 |
BRACKET, FUEL PUMP |
17542K0FT00 |
-
|
| 6 |
17542K0FJ70 |
17542K0FJ70 |
-
|
| 7 |
GASKET, FUEL PUMP |
17572GHB613 |
-
|
| 8 |
SEAL DUST |
17573KPNA71 |
-
|
| 9 |
CUSHION FUEL TANK |
17611286000 |
|
| 10 |
RUBBER, RR. FUEL TANK |
17613GAA000 |
-
|
| 11 |
COLLAR FUEL TANK |
17614K0FT60 |
-
|
| 12 |
CAP COMP FUEL FIL |
17620K0FT02 |
-
|
| 13 |
SEAL, BREATHER |
17621MGPD62 |
|
| 14 |
HOSE COMP FUEL FE |
17650K0FT61 |
-
|
| 14 |
17650K0FD71 |
17650K0FD71 |
-
|
| 15 |
FUEL UNIT |
37800K0FT01 |
-
|
| 16 |
T JOINT TUBE |
38581K26B00 |
-
|
| 17 |
BOLT, SPECIAL, 6MM |
90101K26900 |
-
|
| 18 |
BOLT, SOCKET, 4X25(SUS) |
90120MJED00 |
-
|
| 19 |
NUT,CAP 6MM |
90201415000 |
-
|
| 20 |
NUT,FLANGE 6MM |
9405006000 |
|
| 21 |
TUBE, FUEL, 4.5X250 |
950014525040 |
-
|
| 22 |
CLIP B8,TUBE |
9500202080 |
|
| 23 |
TUBE 3.5X410 |
950053541020 |
-
|
| 24 |
TUBE 8X395 |
950058039520 |
-
|
| 25 |
BOLT, FLANGE, 8X28 |
957010802807 |
-
|
