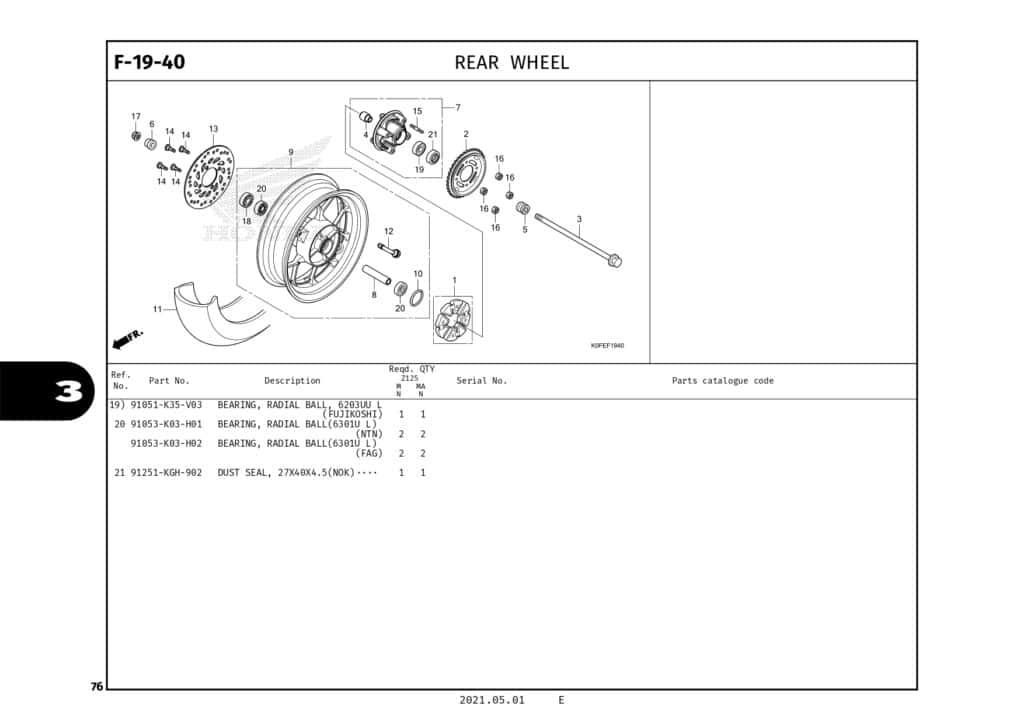

F-19-40 Rear Wheel – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	DAMPER SET WHEEL Part Number : `06410KWB600`
2	SPRKT COMP FINAL Part Number : `41200K0FT61`
3	AXLE, RR. WHEEL Part Number : `42301K0FT00`
4	SLEEVE REAR WHEEL Part Number : `42303KWB600`
5	COLLAR, L. RR. WHEEL SIDE Part Number : `42311K0FT00`
6	COLLAR, R. RR. WHEEL SIDE Part Number : `42312K0FT00`
7	FLANGE SUB ASSY F Part Number : `42615K26G00`
7	42615K26G70 Part Number : `42615K26G70`
8	COLLAR, RR. AXLE DISTANCE Part Number : `42620K26900`
9	WHEEL SUB ASSY RE Part Number : `42650K0FT60ZA`
10	O-RING 40.5X3 Part Number : `42653001004`
11	TIRE RR(VEE) Part Number : `42711K0FT02`
12	VALVE, RIM(DUNLOP) Part Number : `42753KJ9004`
13	DISK REAR BRAKE Part Number : `43251K26G01`
14	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
15	BOLT STUD 10X22 Part Number : `90128K26G00`
16	NUT U10MM Part Number : `90304KGH901`
17	NUT U 12MM Part Number : `90306KWN701`
18	OIL SEAL 26X37X6 Part Number : `90753051003`
19	BEARING, RADIAL BALL, 6203UU Part Number : `91051K35V02`
19	BRG BALL RADIAL 6 Part Number : `91051K35V03`
20	BEARING, RADIAL BALL(6301U L) Part Number : `91053K03H01`
20	BEARINGBALL RADIAL 6301U L Part Number : `91053K03H02`
21	DUST SEAL,27X40X4.5 Part Number : `91251KGH902`
