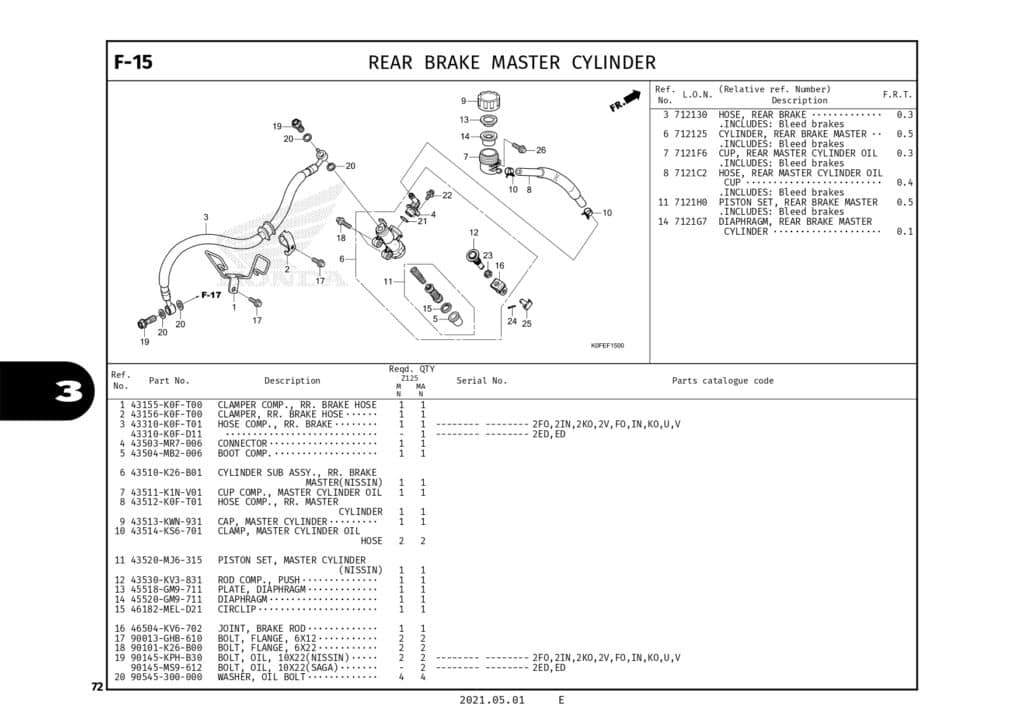

F-15 Rear Brake Master Cylinder – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	CLAMPER COMP RR BRAKE HOSE Part Number : `43155K0FT00`
2	CLAMPER, RR. BRAKE HOSE Part Number : `43156K0FT00`
3	HOSE COMP RR BRK RR Part Number : `43310K0FT01`
4	CALIPER SUB ASSY., RR. Part Number : `43310K0FD11`
5	CONNCTR.NISSIN Part Number : `43503MR7006`
6	BOOT COMP Part Number : `43504MB2006`
7	CYLINDER SUB ASSY RR. BRAKE Part Number : `43510K26B01`
8	CUP COMP M/C OIL Part Number : `43511K1NV01`
9	HOSE COMP., RR. MASTER Part Number : `43512K0FT01`
10	CAP,M/C Part Number : `43513KWN931`
11	CLMP,CYLN.OIL Part Number : `43514KS6701`
12	PISTON,CYLINDER Part Number : `43520MJ6315`
13	ROD COMP., PUSH Part Number : `43530KV3831`
14	PLATE DIAPHRAGM Part Number : `45518GM9711`
15	DIAPHRAGM Part Number : `45520GM9711`
16	CIRCLIP M/C Part Number : `46182MELD21`
17	JOINT BRAKE ROD Part Number : `46504KV6702`
18	BOLT FLANGE SH 6X12 Part Number : `90013GHB610`
19	BOLT, FLANGE, 6X22(SH) Part Number : `90101K26B00`
20	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
21	BOLT OIL 10X22 Part Number : `90145MS9612`
22	WASHER OIL BOLT Part Number : `90545300000`
23	O-RING,14.8X2.4 Part Number : `91212422006`
24	SCREW WASHER 4X12 Part Number : `938930401217`
25	NUT,HEX 8MM Part Number : `94002080000S`
26	PIN SPLIT Part Number : `9420120120`
27	PIN D JOINT Part Number : `9501554000`
28	BOLT FLANGE 6X14 Part Number : `957010601400`
