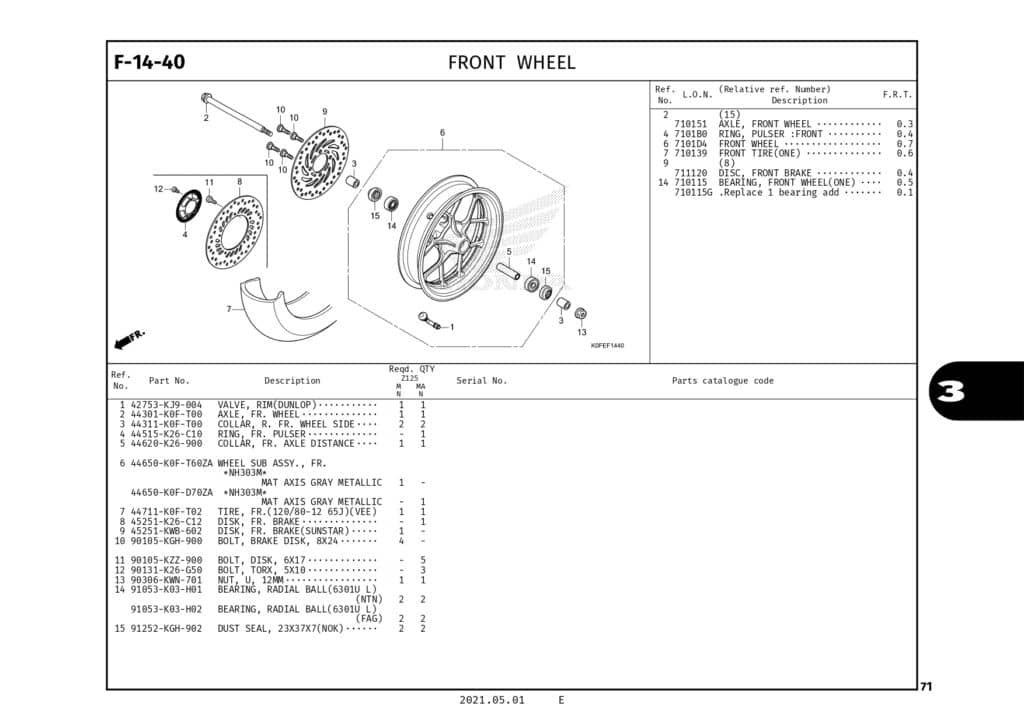

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | VALVE, RIM(DUNLOP) | 42753KJ9004 | - |
| 2 | AXLE, FR. WHEEL | 44301K0FT00 | - |
| 3 | COLLAR, R. FR. WHEEL SIDE | 44311K0FT00 | - |
| 4 | RING,FR PULSER | 44515K26C10 |
|
| 5 | COLLAR FR AXLE | 44620K26900 | - |
| 6 | 42 | 44650K0FT60ZA | - |
| 6 | WHEEL SUB ASSY FR | 44650K0FD70ZA | - |
| 7 | TIRE FR(VEE) | 44711K0FT02 | - |
| 8 | DISK FRONT BRAKE | 45251K26C12 | - |
| 9 | DISK, FR. BRAKE | 45251KWB602 |
|
| 10 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 11 | BOLT DISK 6X17 R 8X20 | 90105KZZ900 |
|
| 12 | BOLT TORX 5X10 | 90131K26G50 | - |
| 13 | NUT U 12MM | 90306KWN701 | - |
| 14 | BEARING, RADIAL BALL(6301U L) | 91053K03H01 |
|
| 14 | BEARINGBALL RADIAL 6301U L | 91053K03H02 |
|
| 15 | DUST SEAL, 23X37X7 | 91252KGH902 |
|
