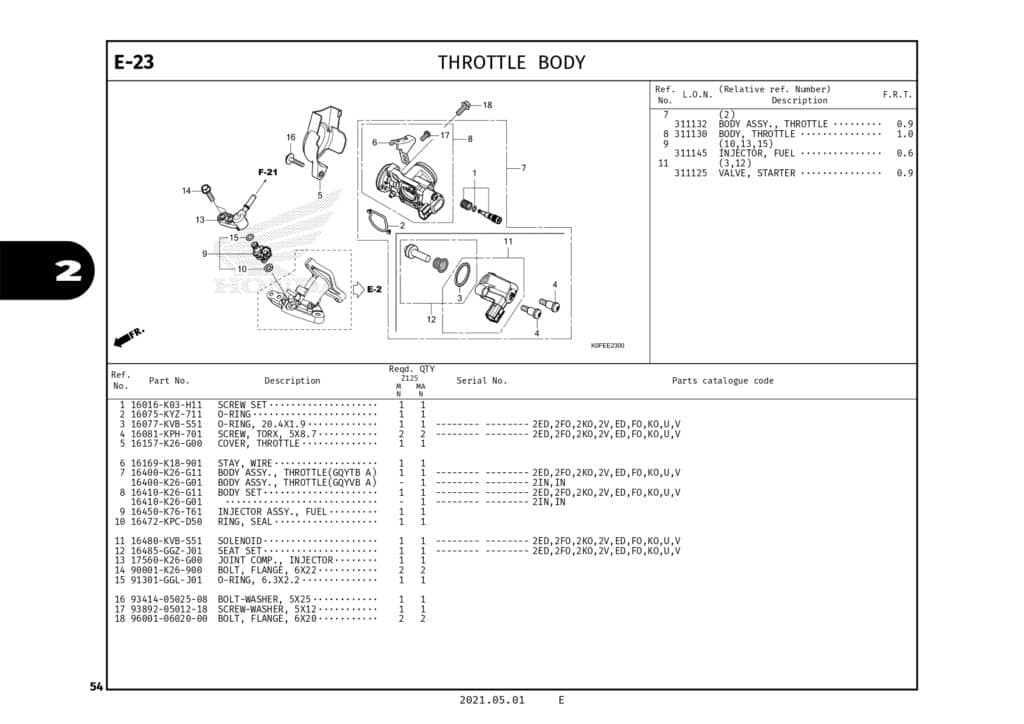

E-23 Throttle Body – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	SCREW SET Part Number : `16016K03H11`
2	O-RING THROTTLE BODY Part Number : `16075KYZ711`
3	O-RING 20,4X1,9 Part Number : `16077KVBS51`
4	SCREW, TORX, 5X8.7 Part Number : `16081KPH701`
5	COVER THROTTLE Part Number : `16157K26G00`
6	STAY WIRE Part Number : `16169K18901`
7	16400K26G11 Part Number : `16400K26G11`
8	THROTTLEBODY ASSY Part Number : `16400K26G01`
9	16410K26G11 Part Number : `16410K26G11`
10	BODY SET Part Number : `16410K26G01`
11	INJECTOR ASSY FUE ASSY Part Number : `16450K76T61`
12	RING, SEAL Part Number : `16472KPCD50`
13	SOLENOID SET Part Number : `16480KVBS51`
14	SEAT SET Part Number : `16485GGZJ01`
15	JOINT COMP INJECT Part Number : `17560K26G00`
16	BOLT, FLANGE, 6X22 Part Number : `90001K26900`
17	O-RING, 6.3X2.2 Part Number : `91301GGLJ01`
18	BOLT-WASHER, 5X25 Part Number : `934140502508`
19	SCREW WASHER 5X12 Part Number : `938920501218`
20	BOLT FLANGE 6X20 Part Number : `960010602000`
