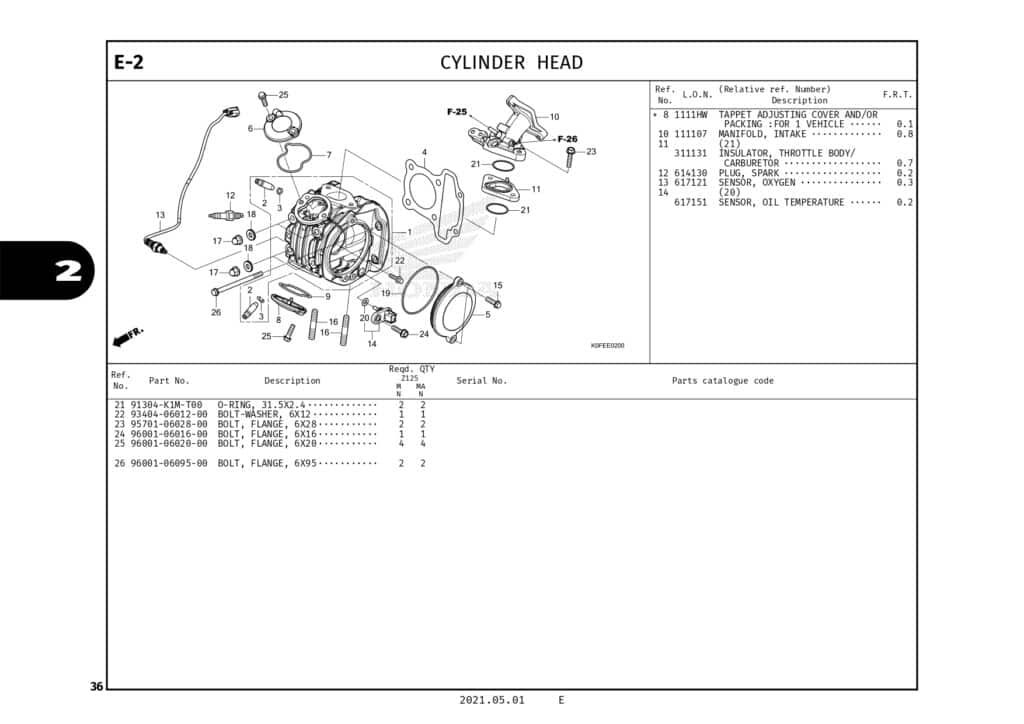

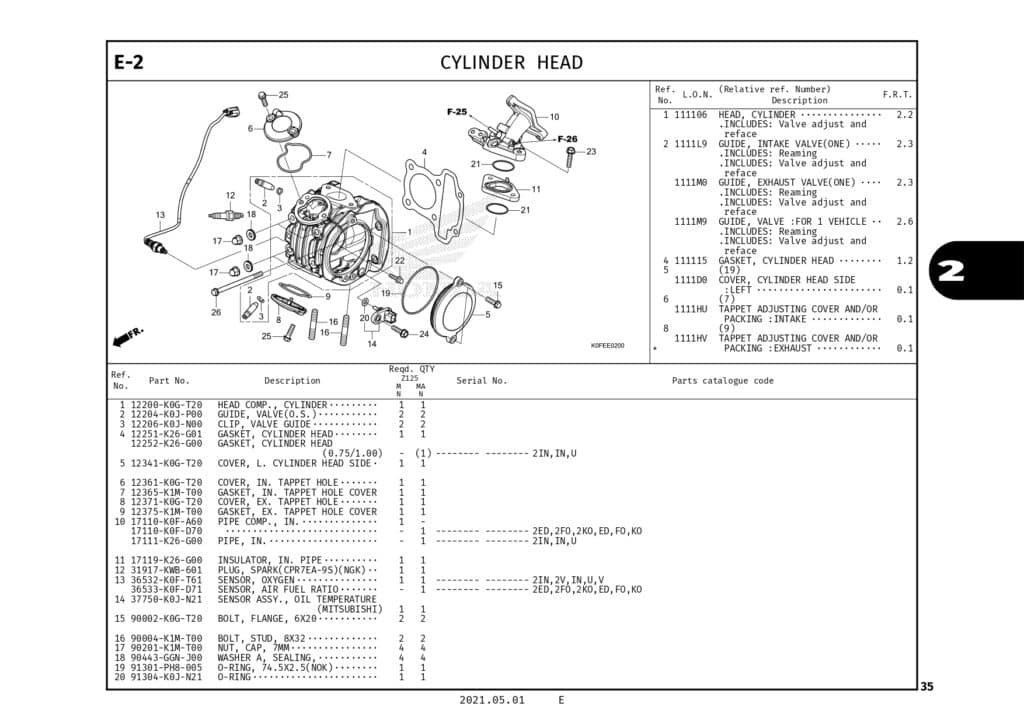

E-2 Cylinder Head – Katalog Suku Cadang Honda Monkey 2021
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
HEAD COMP CYLINDER |
12200K0GT20 |
-
|
| 2 |
GUIDE,VALVE(OVER SIZE) |
12204K0JP00 |
|
| 3 |
CLIP,VALVE GUIDE |
12206K0JN00 |
|
| 4 |
GASKET CYLINDER H |
12251K26G01 |
-
|
| 5 |
GASKET CYLINDER H |
12252K26G00 |
-
|
| 6 |
COVER L CYLINDER |
12341K0GT20 |
-
|
| 7 |
COVER IN TAPPET H |
12361K0GT20 |
-
|
| 8 |
GASKET IN TAPPET |
12365K1MT00 |
-
|
| 9 |
COVER EXH TAPPET |
12371K0GT20 |
-
|
| 10 |
GASKET EXH TAPPET |
12375K1MT00 |
-
|
| 11 |
17110K0FA60 |
17110K0FA60 |
-
|
| 11 |
17110K0FD70 |
17110K0FD70 |
-
|
| 12 |
PIPE INLET |
17111K26G00 |
-
|
| 13 |
INSULATOR INLET P |
17119K26G00 |
-
|
| 14 |
SPARK PLUG CPR7EA |
31917KWB601 |
-
|
| 15 |
SENSOR OXYGEN |
36532K0FT61 |
-
|
| 16 |
36533K0FD71 |
36533K0FD71 |
-
|
| 17 |
SENSOR ASSY,T-OIL |
37750K0JN21 |
|
| 18 |
BOLT FLANGE S-SHD |
90002K0GT20 |
-
|
| 19 |
BOLT STUD 8X25 |
90004K1MT00 |
-
|
| 20 |
NUT CAP 7MM |
90201K1MT00 |
-
|
| 21 |
WASHER A SEALING |
90443GGNJ00 |
-
|
| 22 |
91301K73V81 |
91301PH8005 |
|
| 23 |
O-RING |
91304K0JN21 |
-
|
| 23 |
O-RING 31.5X2.4 |
91304K1MT00 |
-
|
| 24 |
BOLT WASHER 6X12 |
934040601200 |
|
| 25 |
BOLT FLANGE 6X28 |
957010602800 |
|
| 26 |
BOLT FLANGE SH 6X16 |
960010601600 |
|
| 27 |
BOLT FLANGE 6X20 |
960010602000 |
|
| 28 |
BOLT,FLANGE,6X95 |
960010609500 |
-
|
