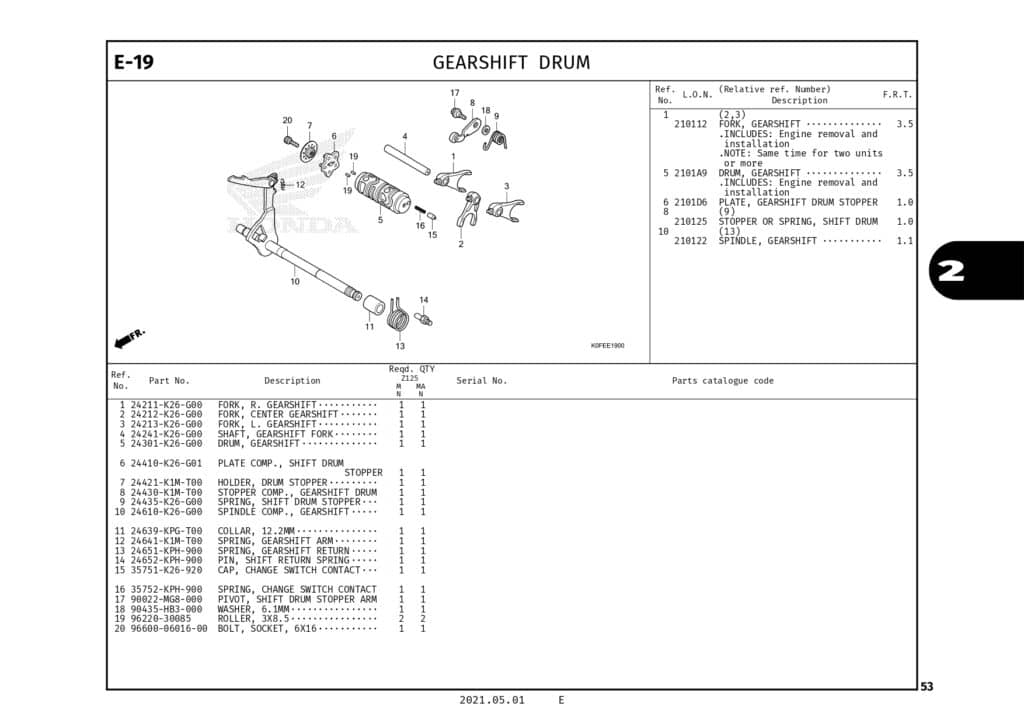

E-19 Gearsift Drum – Katalog Suku Cadang Honda Monkey 2021

#	Informasi Produk	Visual
1	FORK R GEAR SHIFT Part Number : `24211K26G00`
2	FORK C GEAR SHIFT Part Number : `24212K26G00`
3	FORK L GEAR SHIFT Part Number : `24213K26G00`
4	SHAFT GEAR SHIFT Part Number : `24241K26G00`
5	DRUM GEAR SHIFT Part Number : `24301K26G00`
6	PLATE COMP SHIFT Part Number : `24410K26G01`
7	HOLDER DRUM STOPP Part Number : `24421K1MT00`
8	STOPPER COMP GEAR Part Number : `24430K1MT00`
9	SPG SHIFT DRUM ST Part Number : `24435K26G00`
10	SPINDLE COMP GEAR Part Number : `24610K26G00`
11	COLLAR, 12.2MM Part Number : `24639KPGT00`
12	SPG GEAR SHIFT AR Part Number : `24641K1MT00`
13	SPRING GEAR SHIFT RETURN Part Number : `24651KPH900`
14	PIN SHIFT RETURN SPRING Part Number : `24652KPH900`
15	CAP CONTACT CHANG Part Number : `35751K26920`
16	SPRINGCONTACTCHANGESW Part Number : `35752KPH900`
17	PIVOT,SFT DRUM STOP.ARM Part Number : `90022MG8000`
18	WASHER 6.1MM Part Number : `90435HB3000`
19	ROLLER,3X8.5 Part Number : `9622030085`
20	BOLT, SOCKET, 6X16 Part Number : `966000601600`
