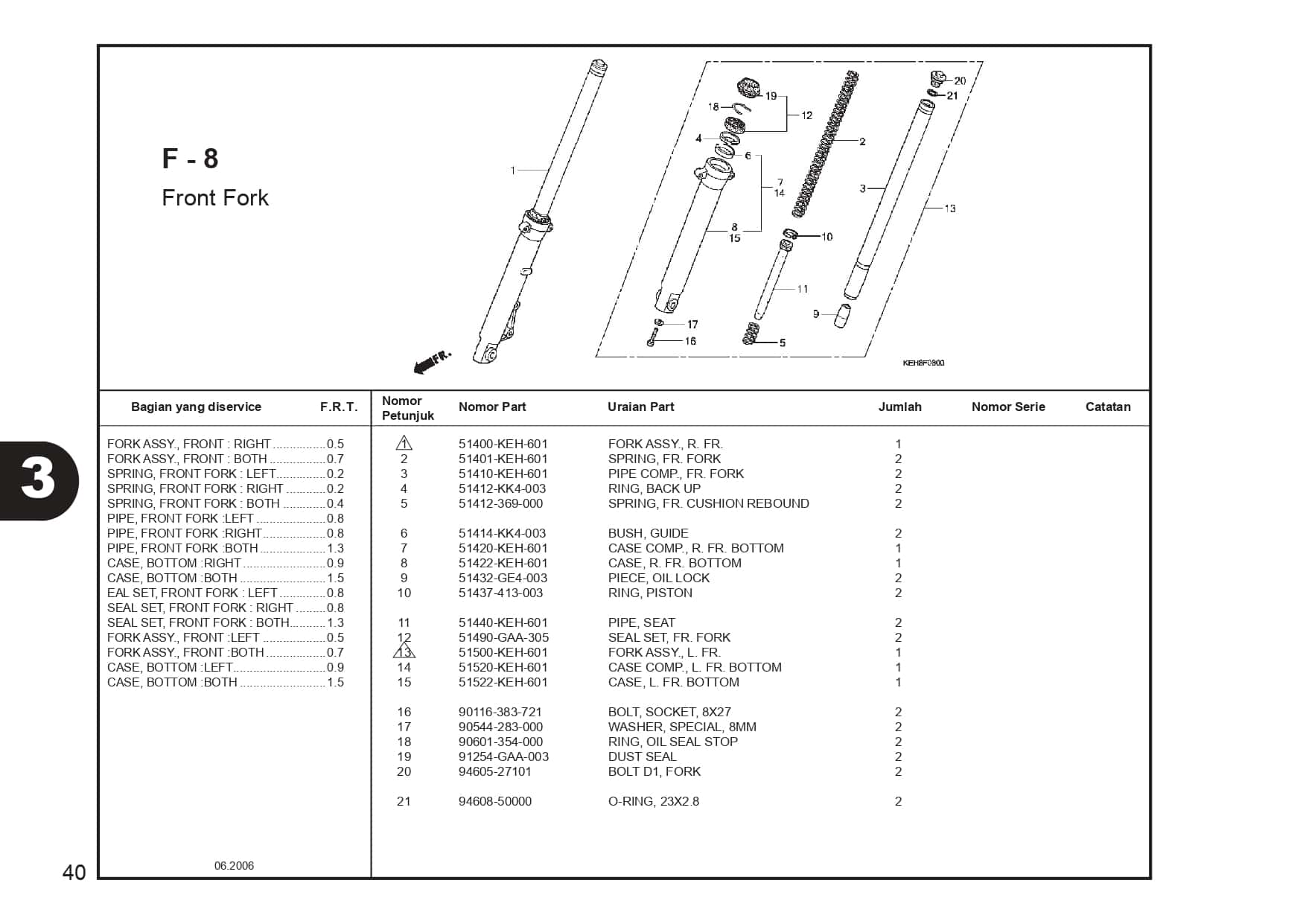

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY R FR | 51400KEH601 | - |
| 2 | SPRING FR | 51401KEH601 |
|
| 3 | PIPE COMP FR FORK | 51410KEH601 |
|
| 4 | RING,BACK UP | 51412KK4003 |
|
| 5 | SPRING,REBOUND LBL | 51412369000 |
|
| 6 | 51414KK4003 | 51414KK4003 | - |
| 7 | CASE COMP R FR BOTTOM | 51420KEH601 | - |
| 8 | 51422KEH601 | 51422KEH601 | - |
| 9 | PIECE OIL LOCK | 51432GE4003 |
|
| 10 | RING,PISTON | 51437413003 | - |
| 11 | PIPE,SEAT | 51440KEH601 | - |
| 12 | SEAL SET FR FORK | 51490GAA305 |
|
| 13 | FORK ASSY L FR | 51500KEH601 | - |
| 14 | CASE COMP L FR BOTTOM | 51520KEH601 | - |
| 15 | 51522KEH601 | 51522KEH601 | - |
| 16 | BOLT,SOCKET 8MM | 90116383721 |
|
| 17 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 18 | RING,OIL SEALSTOP | 90601354000 |
|
| 19 | DUST SEAL FR FORK | 91254GAA003 |
|
| 20 | BOLT FR FORK | 9460527101 |
|
| 21 | O-RING,23X2.8 | 9460850000 |
|
