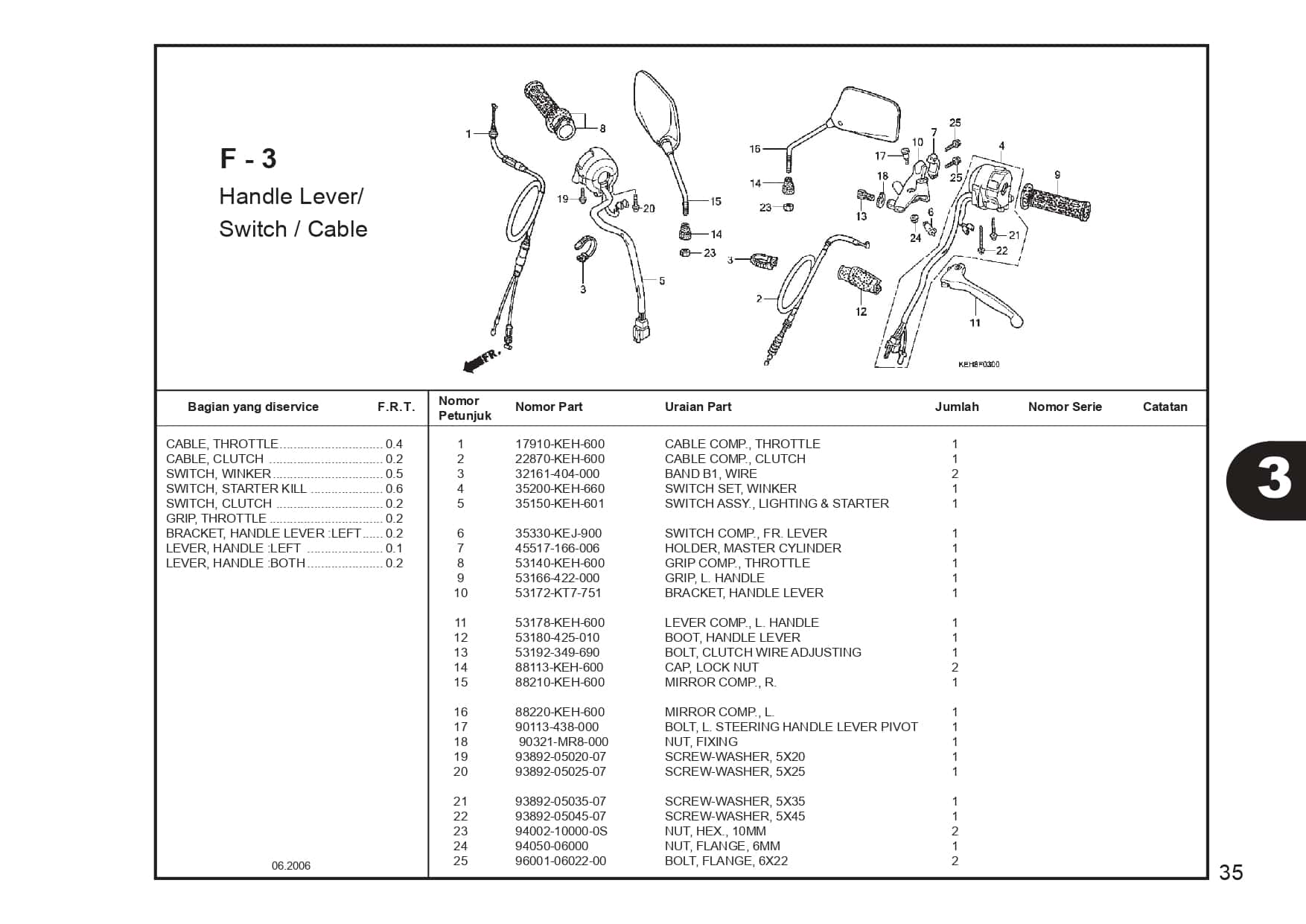

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP.,THROTLE | 17910KEH600 |
|
| 2 | CABLE COMP CLUTCH | 22870KEH600 |
|
| 3 | BAND B1 WIRE /K5 | 32161404000 |
|
| 4 | SWITCH ASSY WINKER | 35200KEH660 |
|
| 5 | SWITCH ASSY START | 35150KEH601 |
|
| 6 | 35330KEJ900 | 35330KEJ900 | - |
| 7 | HOLDER MASTER CYL | 45517166006 |
|
| 8 | GRIP COMP R THROTTLE | 53140KEH600 |
|
| 9 | GRIP L HDL | 53166422000 |
|
| 10 | BRACKET, HANDLE LEVER | 53172KT7751 |
|
| 11 | LEVER COMP L HDL | 53178KEH601 |
|
| 12 | 53180K3BH00 | 53180K3BH00 |
|
| 13 | BOLT WIRE ADJ | 53192349690 |
|
| 14 | CAP, LOCK NUT | 88113KEH600 |
|
| 15 | MIRROR COMP R | 88210KEH600 |
|
| 16 | MIRROR COMP L | 88220KEH600 |
|
| 17 | BOLT L HDL | 90113438000 |
|
| 18 | NUT,FIXING | 90321MR8000 |
|
| 19 | SCREW,WASHER 5X20 | 938920502007 |
|
| 20 | SCREW,WASHER 5X25 | 938920502507 |
|
| 21 | SCREW WASHER 5X35 | 938920503507 |
|
| 22 | SCREW WASHER 5X45 | 938920504507 |
|
| 23 | NUT HEX 10MM | 94002100000S |
|
| 24 | NUT,FLANGE 6MM | 9405006000 |
|
| 25 | BOLT FLANGE 6X22 | 960010602200 |
|
