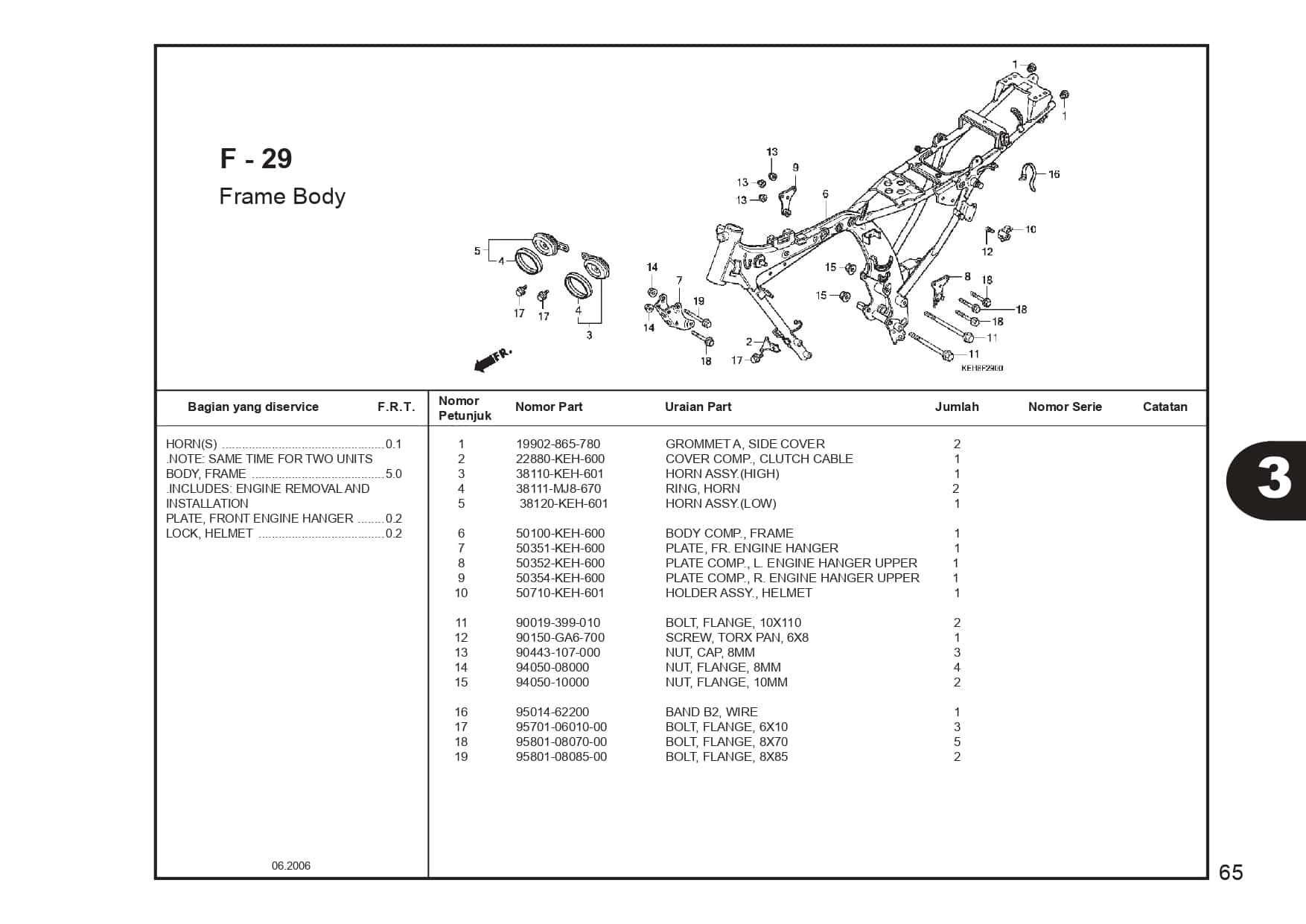

F-29 Frame Body – Katalog Suku Cadang Honda Mega Pro KEH
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GROMMET A SIDE COVER |
19902865780 |
-
|
| 2 |
22880KEH600 |
22880KEH600 |
-
|
| 3 |
HORN ASSY (HIGH) |
38110KEH601 |
|
| 4 |
RING HORN |
38111MJ8670 |
-
|
| 5 |
HORN ASSY (LOW) |
38120KEH601 |
-
|
| 6 |
50100KEH600 |
50100KEH600 |
-
|
| 7 |
50351KEH600 |
50351KEH600 |
-
|
| 8 |
50352KEH600 |
50352KEH600 |
-
|
| 9 |
50354KEH600 |
50354KEH600 |
-
|
| 10 |
50710KEH601 |
50710KEH601 |
-
|
| 11 |
BOLT,FLANGE10X110 |
90019399010 |
|
| 12 |
SCREW PAN 6X8 |
90150GA6700 |
-
|
| 13 |
NUT HEX CAP |
90443107000 |
|
| 14 |
NUT FLANGE 8MM |
9405008000 |
|
| 15 |
NUT FLANGE10MM |
9405010000 |
|
| 16 |
BAND B2,WIRE |
9501462200 |
-
|
| 17 |
BOLT FLANGE 6X10 |
957010601000 |
|
| 18 |
BOLT,FLANGE 8X70 |
958010807000 |
-
|
| 19 |
BOLT FLANGE 8X85 |
958010808500 |
|
