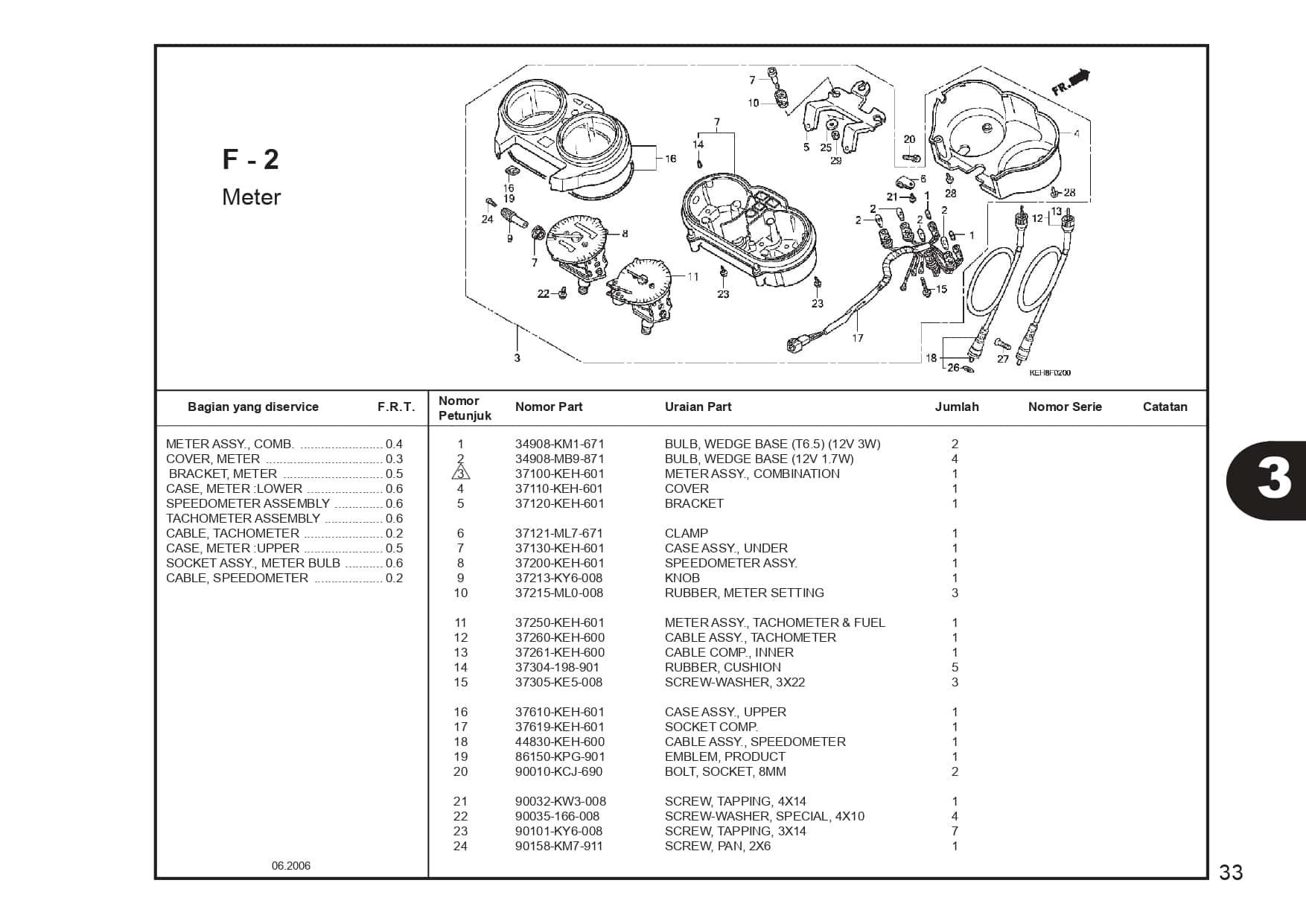

F-2 Meter – Katalog Suku Cadang Honda Mega Pro KEH

#	Informasi Produk	Visual
1	BULB W BASE (T10) Part Number : `34908KM1671`
2	BULB W BASE Part Number : `34908MB9871`
3	SPEEDOMETER ASSY Part Number : `37100KEH601`
4	COVER Part Number : `37110KEH601`
5	BRACKET Part Number : `37120KEH601`
6	CLAMP Part Number : `37121ML7671`
7	CASE ASSY UNDER Part Number : `37130KEH950`
8	SPEEDOMETER ASSY Part Number : `37200KEH600`
9	KNOB Part Number : `37213KY6008`
10	RUBBER METER SETTING Part Number : `37215ML0008`
11	TACHOMETER Part Number : `37250KEH601`
12	CABLE ASSY TACHOMETER Part Number : `37260KEH600`
13	37261KEH600 Part Number : `37261KEH600`
14	RUBBER,CUSHION Part Number : `37304198901`
15	SCREW WASHER (3X22) Part Number : `37305KE5008`
16	CASE ASSY UPPER Part Number : `37610KEH950`
17	SOCKET COMP Part Number : `37619KEH600`
18	CABLE ASSY SPEDOMETER Part Number : `44830KEH600`
18	Cable Speedomtr Part Number : `44830KEH930`
19	EMBLEM, WING MARK Part Number : `86150KPG901`
20	BOLT,SOCKET 8MM Part Number : `90010KCJ690`
21	90032KW3008 Part Number : `90032KW3008`
22	SCREW WASHER (4X10) Part Number : `90035166008`
23	SCREW TAPPING (3X14) Part Number : `90101KY6008`
24	SCREW,TRIP K 2X6 Part Number : `90158KM7911`
25	WASHER B (L) Part Number : `90525030000`
26	O-RING 9MM Part Number : `91352671003`
26	O-RING 9MM Part Number : `91352671004`
27	SCREW OVAL 5X25 Part Number : `93700050250A`
28	SCREW TAPPING (3X12) Part Number : `9390322380`
29	NUT HEX 6MM Part Number : `94001060000S`
