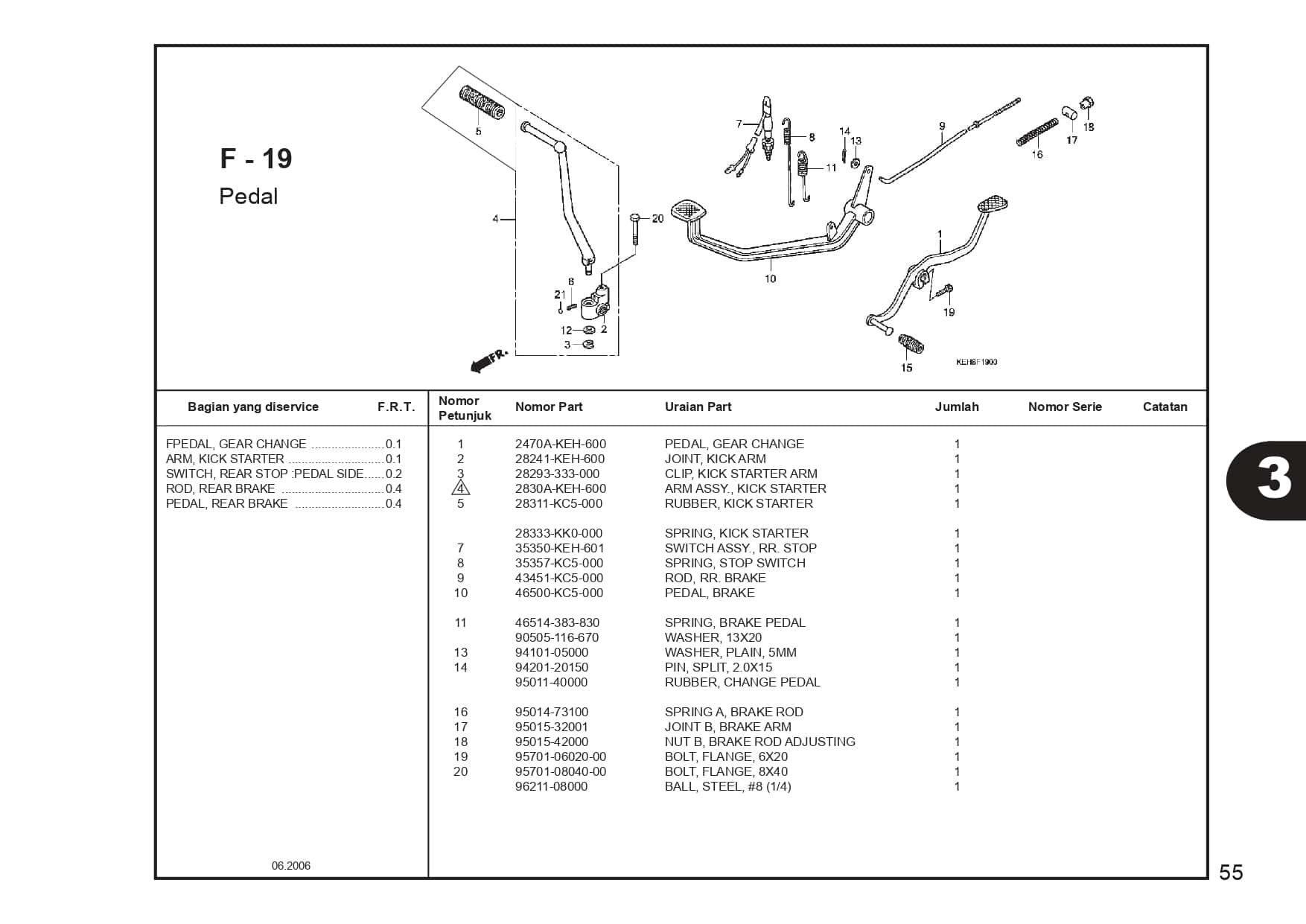

F-19 Pedal – Katalog Suku Cadang Honda Mega Pro KEH

#	Informasi Produk	Visual
1	2470AKEH600 Part Number : `2470AKEH600`
2	28241KEH600 Part Number : `28241KEH600`
3	CLIP KICK STARTER Part Number : `28293333000`
4	2830AKEH600 Part Number : `2830AKEH600`
5	RUBBER KICK START Part Number : `28311KC5000`
6	SPRING,KICK START LBL Part Number : `28333KK0000`
7	SWITCH ASSY RR STOP Part Number : `35350KEH601`
8	SPRING SWITCH Part Number : `35357KC5000`
9	43451KC5000 Part Number : `43451KC5000`
10	PEDAL BRAKE Part Number : `46500KC5000`
11	SPRING BRAKE PEDAL Part Number : `46514383830`
12	WASHER,13X20 Part Number : `90505116670`
13	WASHER PLAIN /K5 Part Number : `9410105000`
14	PIN COTTER 2.0X15 Part Number : `9420120150`
15	RUBBER PEDAL Part Number : `9501140000`
16	SPRING A BRAKEROD Part Number : `9501473100`
17	JOINT BRAKE ARM Part Number : `9501532001`
18	NUT ADJUST Part Number : `9501542000`
19	BOLT FLANGE 6X20 Part Number : `957010602000`
20	BOLT FLANGE 8X40 Part Number : `957010804000`
21	BALL,STEEL 8 Part Number : `9621108000`
