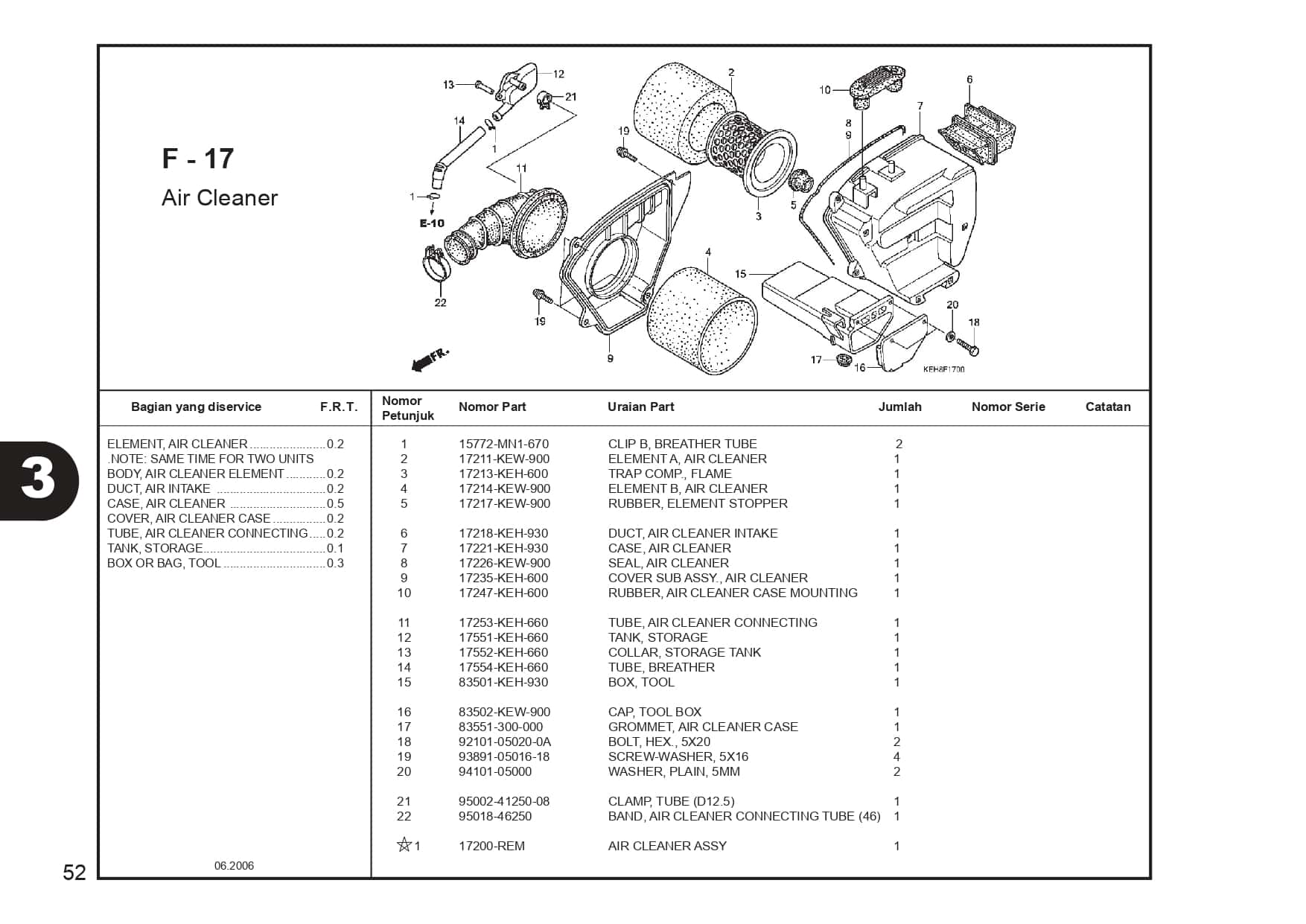

F-17 Air Cleaner – Katalog Suku Cadang Honda Mega Pro KEH

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CLIP B BREATHER TUBE 15772MN1670 CLIP B BREATHER TUBE
2 ELEMENT CLEANER 17211KEW900 ELEMENT CLEANER
3 17213KEH600 17213KEH600 -
4 ELEMENT B CLEANER 17214KEW900 -
5 RUBBER ELEMENT STOPPER 17217KEW900 -
6 DUCT A/C IN 17218KEH930 -
7 CASE A/C 17221KEH930 -
8 17226KEW900 17226KEW900 -
9 17235KEH600 17235KEH600 -
10 17247KEH600 17247KEH600 -
11 TUBE A/C CONN 17253KEH660 -
12 TANK STORAGE 17551KEH660 -
13 COLLAR STORAGE TANK 17552KEH660 -
14 TUBE BREATHER 17554KEH660 -
15 BOX TOOL 83501KEH930 -
16 CAP TOOL BOX 83502KEW900 -
17 CASE GROMMET 83551300000 CASE GROMMET
18 BOLT HEX 5X20 92101050200A BOLT HEX 5X20
19 938910501618 938910501618 -
20 WASHER PLAIN /K5 9410105000 WASHER PLAIN /K5
21 CLAMP, TUBE(D12.5) 950024125008 -
22 BAND A/C 9501846250 -
23 17200REM 17200REM -
