F-12-1 Rear Wheel 2 In – Katalog Suku Cadang Honda Mega Pro KEH

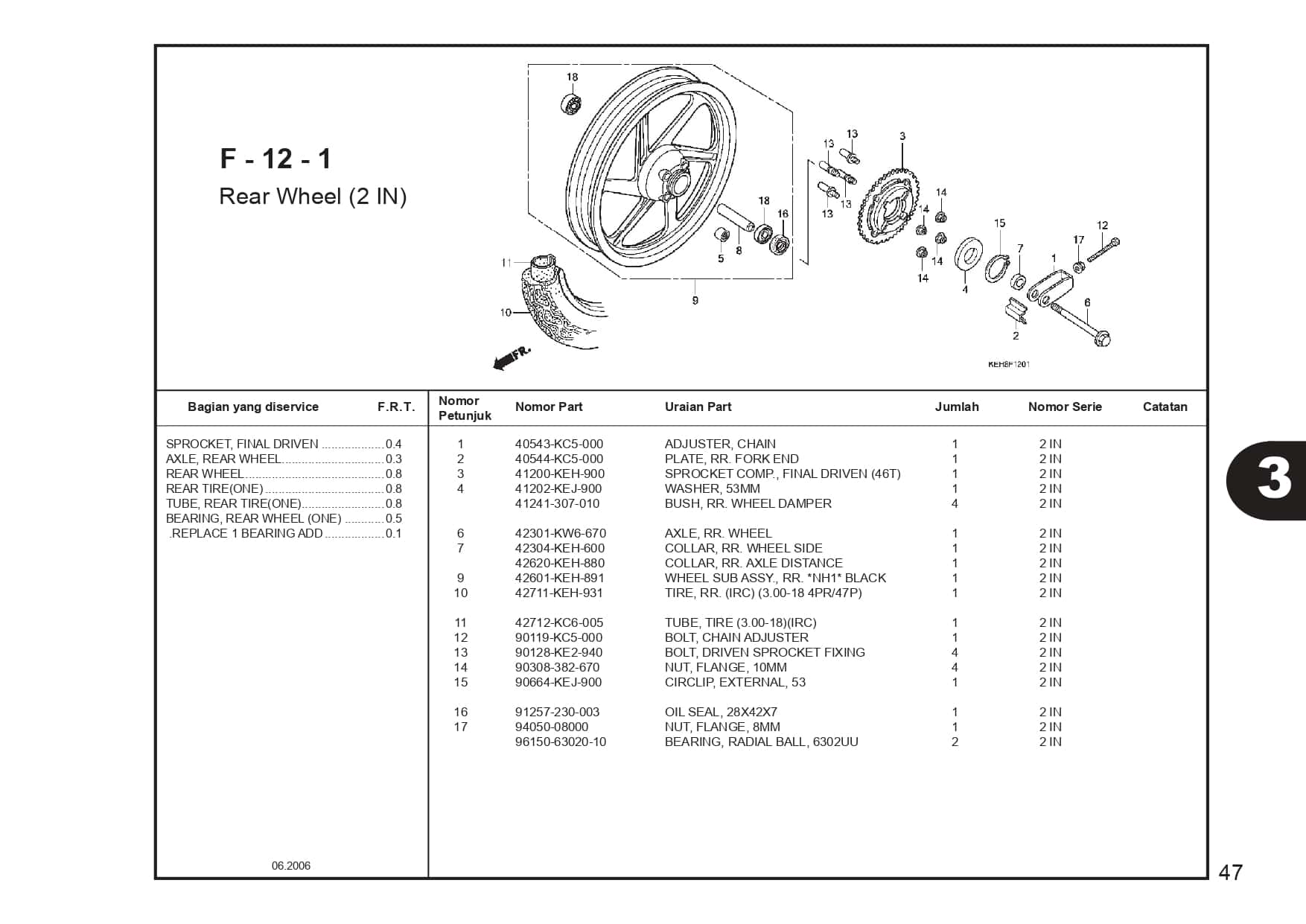

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 ADJUSTER CHAIN 40543KC5000 ADJUSTER CHAIN
2 PLATER R FORK END 40544KC5000 -
3 SPROCKET DRIVEN 41200KEH900 SPROCKET DRIVEN
4 WASHER 53MM 41202KEJ900 -
5 Damper, RR Wheel Set 41241307012 Damper, RR Wheel Set
6 AXLE RR WHEEL 42301KW6670 -
7 42304KEH600 42304KEH600 -
8 COLLAR RR. AXLE 42620KEH880 COLLAR RR. AXLE
9 CAST, WHEEL RR (BLK) 42601KEH891 -
10 42711KEH931 42711KEH931 -
11 TUBE TIRE (3.00-18) 42712KC6005 TUBE TIRE (3.00-18)
12 90119KC5000 90119KC5000 -
13 BOLT SPROCKET FIX 90128KE2940 -
14 NUT,FLANGE /K5 90308382670 -
15 CIRCLIP EX 53 90664KEJ900 -
16 OIL SEAL, 28X42X7 91257230003 OIL SEAL, 28X42X7
17 NUT FLANGE 8MM 9405008000 NUT FLANGE 8MM
18 BRG RAD 91051KGA901 BRG RAD
