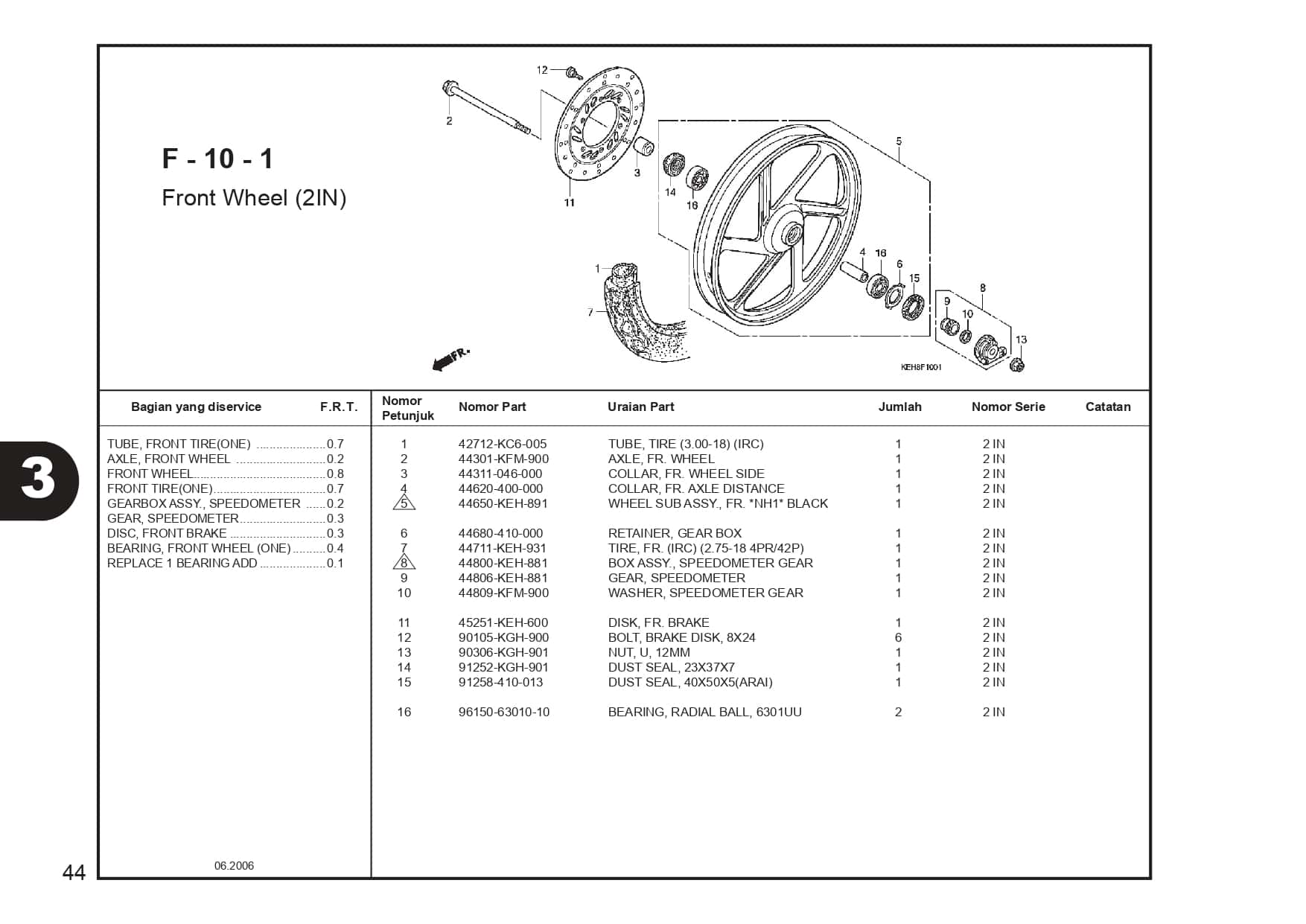

F-10-1 Front Wheel 2 In – Katalog Suku Cadang Honda Mega Pro KEH

#	Informasi Produk	Visual
1	TUBE TIRE (3.00-18) Part Number : `42712KC6005`
2	44301KFM900 Part Number : `44301KFM900`
3	COLLAR FR WHEEL Part Number : `44311046000`
4	COLLAR FR AXLE DISTANCE Part Number : `44620400000`
5	44650KEH891 Part Number : `44650KEH891`
6	RETAINER GEAR BOX Part Number : `44680410000`
7	44711KEH931 Part Number : `44711KEH931`
8	BOX SPEEDOMETER GEAR Part Number : `44800KEH880`
9	GEAR SPEEDOMETER Part Number : `44806KEH881`
10	WASHER,SPDMT GEAR Part Number : `44809KFM900`
11	DISK FR BRAKE Part Number : `45251KEH600`
12	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
13	NUT,U,12MM Part Number : `90306KGH901`
14	DUST SEAL, 23X37X7 Part Number : `91252KGH902`
15	DUST,SEAL 40X50X5 Part Number : `91258410014`
16	BEARING BALL Part Number : `HB6301RS`
