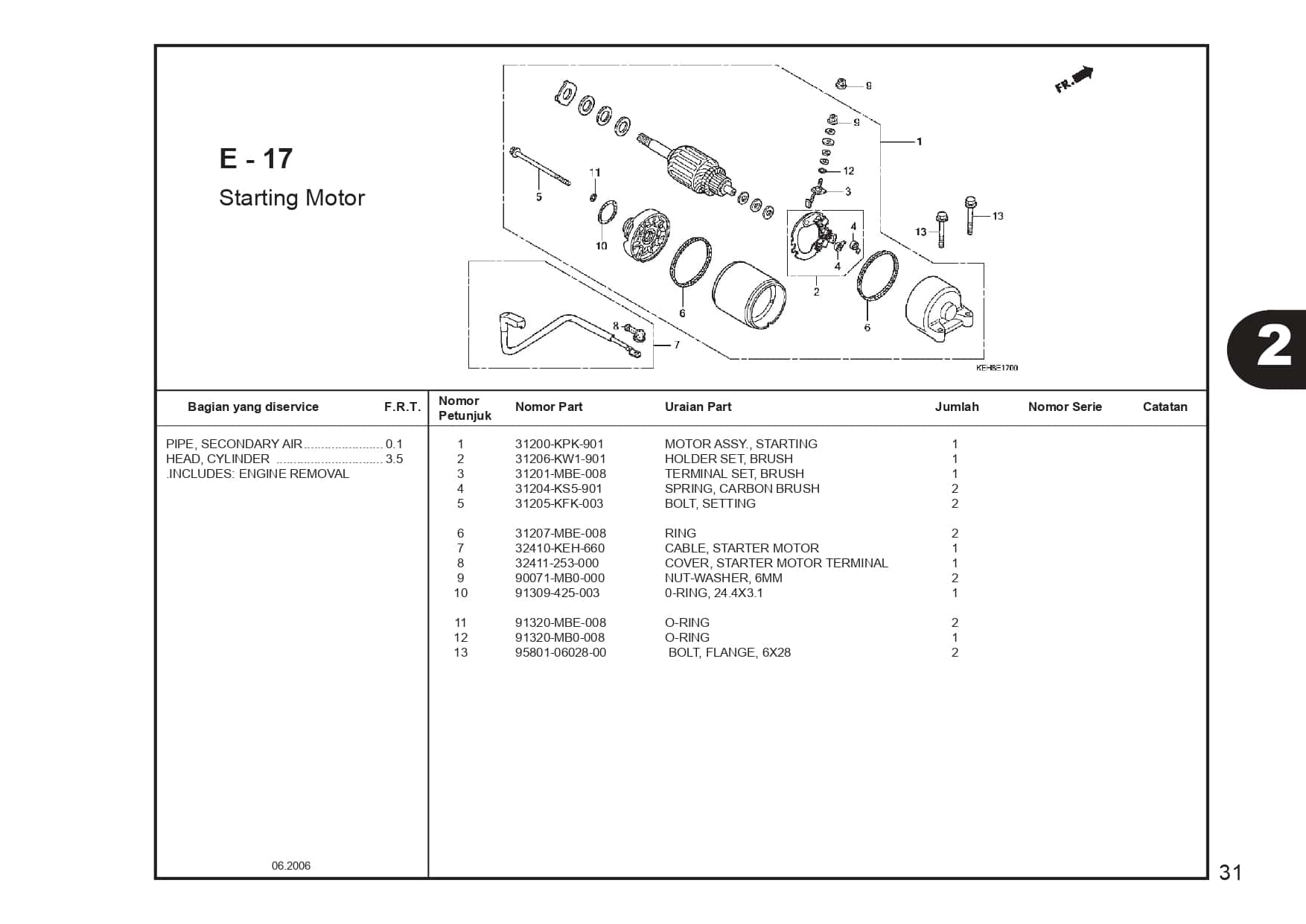

E-17 Starting Motor – Katalog Suku Cadang Honda Mega Pro KEH

#	Informasi Produk	Visual
1	MOTOR ASSY STARTER Part Number : `31200KPK902`
2	HOLDER,SET BRUSH Part Number : `31206KW1901`
3	BRUSH TERMINAL SET Part Number : `31201MBE008`
4	SPRING,CARBON BUSH Part Number : `31204KS5901`
5	31205KFK003 Part Number : `31205KFK003`
6	RING Part Number : `31207MBE008`
7	CABLE STARTER MOTOR Part Number : `32410KEH660`
8	COVER STARTING MOTOR Part Number : `32411253000`
9	NUT-WASHER 6MM Part Number : `90071MB0000`
10	O-RING,24.4X3.1 Part Number : `91309425003`
11	91320MBE008 Part Number : `91320MBE008`
12	O RING Part Number : `91320MB0008`
13	BOLT FLANGE 6X28 Part Number : `958010602800`
