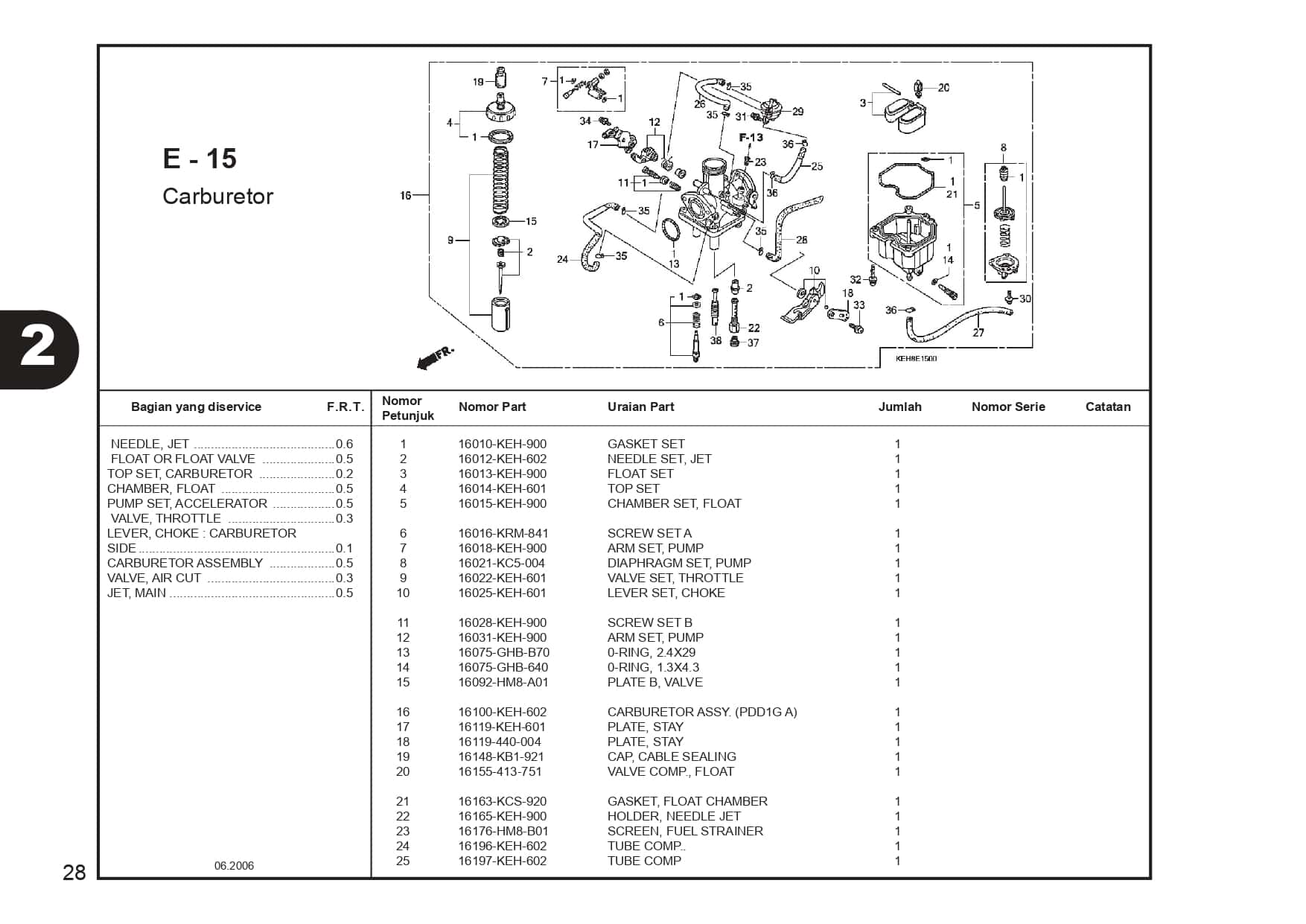

E-15 Carburetor – Katalog Suku Cadang Honda Mega Pro KEH
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET SET |
16010KEH900 |
-
|
| 2 |
16012KEH602 |
16012KEH602 |
-
|
| 3 |
FLOAT SET LBL |
16013KEH900 |
-
|
| 4 |
16014KEH601 |
16014KEH601 |
-
|
| 5 |
16015KEH900 |
16015KEH900 |
-
|
| 6 |
SCREW SET A LBL |
16016KRM841 |
-
|
| 7 |
16018KEH900 |
16018KEH900 |
-
|
| 8 |
16021KC5004 |
16021KC5004 |
-
|
| 9 |
16022KEH601 |
16022KEH601 |
-
|
| 10 |
16025KEH601 |
16025KEH601 |
-
|
| 11 |
16028KEH900 |
16028KEH900 |
-
|
| 12 |
16031KEH900 |
16031KEH900 |
-
|
| 13 |
16075GHBB70 |
16075GHBB70 |
-
|
| 14 |
O-RING,1.3X4.3 |
16075GHB640 |
|
| 15 |
16092HM8A01 |
16092HM8A01 |
-
|
| 16 |
16100KEH602 |
16100KEH602 |
-
|
| 17 |
16119KEH601 |
16119KEH601 |
-
|
| 18 |
PLATE,STAY |
16119440004 |
-
|
| 19 |
16148KB1921 |
16148KB1921 |
-
|
| 20 |
VALVE COMP,FLOAT LBL |
16155413751 |
-
|
| 21 |
16163KCS920 |
16163KCS920 |
-
|
| 22 |
HOLDER,NEEDLE JET |
16165KEH900 |
-
|
| 23 |
16176HM8B01 |
16176HM8B01 |
-
|
| 24 |
16196KEH602 |
16196KEH602 |
-
|
| 25 |
16197KEH602 |
16197KEH602 |
-
|
| 26 |
16198KEH602 |
16198KEH602 |
-
|
| 27 |
16199KEH601 |
16199KEH601 |
-
|
| 28 |
16199KEH900 |
16199KEH900 |
-
|
| 29 |
16510KEH601 |
16510KEH601 |
-
|
| 30 |
938920401218 |
938920401218 |
-
|
| 31 |
SCREW - WASH, 4X4 |
938920401418 |
-
|
| 32 |
938920401618 |
938920401618 |
-
|
| 33 |
SCREW WASHER 5X12 |
938920501218 |
|
| 34 |
SCREW WASHER 5X14 |
938920501418 |
-
|
| 35 |
CLIP B8,TUBE |
9500202089 |
|
| 36 |
CLIP,TUBE |
9500202659 |
|
| 37 |
JET,MAIN 105 LBL |
99101GHB1050 |
-
|
| 38 |
99103KPT0380 |
99103KPT0380 |
-
|
