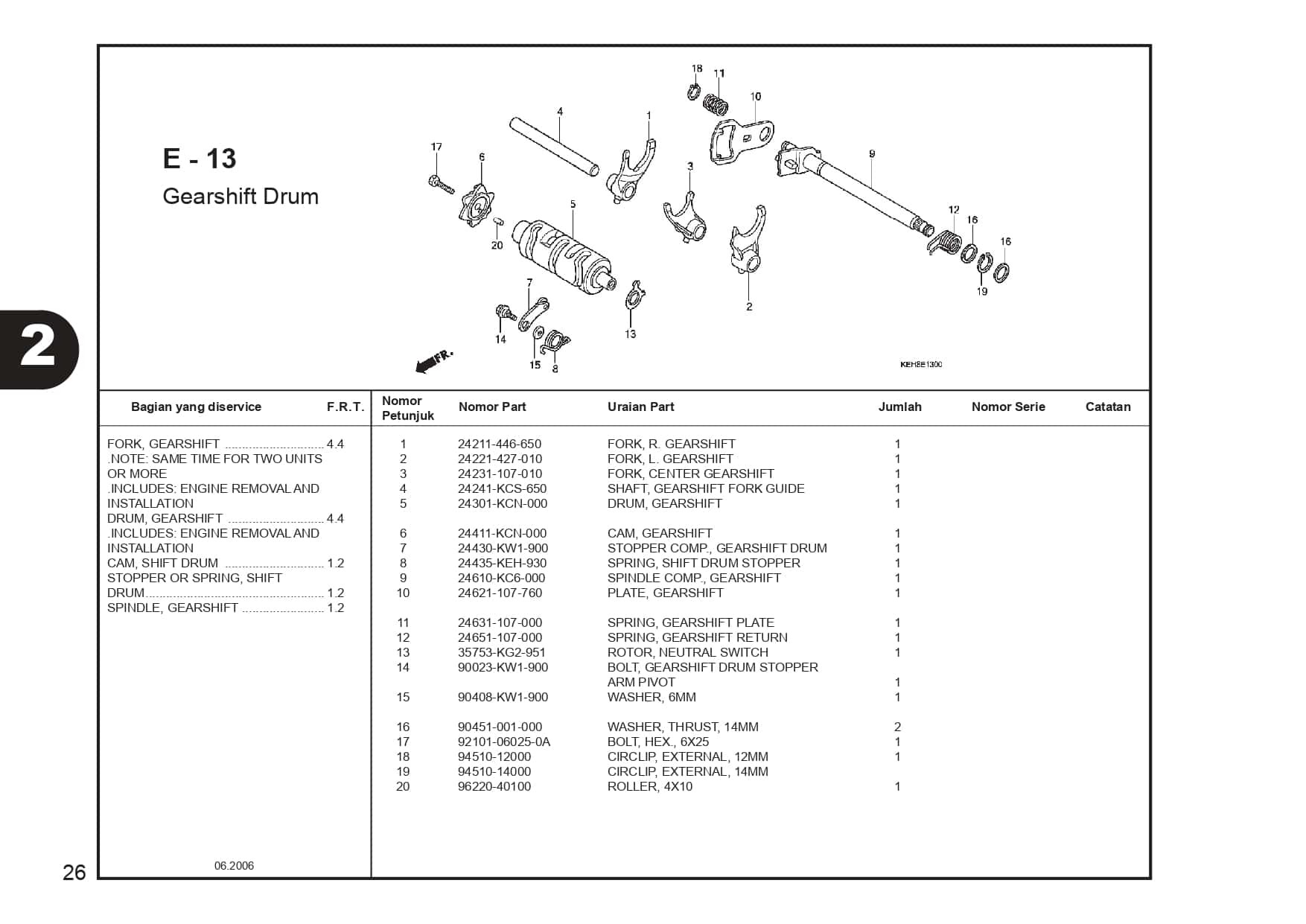

E-13 Gearshift Drum – Katalog Suku Cadang Honda Mega Pro KEH

#	Informasi Produk	Visual
1	FORK,R GEAR SHIFT Part Number : `24211446650`
2	FORK,L GEAR SHIFT Part Number : `24221427010`
3	FORK,CENTER GEAR Part Number : `24231107010`
4	SHAFT GEAR SHIFT Part Number : `24241KCS650`
5	DRUM,GEAR SHIFT Part Number : `24301KCN000`
6	CAM,GEAR SHIFT Part Number : `24411KCN000`
7	STOPPER COMP,GEAR Part Number : `24430KW1900`
8	SPRING SHIFT DRUM STOPPER Part Number : `24435KEH930`
9	SPINDLE,GEARSHIFT Part Number : `24610KC6000`
10	PLATE,GEAR SHIFT Part Number : `24621107760`
11	SPRING,PLATE Part Number : `24631107000`
12	SPRING,GEAR SHIFT LBL Part Number : `24651107000`
13	SWITCH ROTOR NEUTRAL Part Number : `35753KG2951`
14	PIVOT,GEAR SHIFT Part Number : `90023KW1900`
15	WASHER 6MM Part Number : `90408KW1901`
16	WASHER,THRUST Part Number : `90451001000`
17	BOLT HEX 6X25 Part Number : `92101060250A`
18	CIRCLIP,EXT 12MM Part Number : `9451012000`
19	CIRCLIP,14MM Part Number : `9451014000`
20	ROLLER,4X10 Part Number : `9622040100`
