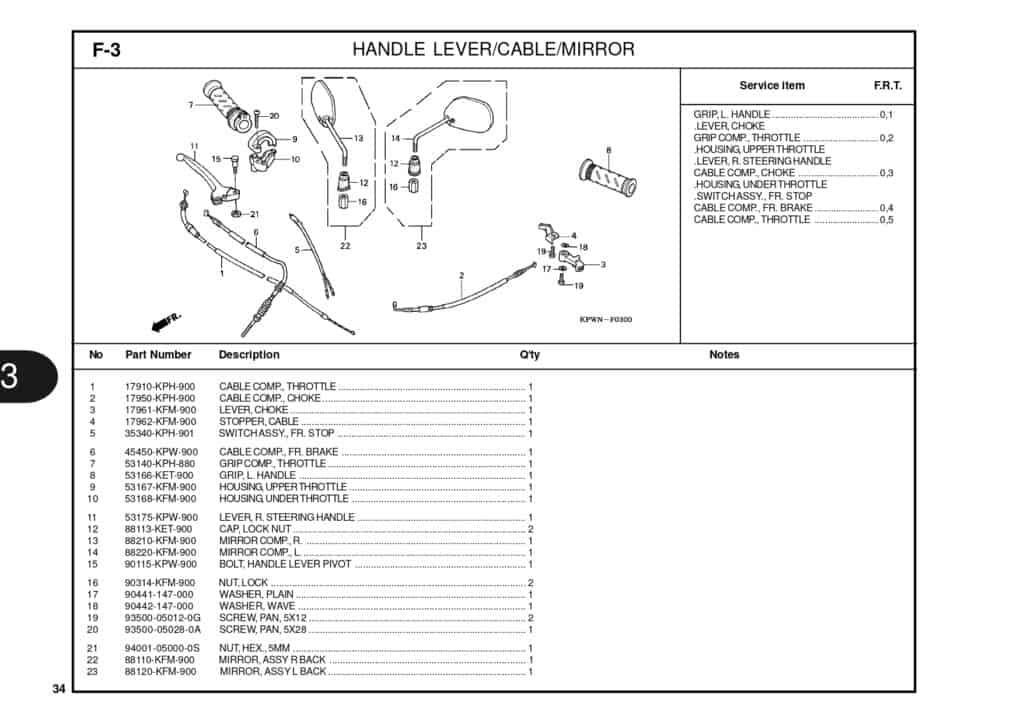

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP,THROTT | 17910KPH900 |
|
| 2 | CABLE COMP,CHOKE | 17950KPH900 |
|
| 3 | LEVER CHOKE | 17961KFM900 |
|
| 4 | 17962KFM900 | 17962KFM900 |
|
| 5 | SWITCH ASSY., FR. STOP | 35340GZ9003 |
|
| 6 | CABLE COMP,FR BRK | 45450KPH671 |
|
| 7 | Grip Comp Throt | 53140KVBT00 |
|
| 8 | GRIP L HDL | 53166KET900 |
|
| 9 | HOUSING UP THROT | 53167KFM900 |
|
| 10 | HOUSING UND THROT | 53168KFM900 |
|
| 11 | LEVER R STRG HDL | 53175KPW900 | - |
| 12 | CAP LOCK NUT | 88113KET900 | - |
| 13 | 88210KFM900 | 88210KFM900 | - |
| 14 | 88220KFM900 | 88220KFM900 | - |
| 15 | 90115KPW900 | 90115KPW900 | - |
| 16 | 90314KFM900 | 90314KFM900 | - |
| 17 | WASHER PLAIN | 90441147000 |
|
| 18 | WASHER WAVE | 90442147000 |
|
| 19 | SCREW PAN 5X12 | 93500050120G |
|
| 20 | SCREW,PAN 5X28 | 93500050280A | - |
| 21 | NUT,HEX 5MM | 94001050000S | - |
| 22 | MIRROR ASSY R BACK | 88110KFM900 | - |
| 23 | 88120KFM900 | 88120KFM900 | - |
