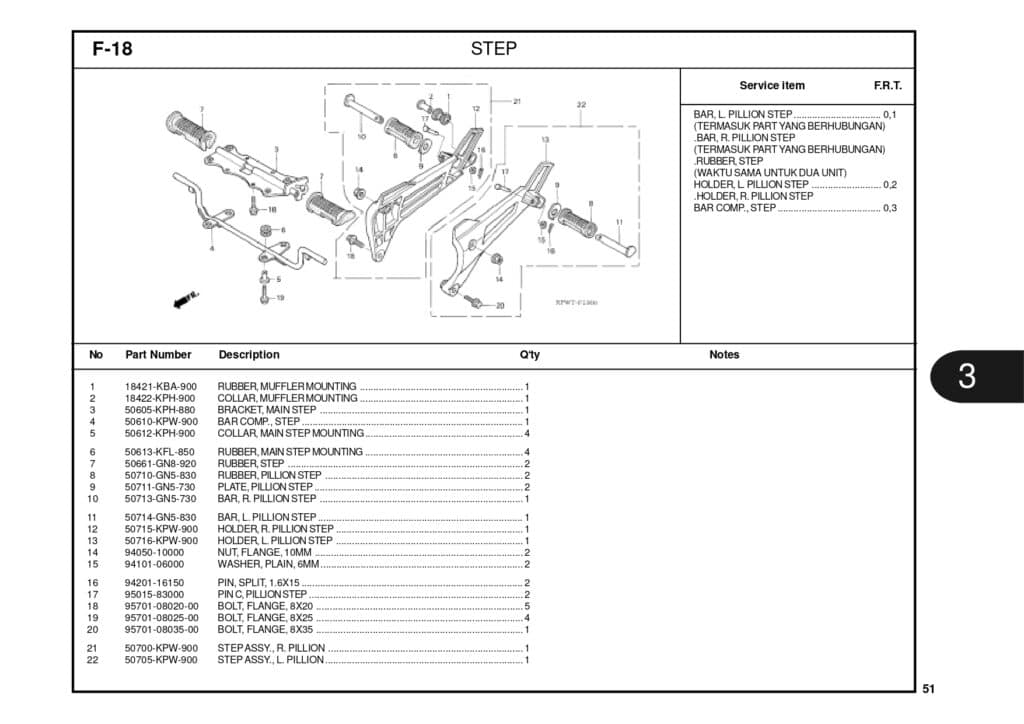

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER MUFF.MOUNT | 18421KBA900 | - |
| 2 | COLLAR MUFFLER MOUN | 18422KPH900 |
|
| 3 | BRACKET MAIN STEP | 50605KPH880 | - |
| 4 | 50610KPW900 | 50610KPW900 | - |
| 5 | COLLAR MAIN STEP MOUNT | 50612KPH900 | - |
| 6 | RUBBER MAIN STEP MOUNT | 50613KFL850 |
|
| 7 | RUBBER STEP | 50661GN8920 |
|
| 8 | RUBBER PILLION | 50710GN5830 |
|
| 9 | PLATE PILLION STEP | 50711GN5730 |
|
| 10 | 50713GN5730 | 50713GN5730 | - |
| 11 | BAR L PILLION STEP | 50714GN5830 | - |
| 12 | 50715KPW900 | 50715KPW900 | - |
| 13 | 50716KPW900 | 50716KPW900 | - |
| 14 | NUT FLANGE10MM | 9405010000 |
|
| 15 | WASHER PLAIN 6MM | 9410106000 |
|
| 16 | PIN COTTER 16X15 | 9420116150 |
|
| 17 | PIN C PILL STEP | 9501583000 |
|
| 18 | BOLT FLANGE 8X20 | 957010802000 |
|
| 19 | BOLT FLANGE 8X25 | 957010802500 |
|
| 20 | BOLT,FLANGE 8X35 | 957010803500 |
|
| 21 | STEP ASSY R PILLION | 50700KPW900 | - |
| 22 | STEP ASSY L PILLION | 50705KPW900 | - |
