E-18 Carburetor – Katalog Suku Cadang Honda Kirana

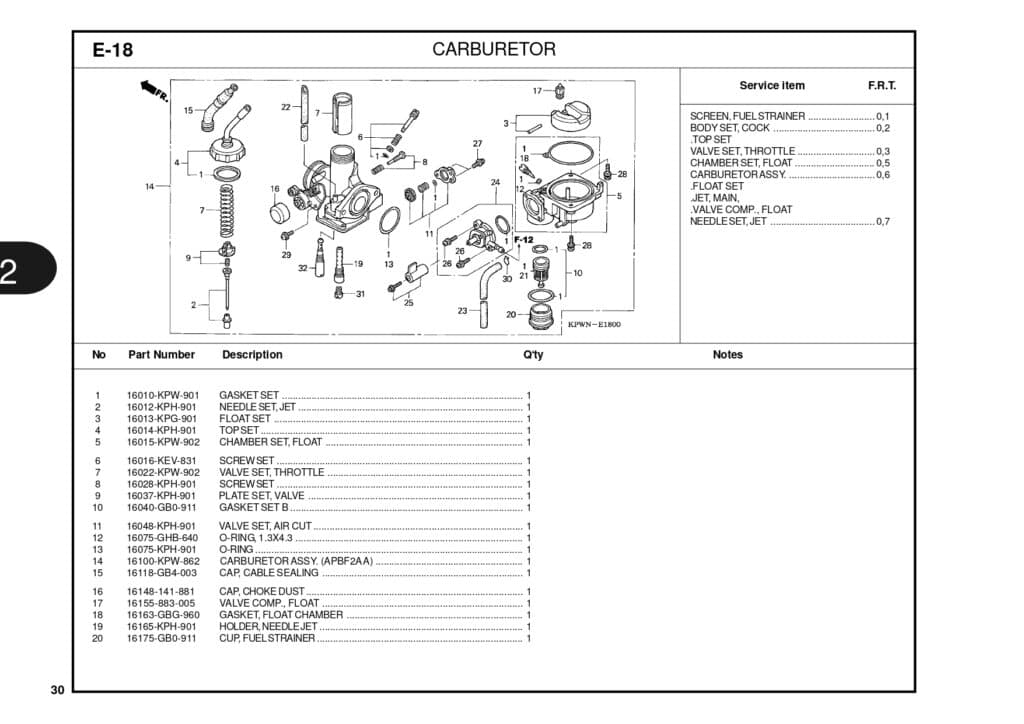

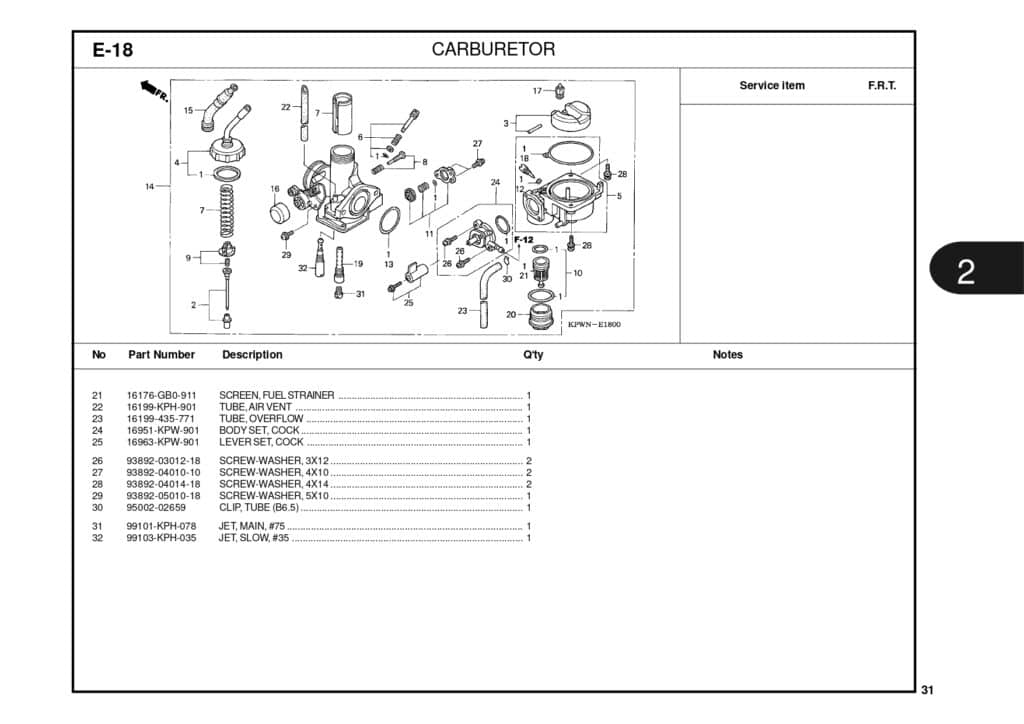

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 16010KPW901 16010KPW901 -
2 NEEDLE SET, JET 16012KPH901 -
3 FLOAT SET 16013KPG901 FLOAT SET
4 16014KPH901 16014KPH901 -
5 16015KPW902 16015KPW902 -
6 SCREW SET 16016GAHA00 -
7 16022KPW902 16022KPW902 -
8 SCREW SET 16028KPH901 -
9 PLATE SET, VALVE 16037KPH901 PLATE SET, VALVE
10 GASKET SET B LBL 16040GB0911 GASKET SET B LBL
11 VALVE SET, AIR CUT 16048KPH901 VALVE SET, AIR CUT
12 O-RING,1.3X4.3 16075GHB640 O-RING,1.3X4.3
13 16075KPH901 16075KPH901 -
14 16100KPW862 16100KPW862 -
15 CAP,RUBBER 16118GB4003 -
16 CAP,DUST 16148141881 CAP,DUST
17 VALVE COMP,FLOAT LBL 16155883005 VALVE COMP,FLOAT LBL
18 GASKET FLOAT CHAMBER 16163GBG960 -
19 HOLDER, NEEDLE JET 16165KPH901 -
20 CUP,FUEL STAINER 16175GB0911 CUP,FUEL STAINER
21 CUP,FILTER 16176GB0911 CUP,FILTER
22 TUBE, AIRVENT 16199KPH901 -
23 TUBE 16199435771 -
24 16951KPW901 16951KPW901 -
25 LEVER,COCK 16963KPW901 -
26 93892030121H 938920301218 -
27 SCREW - WASH., 4X10 938920401010 -
28 SCREW - WASH, 4X4 938920401418 -
29 938920501008 938920501018 -
30 CLIP,TUBE 9500202659 CLIP,TUBE
31 99101KPH078 99101KPH078 -
32 99103KPH0350 99103KPH035 -
