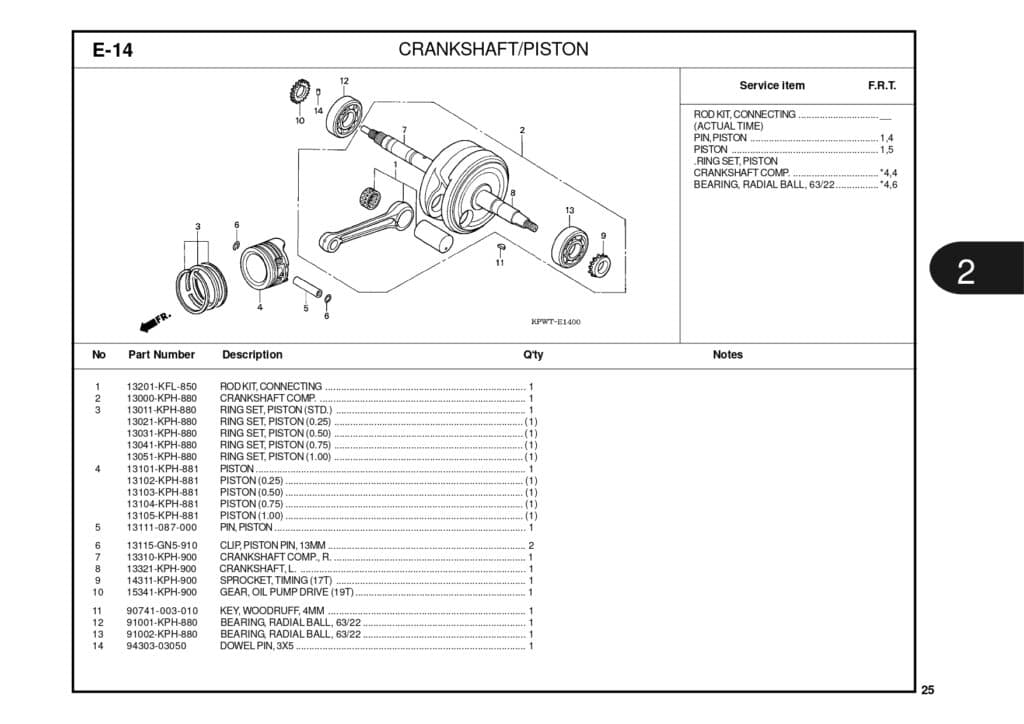

E-14 Crankshaft Piston – Katalog Suku Cadang Honda Kirana

#	Informasi Produk	Visual
1	ROD KIT CONNECTING Part Number : `06381KPH900`
2	CRANKSHAFT SUB ASSY Part Number : `1300AKPH880`
3	RING SET, PISTON (STD) Part Number : `13011KPH881`
3	RING SET, PISTON (0.25) Part Number : `13012KPH881`
3	RING SET, PISTON (0.50) Part Number : `13013KPH881`
3	RING SET, PISTON (0.75) Part Number : `13014KPH881`
3	RING SET, PISTON (1.00) Part Number : `13015KPH881`
4	PISTON STD Part Number : `13101KPH881`
4	PISTON (0.25) Part Number : `13102KPH881`
4	PISTON (0.50) Part Number : `13103KPH881`
4	PISTON (0.75) Part Number : `13104KPH881`
4	PISTON (1.00) Part Number : `13105KPH881`
5	PIN PISTON Part Number : `13111087001`
6	CLIP, PISTON PIN, 13MM Part Number : `13115GN5910`
7	13310KPH900 Part Number : `13310KPH900`
8	13321KPH900 Part Number : `13321KPH900`
9	SPROCKET TIMING Part Number : `14311KPH900`
10	GEAR, OIL PUMP DRIVE Part Number : `15341KPH900`
11	KEYWOODRUFF 4MM Part Number : `90741003010`
12	Bearing 6322 Part Number : `AHB6322`
13	Bearing 6322 Part Number : `AHB6322`
14	PIN DOWEL,3X5 Part Number : `9430303050`
