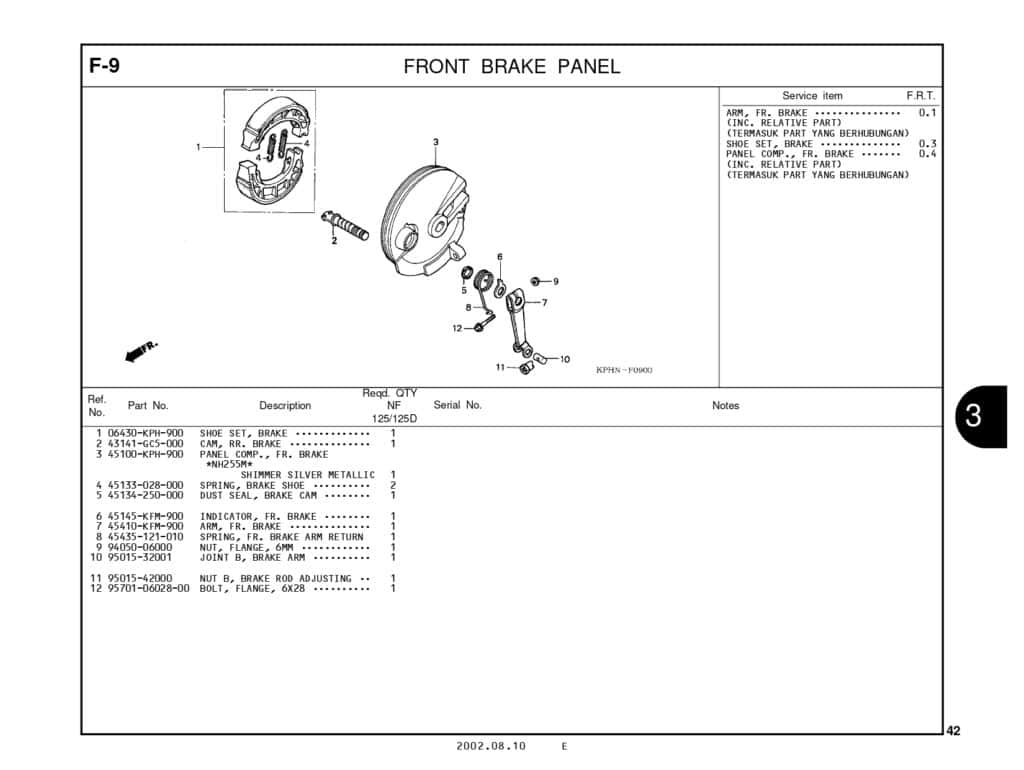

F-9 Front Brake Panel – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	SHOE SET BRAKE Part Number : `06430KPH900`
1	SHOE SET BRAKE Part Number : `43125KPH903`
2	CAM REAR BRAKE Part Number : `43141GC5000`
3	PANEL FR BRAKE Part Number : `45100KPH900`
4	SPRING BRAKE SHOE Part Number : `45133028000`
5	DUST SEAL,BRAKE Part Number : `45134250000`
6	INDICATOR FR BRK Part Number : `45145KFM900`
7	ARM FRONT BRAKE Part Number : `45410KFM900`
8	SPRING BRAKE ARM Part Number : `45435121010`
9	NUT,FLANGE 6MM Part Number : `9405006000`
10	JOINT BRAKE ARM Part Number : `9501532001`
11	NUT ADJUST Part Number : `9501542000`
12	BOLT FLANGE 6X28 Part Number : `957010602800`
