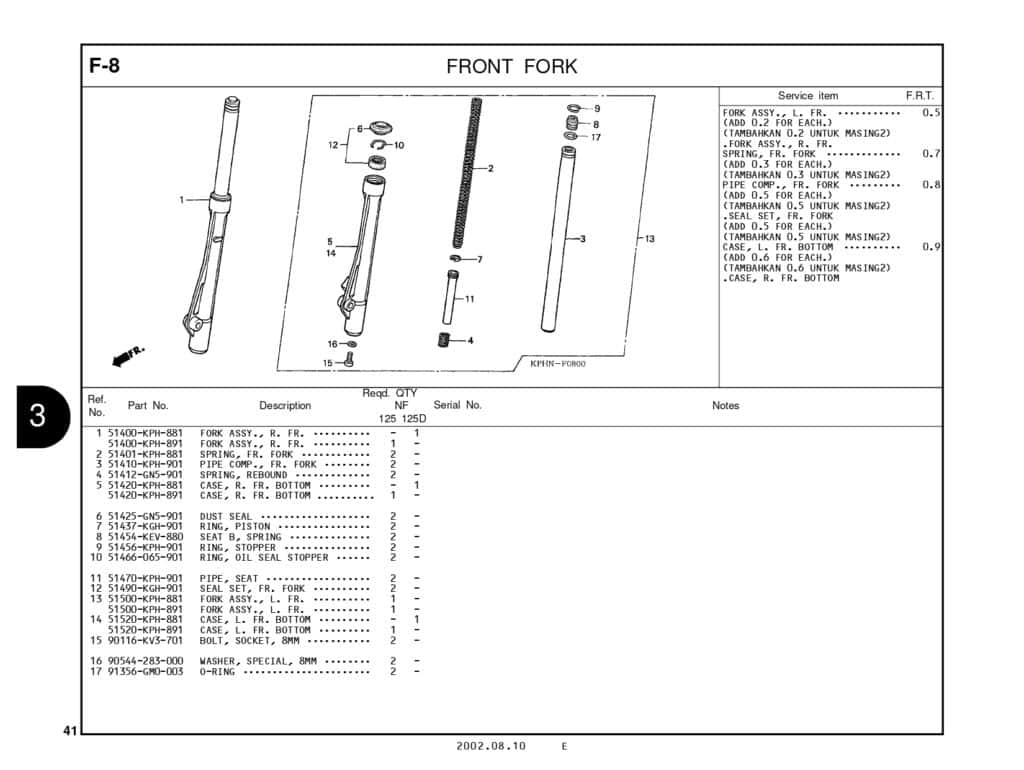

F-8 Front Fork – Katalog Suku Cadang Honda Karisma

#	Informasi Produk	Visual
1	FORK ASSY R FR Part Number : `51400KPH881`
1	FORK ASSY R FR Part Number : `51400KPH891`
1	FORK ASSY R FR Part Number : `51400KTM850ZA`
2	SPRING FR FORK Part Number : `51401KPH881`
3	PIPE COMP FR FORK Part Number : `51410KPH901`
4	SPG REBOUND Part Number : `51412GN5901`
5	CASE R FR BOTTOM Part Number : `51420KPH881`
5	CASE R FR BOTTOM Part Number : `51420KPH891`
6	DUST SEAL FR FORK Part Number : `51425GN5901`
7	RING,PISTON Part Number : `51437KGH901`
8	SEAT,SPRING UPPER Part Number : `51454KEV880`
9	RIMG,STOPPER Part Number : `51456KPH901`
10	RING OIL SEAL Part Number : `51466065901`
11	PIPE,SEAT Part Number : `51470KPH901`
12	SEAL SET FR FORK Part Number : `51490KGH901`
12	SEAL SET FR FORK Part Number : `51490KGH902`
13	FORK ASSY L FR Part Number : `51500KPH881`
13	FORK ASSY L FR Part Number : `51500KPH891`
13	FORK ASSY L FR Part Number : `51400KTM850ZA`
14	CASE L FR BOTTOM Part Number : `51520KPH881`
14	CASE L FR BOTTOM Part Number : `51520KPH891`
15	BOLT,SOCKET 8MM Part Number : `90116KV3701`
16	WASHER SPECIAL (8MM) Part Number : `90544283000`
17	O RING Part Number : `91356GM0003`
