F-31 Main Pipe Cover Leg Shield – Katalog Suku Cadang Honda Karisma

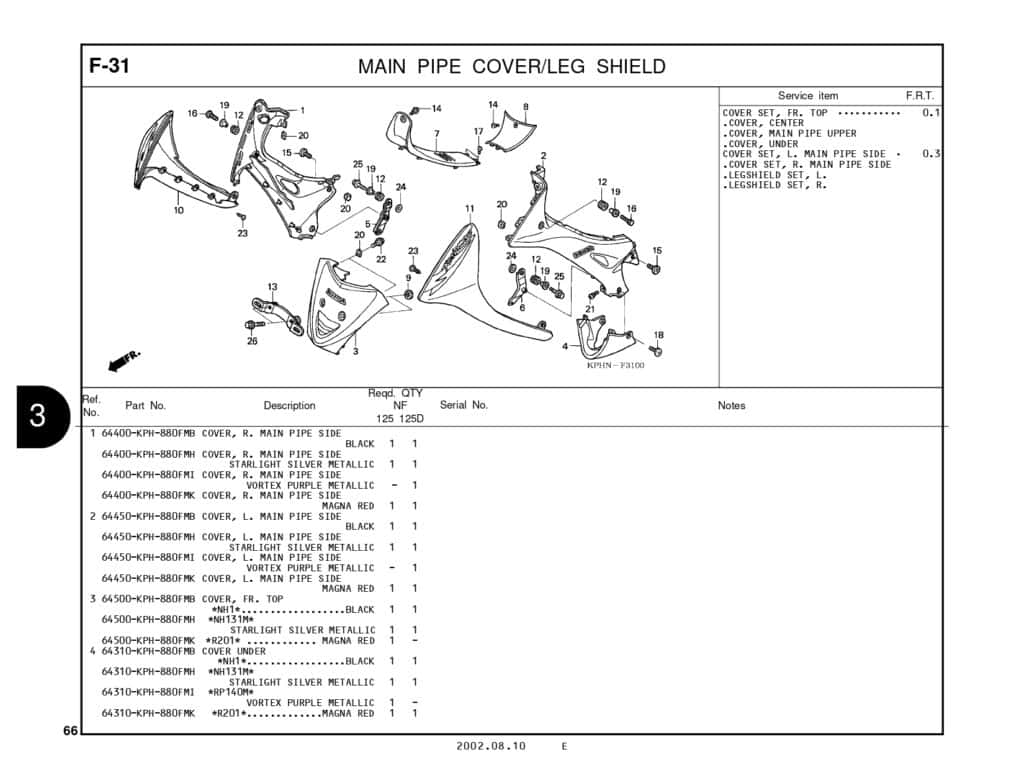

Gambar Bagian

Section Image Section Image

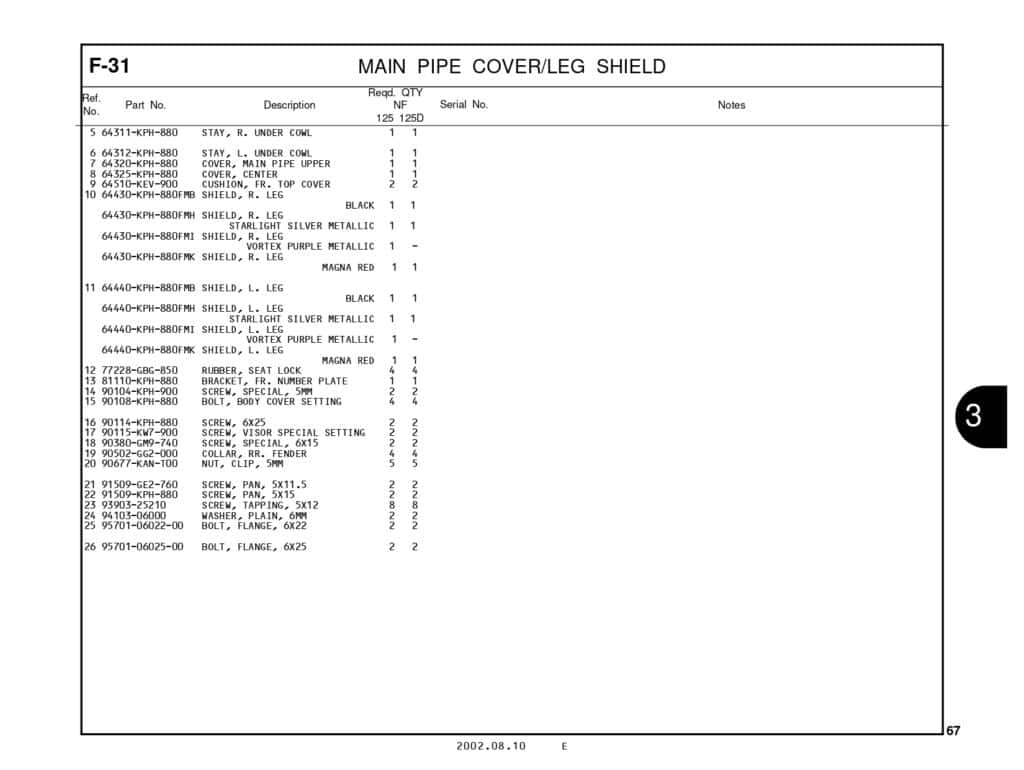

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 64400KPH880FMB 64400KPH880FMB -
1 COVER R M/P(SLV) 64400KPH880FMH -
1 64400KPH880FMI 64400KPH880FMI -
1 64400KPH880FMK 64400KPH880FMK -
2 64450KPH880FMB 64450KPH880FMB 64450KPH880FMB
2 COVER L M/P(SLV) 64450KPH880FMH -
2 64450KPH880FMI 64450KPH880FMI -
2 64450KPH880FMK 64450KPH880FMK 64450KPH880FMK
3 64500KPH880FMB 64500KPH880FMB 64500KPH880FMB
3 64500KPH880FMH 64500KPH880FMH -
3 64500KPH880FMK 64500KPH880FMK -
4 COVER UNDER(BLK) 64310KPH880FMB -
4 COVER UNDER(SLV) 64310KPH880FMH -
4 64310KPH880FMI 64310KPH880FMI -
4 64310KPH880FMK 64310KPH880FMK -
5 STAY R UNDER COWL 64311KPH880 -
6 STAY L UNDER COWL 64312KPH880 STAY L UNDER COWL
7 COVER M/P UPPER 64320KPH880 -
8 64325KPH880 64325KPH880 -
9 CUSHION FR TOP COVER 64510KEV900 -
10 64430KPH880FMB 64430KPH880FMB -
10 64430KPH880FMH 64430KPH880FMH -
10 64430KPH880FMI 64430KPH880FMI -
11 64440KPH880FMI 64440KPH880FMI -
11 SHIELD L LEG(BLK) 64440KPH880FMB -
11 SHIELD L LEG(SLV) 64440KPH880FMH -
11 64440KPH880FMI 64440KPH880FMI -
11 64440KPH880FMK 64440KPH880FMK -
12 RUBBER SEAT LOCK BAR 77228GBG850 RUBBER SEAT LOCK BAR
13 BRACKET 81110KPH880 -
14 SCREW, SPECIAL, 5MM 90104KPH900 SCREW, SPECIAL, 5MM
15 Bolt Body Cover Setting 90107K0JH10 Bolt Body Cover Setting
16 SCREW 6X25 90114KPH880 -
17 SCREW VISOR SPC. 90115KW7900 SCREW VISOR SPC.
18 SCREW SPECIAL 6X15 90380GM9740 -
19 COLLER RR FENDER 90502GG2000 COLLER RR FENDER
20 NUT CLIP 5MM. 90677KANT00 NUT CLIP 5MM.
21 SCREW PAN 5X11.5 91509GE2760 SCREW PAN 5X11.5
22 SCREW PAN 5 X 15 91509KPH880 -
23 SCREW TAPPING 5X12 9390325210 SCREW TAPPING 5X12
24 WASHER PLAIN 6MM 9410306000 WASHER PLAIN 6MM
25 BOLT FLANGE 6X22 957010602200 BOLT FLANGE 6X22
26 BOLT FLANGE 6X25 957010602500 BOLT FLANGE 6X25
